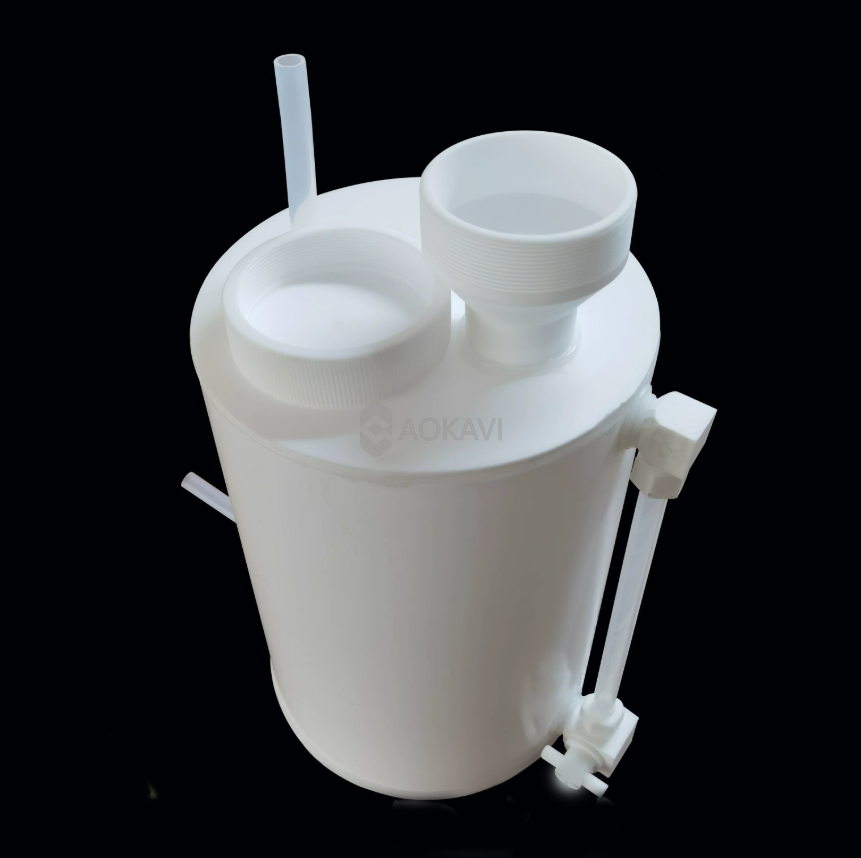

Custom OEM PTFE Welded Round Tank with Level Gauge: Applications and Selection of Acid/Alkali-Resistant F4 Containers

Introduction

In high-purity industries such as fine chemicals, pharmaceuticals, and semiconductors, storing strong acids, strong alkalis, and various corrosive chemical media places extremely stringent requirements on tank materials. When ordinary metal storage tanks are exposed to media such as hydrochloric acid, hydrofluoric acid, or concentrated sulfuric acid, they often suffer corrosion perforation within a few months. This not only causes material leakage but also creates serious safety hazards. Polytetrafluoroethylene (PTFE)—commonly known as the “King of Plastics”—has become an ideal choice for corrosive media storage tanks due to its outstanding chemical inertness and wide temperature range stability. This article focuses on the product characteristics of custom OEM PTFE welded round tanks equipped with level gauges and acid/alkali-resistant F4 containers, and systematically reviews their technical advantages and typical application scenarios.

1. PTFE Material: Why It Is the Preferred Choice for Highly Corrosive Conditions

PTFE is extremely chemically stable and resistant to almost all chemicals, including aqua regia and hydrofluoric acid. This property gives it an irreplaceable position in the field of corrosive media storage. Specifically, the core advantages of PTFE materials are reflected in the following aspects:

Excellent chemical corrosion resistance. PTFE shows outstanding resistance to strong acids, strong alkalis, organic solvents, and strong oxidizers. In highly corrosive media such as hydrochloric acid and hydrofluoric acid, which “attack metal on contact,” ordinary 316L stainless steel can suffer severe intergranular corrosion, while PTFE can remain in service for long periods without being attacked.

Wide temperature application range. PTFE can maintain stable physical and chemical properties within the temperature range of -200°C to +260°C, far superior to general engineering plastics. In high-temperature conditions above 150°C, PTFE is a fluoropolymer material that can withstand such conditions, giving it unique applicability in high-temperature, highly corrosive environments.

High purity and low leaching. PTFE is chemically inert and does not react with the stored medium. It can effectively protect fluid purity and prevent metal ions or organic substances from leaching out and contaminating the material. This characteristic is particularly critical for semiconductor-grade ultrapure chemicals and the storage of active pharmaceutical ingredients in the pharmaceutical industry. Chemical suppliers use PTFE resins to line tanks, containers, and returnable drums for storing and transporting ultrapure and corrosive chemical fluids.

Non-stick surface. The low surface energy of PTFE gives it excellent anti-adhesion properties, which can reduce material residue and scaling, simplify cleaning procedures, and lower the risk of cross-contamination.

2. Welding Process: The Core Step That Determines Tank Quality

The manufacturing process of custom PTFE welded round tanks directly affects their sealing performance and service life. At present, the mainstream manufacturing method in the industry is to form PTFE sheets through welding rather than simply relying on adhesive bonding.

In the manufacture of steel-lined PTFE storage tanks, after sodium treatment, PTFE sheets are firmly bonded to the inner surface of the steel shell with a special imported adhesive to ensure that the lining does not blister or debond. The sheets are joined by butt welding. After rod welding and strip/tape welding, the weld strength can reach more than 95% of the sheet strength, and spark testing at 20 kV shows no breakdown. For the welding of PTFE round tanks, PFA welding rods and welding tape are usually used for two-pass welding: first, a round PFA strip is used for welding, and second, a wide PFA welding tape is used to cover the weld, ensuring the sealing performance and structural strength of the weld.

It is worth noting that the welding between fluororesin linings can use self-propelled automatic welding machines for bottom surfaces and vertical surfaces, achieving uniform and stable welds. This is suitable for tank welding at heights below 10 m, while improving welding reliability and shortening the construction period.

For the OEM customization model involved in this product, manufacturers can usually fully customize the tank capacity, diameter, height, wall thickness, cover design, nozzle/port configuration, etc., according to 2D or 3D drawings provided by the customer. The build-to-drawing customization model enables the tank to precisely match the installation space and piping connection requirements of the actual working conditions.

3. Level Gauge Configuration: Accurate Monitoring Under Highly Corrosive Conditions

For PTFE containers storing strong acids and alkalis, level monitoring is a key part of ensuring safe production. However, corrosive media also pose a severe challenge to the level gauge itself.

Material selection principles. In corrosive acid/alkali liquid tanks, the wetted parts of the level gauge should preferably be made of PTFE. The antenna of a radar level gauge should be made of PTFE, and the housing and process connection are recommended to be 316L stainless steel or corrosion-resistant plastic. For magnetic flap level gauges, the wetted parts can be customized with a 316L stainless steel lined with PTFE solution, which can extend service life by more than three times.

Comparison of technical solutions. Currently, level monitoring solutions suitable for PTFE containers mainly include:

• Magnetic flap level gauge: made of PP or stainless steel lined with F4, F46, and other corrosion-resistant materials. It is especially suitable for measuring the level in liquid containers that corrode stainless steel. It features clear indication, safety, and reliability, and can be equipped with level alarm switches and remote transmitters.

• Anti-corrosion radar level gauge: the antenna is completely encapsulated in PTFE. Radar waves are transmitted and received through the PTFE antenna cover, enabling non-contact measurement and minimizing the risk of corrosion.

• Anti-corrosion tuning fork level switch: as an independent high-level alarm device, the fork body is tightly covered with a PTFE coating. It operates on the piezoelectric crystal vibration principle, has strong resistance to foam and interference, and provides reliable safety interlock signals in highly corrosive tanks.

When customizing a PTFE welded round tank, the selection of the level gauge should be considered in parallel with the tank design. The most suitable level gauge type and installation method should be determined according to the medium properties, temperature, pressure, and measurement accuracy requirements.

4. Typical Application Scenarios

Fine chemicals industry. This is the largest application field for PTFE containers. In the storage of highly corrosive media such as concentrated nitric acid, hydrochloric acid, hydrofluoric acid, and sodium hydroxide, PTFE containers ensure long-term safe operation. Steel-lined PTFE storage tanks are widely used in chlorination reactors, sodium hypochlorite storage tanks, rinsing alkali liquor storage tanks, phosphoric acid storage tanks, and other scenarios.

Pharmaceuticals and biopharmaceuticals. PTFE containers are used for the storage and transportation of active pharmaceutical ingredients and intermediates. Their chemical inertness ensures the stability and purity of drug components, which will not be contaminated by leaching from the container material. Related materials can also be provided with FDA or USP Class VI compliance documents.

Semiconductors and electronic chemicals. Semiconductor manufacturing requires large quantities of high-purity corrosive chemicals, such as deionized water and high-purity acids. PTFE-lined storage tanks can effectively prevent metal ion contamination in these applications and ensure the ultra-high purity of electronic chemicals.

Environmental protection and water treatment. PTFE tanks are also widely used in environmental engineering such as tail gas treatment, waste acid concentration, and wastewater treatment. Their corrosion resistance enables them to handle industrial waste liquids containing complex chemical components.

Electroplating and surface treatment. Electroplating bath solutions usually contain strong acids and heavy metal ions. The corrosion resistance and non-stick properties of PTFE containers make them an ideal choice for the storage and handling of plating solutions.

5. Customized Selection Recommendations

When customizing an OEM PTFE welded round tank, it is recommended to focus on the following factors:

1. Confirmation of medium parameters: provide the specific medium name, concentration, temperature, and pressure for accurate material matching.

2. Structural design communication: include tank capacity, diameter, height, wall thickness, nozzle/port positions and quantities, and provide detailed 2D or 3D drawings.

3. Weld quality verification: require the supplier to provide weld strength test reports and spark test records to ensure that the welds are free of defects.

4. Level gauge integration solution: incorporate level gauge selection into the overall tank design to ensure compatibility of the mounting interface and sealing structure.

5. Compliance documents: according to the requirements of the application industry, obtain relevant compliance certificates such as FDA and USP Class VI.

Conclusion

Custom OEM PTFE welded round tanks, with their excellent chemical corrosion resistance, flexible custom design, and reliable level monitoring capability, have become indispensable process equipment in fine chemicals, pharmaceuticals, semiconductors, and other fields. As the chemical industry continues to raise requirements for safe production and product purity, the application prospects for PTFE welded containers and their associated level monitoring solutions will become even broader. Selecting the right PTFE container supplier and systematically evaluating medium parameters, structural design, and welding processes are key to ensuring long-term stable operation of the equipment.
