Introduction
In fields such as semiconductor manufacturing, photovoltaic/optoelectronic, biopharmaceutical, and trace analysis, fluid delivery systems have increasingly stringent requirements for material purity and chemical inertness. Any trace metal ion leaching, particulate contamination, or pipeline pulsation may lead to reduced product yield or even batch scrapping. PFA (perfluoroalkoxy resin) miniature pressure tanks and buffer tanks have emerged as key components against this backdrop. Their “miniature” positioning is not merely a simple size reduction, but a customized engineering solution for scenarios such as limited integration space inside precision equipment, precise medium consumption, and extreme cleanliness requirements. In recent years, customization, miniaturization, and monitoring technology integration have become three core trends in the PFA pressure vessel industry.
1. Core Advantages of PFA Material
PFA is a copolymer of tetrafluoroethylene and perfluoroalkyl vinyl ether. It combines the excellent chemical resistance of PTFE with melt processability, giving it an irreplaceable position in the precision manufacturing of miniature pressure vessels. Its key properties include:
Near-universal chemical inertness. PFA is inert to almost all known chemicals, including concentrated hydrofluoric acid, strong bases, and complex organic solvents. It exhibits no leaching, corrosion, or aging deformation during long-term use. In semiconductor etching processes, PFA buffer tanks can be used directly to handle hydrofluoric acid solutions that would dissolve glass—something traditional borosilicate glass containers cannot do at all.
Ultra-trace purity. Semiconductor-grade PFA raw materials strictly control the leaching of metal ions such as Na, K, Ca, and Fe, with metal element blank values as low as below 0.01 ppb. This property makes it an indispensable supporting component in trace analysis such as ICP-MS and ICP-OES.
Wide-range temperature stability. PFA miniature pressure tanks can operate over a temperature range from -200°C to +260°C, maintaining good mechanical integrity and deformation recovery under both high and low temperature conditions.
Hydrophobic and anti-stick surface. The non-stick hydrophobic nature of the PFA inner wall ensures zero residue of high-value metal salt solutions, facilitating complete sample recovery and effectively preventing cross-contamination between batches.
2. Typical Application Scenarios
2.1 Semiconductor Manufacturing
In front-end semiconductor processes, PFA miniature pressure tanks are mainly used in developer distribution loops, high-purity chemical delivery units of wet etching and cleaning equipment, and slurry pipeline systems for chemical mechanical polishing (CMP). Their core functions include: serving as a pressure buffer unit in chemical supply systems to eliminate pulsation generated during pumping and ensure uniform coverage of developer on the wafer surface; and acting as an intermediate liquid storage container in vacuum/pressure dispensing systems, using pure gas pressurization to push liquid into pipelines and achieve stable, pulsation-free liquid supply.

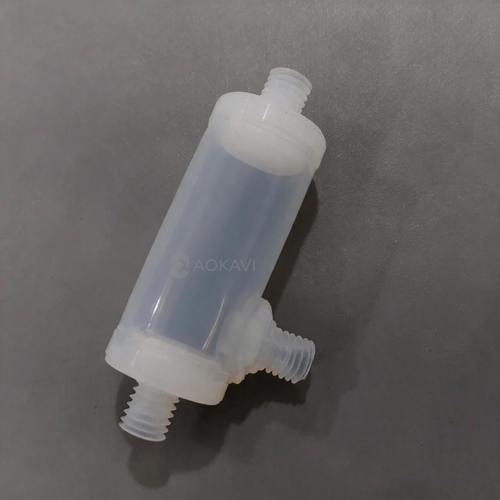

It is worth noting that PFA welded pressure tanks play a key role in developer equipment. The joint areas made by professional hot-melt welding processes are uniformly fused with the tank body material, achieving a truly seamless connection and fundamentally eliminating leakage risks caused by aging seals, loose threads, or adhesive contamination. Inlet/outlet diameters, angles, volumes, and configurations such as T-type, L-type, and multi-port can be customized according to customer equipment layouts and pipeline drawings.
2.2 Pulsation Damping and Pressure Buffering
When pneumatic diaphragm pumps or bellows pumps are used to transport high-purity chemicals, the pump discharge stroke generates pressure pulsation. This pulsation not only affects flow control accuracy but may also cause particles retained on the filter membrane to be forced through, thereby contaminating downstream fluids. PFA buffers can reduce pump pulsation to 76% to 93% of the nominal value, significantly improving flow control and increasing batch yield.
Unlike ordinary buffer tanks, PFA buffers specifically designed for pulsation damping are more refined in design: all wetted parts are made of high-purity PFA and PTFE, containing no metal parts or rotating shaft seals, completely eliminating leakage risks; at the same time, they can be directly adapted to the pump stroke and pipeline pressure without additional third-party components, simplifying installation and reducing system complexity.
2.3 Photovoltaics and Wet Electronic Chemicals
In photovoltaic glass etching processes, PFA-lined storage tanks are widely used for the storage and dispensing of corrosive chemicals such as hydrochloric acid. Miniature buffer tanks appear more often in laboratory-level research and development of new optoelectronic materials, used for reaction experiments of electronic-grade gases and intermediate storage of ultrapure reagents. PFA impingers (also called buffer bottles or bubblers) are used in photovoltaic/optoelectronic, new materials, new energy, and other fields for reaction experiments between gases, solids, or liquids, without contaminating samples.
2.4 Pharmaceuticals and Biotechnology
In the biopharmaceutical field, PFA miniature pressure tanks are mainly used for sterile buffer storage, high-purity reagent transfer, and off-gas absorption and reflux protection in harsh synthesis reactions. PFA isolation buffer bottles use an integrated isolation structure and feature high purity, no leaching, strong corrosion resistance, anti-suckback, and tight sealing, making them suitable for demanding scenarios such as high-purity reagent transfer and corrosive system reactions. The autoclavable properties of PFA materials enable them to meet aseptic operation requirements in GMP environments.
3. Key Points of Customized Design
The core value of customizing PFA miniature pressure tanks and buffer tanks lies in “design on demand”—precisely matching the volume, port configuration, and structural configuration of the container to the space layout and process parameters of specific equipment.

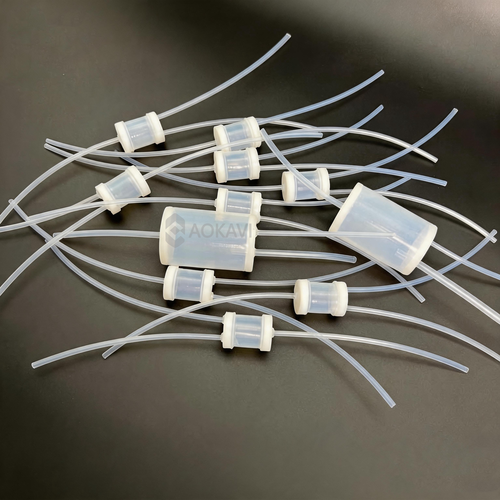

Volume range and precision. The common volume range of miniature PFA pressure tanks is 50 mL to 2 L, and some applications can be extended to above 10 L. The choice of capacity should comprehensively consider single chemical dosage, pipeline holdup volume, and pulse decay time constant. For buffer tanks, too small a capacity will lead to insufficient buffering effect, while too large a capacity will increase chemical retention and replacement frequency.
Port customization. Custom tank ports can be adapted to 1/4" to 1" NPT threads, VCR metal face seals, or clamp connections. PFA lids can be connected to 1/4-inch tubing, and lids for connecting 1/8, 3/8, and other tubing sizes can also be customized; multiple connection methods are provided for tubing and lids. Taking the Partek PFA series as an example, its modular design provides up to 14 port connection points (5 on top, 5 on bottom, and 4 on the side). Valves and fittings can be connected directly to the tank body, reducing space occupation and eliminating potential leak points. Side ports can also be used to install liquid level sensors and tank stabilization devices.
Configuration options. In addition to the standard cylindrical shape, customization services cover special configurations such as T-type, L-type, and multi-port to adapt to compact pipeline routing inside equipment. For applications requiring external liquid level observation, translucent PFA material can be selected; for systems requiring precise liquid level monitoring, sensor ports can be reserved during customization.
Material grade. The required PFA grade should be specified during customization. Semiconductor applications require semiconductor-grade PFA raw materials with strictly controlled metal ion leaching to meet SEMI standards. Some high-end applications use modified PFA (New-PFA), which has lower fluoride ion leaching and a smoother surface, making it particularly suitable for tank bodies with extremely high cleanliness requirements for semiconductors.
4. Selection Considerations and Key Parameters
During actual selection, the following parameters need to be comprehensively weighed:
Pressure rating. A 6-inch diameter custom PFA pressure vessel has a maximum working pressure of 80 PSIG (5.5 bar) at 20°C, which drops to 48 PSIG (3.3 bar) at 70°C; the maximum vacuum is 25 inches Hg (980 mbar). For typical scenarios using N₂ gas pressurized delivery, a pressure resistance of 0.3 MPa is usually sufficient.
Temperature range. The medium temperature is usually controlled between 15°C and 70°C. If this range is exceeded, special design requirements should be raised during customization. Laboratory-grade PFA buffer tanks can cover a wider range from -200°C to +260°C, but pressure and sealing performance need to be re-evaluated.
Chemical compatibility. PFA is inert to the vast majority of chemicals, but under high temperature and high pressure, certain special media (such as molten alkali metals and high-temperature fluorine gas) may still attack it. During selection, the compatibility data of the specific medium under operating conditions should be verified.
Cleanliness requirements. For semiconductor and trace analysis applications, suppliers should be explicitly required to provide metal ion leaching test reports and particulate counting data, and to confirm that the production environment meets the corresponding cleanroom class standards. High-end suppliers use diamond-tool drilling and polishing, and the surface roughness after polishing can be controlled to Ra ≤ 0.1 μm, with final assembly and packaging completed in a Class 100 cleanroom.
5. Installation and Maintenance Points
The installation of PFA miniature pressure tanks and buffer tanks is relatively simple, but the following key points should be noted: before installation, the pipeline system should be thoroughly cleaned to remove hard foreign matter and particulate contaminants; confirm the parallelism of connecting flanges to avoid damaging the PFA lining or sealing surface during installation; for systems using pressurized delivery, appropriate filters should be installed at the tank inlet to prevent particles from accumulating inside the tank.
In terms of maintenance, the hot-melt welded structure of PFA material has extremely high durability. Under normal operating conditions, its service life far exceeds that of traditional mechanical connectors, and it is almost maintenance-free. Regular inspections mainly include: sealing status of ports, signs of stress cracking on the tank body, and calibration accuracy of liquid level sensors (if equipped). The hydrophobic nature of the PFA surface makes cleaning relatively convenient, but for trace analysis applications, a standard cleaning procedure using high-purity acid soaking or ultrapure water rinsing is recommended.
6. Industry Trends and Outlook
According to an industry report released by QYResearch, the global PFA pressure vessel market is in a steady growth channel, and the semiconductor field is one of the largest downstream application markets. Against the backdrop of continuous advancement in advanced semiconductor processes (such as advanced node scaling and 3D packaging), higher requirements are being placed on the cleanliness, pressure resistance, and dimensional precision of PFA pressure vessels.
Industry trends clearly point to three directions: customization—standard products can hardly meet increasingly diverse equipment integration needs, and modular customized design is becoming an industry standard practice; miniaturization—as equipment integration increases, demand is growing for miniature pressure tanks with smaller volumes and higher precision; monitoring integration—directly integrating liquid level, pressure, and temperature sensors into tank designs to achieve real-time visualization and closed-loop control of fluid status.
For equipment manufacturers and process engineers, choosing a PFA pressure vessel supplier with customization capabilities is not only a procurement decision but also an important part of process optimization and product yield assurance. In semiconductors and high-end manufacturing, “customization is the standard” is becoming an industry consensus.
