316 Bellows Valve: The Choice for Sealing Reliability in Demanding Applications

In industrial fluid control, valve sealing performance directly affects production safety, product quality, and operating costs. When pipelines carry toxic, flammable, explosive, or high-purity media, traditional packed-seal valves inevitably experience wear and micro-leakage over long-term use, becoming a hidden risk to system safety. AOKAVI's 316 bellows valve uses a metal bellows instead of traditional packing seals, eliminating the dynamic leakage path at the stem by design and providing a highly reliable, maintenance-free sealing solution for demanding applications.

I. Product Overview

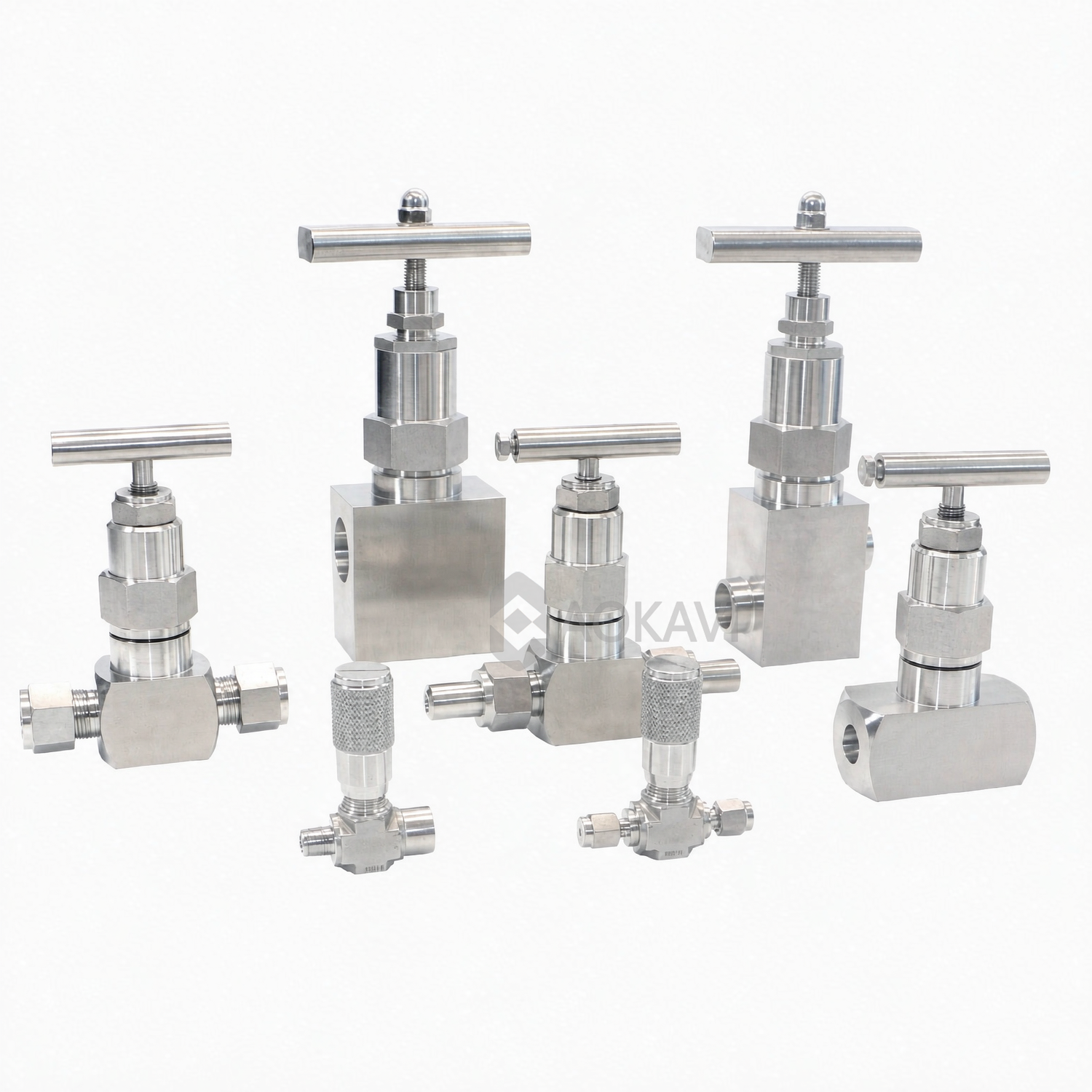

The 316 bellows valve uses a metal bellows as the stem sealing element. The bellows compresses or expands with stem movement to form a reliable dynamic seal. Its core structure consists of the valve body, bellows, valve head, stem, and operating mechanism. The bellows is typically made of 316L stainless steel, with one end fixed to the stem and the other end sealed to the bonnet or body, completely isolating the media from the outside atmosphere. AOKAVI offers this series with manual and pneumatic actuation, multiple connection types, and various mounting options. It covers a wide range of operating conditions from low to high pressure and can meet the diverse needs of general industrial and high-purity applications.

II. Core Advantages

316L Stainless Steel — A Reliable Basis for Corrosion Resistance

316L stainless steel is the low-carbon version of 316, with carbon content controlled at a very low level. The low-carbon design effectively avoids the tendency toward intergranular corrosion. Especially after welding or under high-temperature conditions, 316L offers significantly better resistance to intergranular corrosion than standard 316 stainless steel. At the same time, 316L retains 316's good resistance to chlorides and reducing acids—the addition of molybdenum greatly improves the material's resistance to chloride pitting and crevice corrosion.

In actual corrosive environments, the performance of 316L stainless steel has been fully verified. Electrochemical test studies show that under heavily polluted atmospheric conditions, 316L stainless steel exhibits excellent corrosion resistance and is suitable for applications involving greater deformation and harsh corrosive environments. For scenarios such as high-purity gas delivery commonly found in semiconductor manufacturing and chloride-containing media in chemical production, 316L can maintain stable corrosion resistance over the long term, extending valve service life.

Bellows Sealing Structure — Eliminating External Leakage by Design

The dynamic seal between the stem and packing box of a traditional globe valve is a major source of leakage. Even with PTFE or graphite packing, micro-leakage may still occur after long-term use. This not only causes media loss but may also allow external impurities or microorganisms to enter the system. The 316 bellows valve fundamentally changes this sealing logic: the bellows serves as the core sealing component, expanding and contracting in sync with stem movement while remaining sealed at all times. Contact between the stem and the external environment is completely blocked.

AOKAVI bellows valves use hydraulically formed bellows with uniform wall thickness and optimized residual stress distribution. The bellows adopts an externally pressurized design, further improving pressure-bearing capacity and fatigue life. It is worth noting in particular that the product uses a non-rotating valve head design. During opening and closing, the stem only moves linearly without rotating, effectively eliminating wear in the seat area and significantly extending the service life of the sealing surface. The product undergoes strict leak-tightness testing and maintains stable sealing performance during long-term cycling.

Long Life and Maintenance-Free Operation — Lower Total Cost of Ownership

The sealing structure of a bellows valve is a metal seal or welded seal and does not require regular adjustment or replacement of packing like traditional packed valves. AOKAVI strictly controls bellows stroke. Combined with the externally pressurized design and non-rotating valve head structure, this greatly improves bellows fatigue life. In clean environments, pneumatic models can withstand operation cycles on the order of millions, far exceeding the service life of conventional packed-seal valves.

The benefits of this maintenance-free characteristic are multidimensional: reduced downtime for repairs, lower spare-parts replacement frequency, and avoidance of media loss and safety hazards caused by leakage. For continuous production processes, these advantages translate directly into lower operating costs and improved system safety.

High Cleanliness — Meeting Strict Purity Requirements

The 316 bellows valve has a simple, smooth flow path and small internal volume. Combined with valve body welding processes that reduce dead zones in the flow path, it controls particle generation and retention at the source. The inner walls are precision polished, and both wetted surface roughness and clean packaging meet the requirements of high-purity and ultra-high-purity applications. This allows the product to effectively avoid media contamination and ensure product yield when handling media with strict cleanliness requirements, such as ultrapure gases and high-purity chemicals.

III. Application Areas

Semiconductor Manufacturing

Semiconductor manufacturing is one of the most important application areas for bellows valves. In wafer fabrication, specialty gas pipelines place extremely strict requirements on valve sealing integrity and cleanliness. The zero external leakage characteristics and low outgassing performance of the 316 bellows valve can effectively prevent the escape of toxic and corrosive specialty gases while avoiding particle generation that could contaminate wafers. It is widely used in key locations such as main gas supply branches in gas cabinets, process gas lines, and purge lines.

Chemical and Petrochemical

In fine chemicals and petrochemicals, pipelines often involve corrosive acids, alkaline solutions, and flammable and explosive media. The resistance of 316L stainless steel to chlorides and reducing acids, combined with the fully sealed bellows structure, enables the valve to be safely used in pipeline systems containing toxic, flammable, and highly permeable media, effectively preventing external leakage and ensuring safe plant operation.

Pharmaceutical and Biological Engineering

The pharmaceutical industry has extremely strict requirements for aseptic environments. The packing-free sealing design of the 316 bellows valve avoids the risks of particle shedding and microbial growth caused by packing aging in traditional packed valves. It is suitable for scenarios such as Water for Injection systems, clean steam systems, fermenters, and piping isolation for storage tanks. The product's ease of cleaning also makes it compatible with clean process requirements such as clean-in-place (CIP) and sterilization-in-place (SIP).

Vacuum Systems

In vacuum systems, the 316 bellows valve can be used for instrument isolation, venting, bypass, and roughing, among other purposes. Its small internal volume helps shorten instrument response time, while the bellows structure ensures that no additional leakage path is introduced under high-vacuum conditions. Whether in semiconductor vacuum chambers or research-grade vacuum equipment, the valve provides reliable vacuum isolation performance.

IV. Conclusion

By combining the excellent corrosion resistance of 316L stainless steel with the fully sealed structure of a metal bellows, the 316 bellows valve achieves systematic performance advantages in sealing reliability, service life, cleanliness, and maintenance-free operation. Leveraging its technical accumulation in fluid control and strict manufacturing controls, AOKAVI is committed to providing trustworthy fluid control solutions for demanding applications in semiconductors, chemicals, pharmaceuticals, vacuum, and other industries. For detailed specifications and selection options, please contact AOKAVI for professional support.
