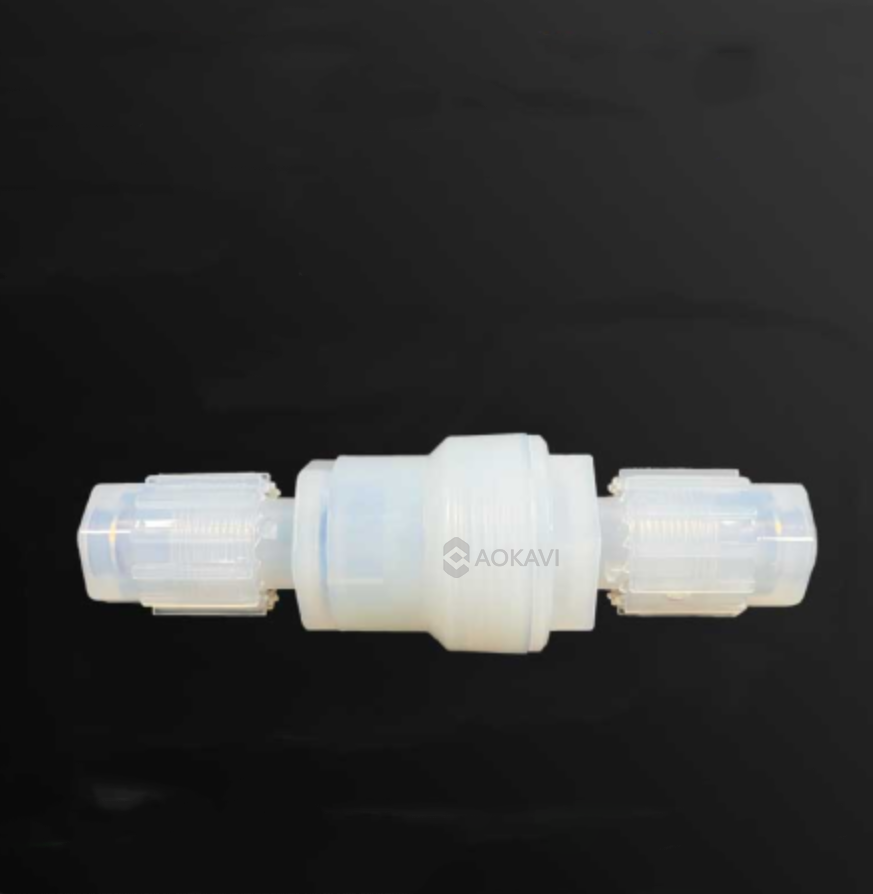

In modern high-purity fluid and corrosive media transfer systems, preventing accidental backflow, media mixing, or siphon reflux is crucial for ensuring process safety, product purity, and equipment integrity. In this field, the PFA Check Valve plays an irreplaceable role as a "One-Way Intelligent Guardian." Leveraging the absolute purity of its perfluoro material and its ingenious automatic opening/closing design, it provides reliable, automated one-way passage protection for single-phase flow paths.

I. Product Definition and Core Function

A PFA Check Valve, also known as a non-return or one-way valve, is a type of valve that automatically opens and closes based on the fluid's own pressure. Its core design allows fluid to pass freely in the preset direction (forward flow), and automatically closes when the flow direction reverses or when forward pressure is insufficient, thereby completely preventing backflow.

Its core functions are concentrated in the following aspects:

1. Preventing Backflow Contamination: In complex or multi-branch systems, it ensures that high-purity chemicals, solvents, or deionized water do not flow back into upstream piping or storage tanks due to pressure fluctuations, avoiding cross-contamination.

2. Protecting Critical Equipment: Prevents damage from water hammer impact or reverse rotation caused by media backflow when power equipment like pumps or compressors shut down.

3. Maintaining System Pressure: In vertical pipelines or siphon applications, it prevents media backflow due to gravity or negative pressure, maintaining pipeline fill and system pressure stability.

II. Core Design Value

• Full Fluoropolymer Barrier Ensures Flow Purity: All wetted parts (valve body, valve clack/disc, seals) are made of high-purity PFA, ensuring every inch of surface the fluid contacts during one-way flow is inert. This eliminates contamination risks from valve body materials, making it perfectly suitable for ultra-pure chemicals and biological agents.

• Automatic Operation, Zero Operational Dependency: Opening and closing are achieved entirely through clever fluid mechanics design, requiring no external power, electricity, or manual intervention. The simple and reliable structure results in low failure rates, making it a fundamental safety component for process automation.

• Low-Pressure Drop Design, Energy-Efficient: The optimized flow path and disc design ensure extremely low flow resistance in the open state, minimizing system head loss and reducing pumping energy consumption.

• Diverse Internal Structures for Different Conditions: Depending on the specific application (e.g., liquids, gases, viscous media, different cleanliness requirements), PFA check valves can employ various internal structures such as lift, swing, diaphragm, or ball-type, providing targeted solutions.

III. Working Principle and Internal Structure Types

The working principle of a PFA check valve is based on differential pressure and a reset mechanism (usually a spring or the disc's own weight). Its performance is highly dependent on the choice of internal structure type.

IV. Standard Size Range and Selection Reference

PFA check valves are primarily used for fine control piping of high-purity and corrosive fluids. Their standard port sizes typically range from 1/4 inch to 1 inch, meeting the needs of most laboratory, pilot, and small/medium production systems.

Key Points for Selection and Installation:

1. Determine the Cracking Pressure: This is the core parameter. Choose a valve with a pressure slightly below the system's normal working pressure but sufficient to reliably open the disc, avoiding unnecessary flow restriction or failure to open.

2. Define the Fluid Media and Operating Conditions: The medium's viscosity, cleanliness, and temperature directly influence the choice of structure type (e.g., ball type for viscous fluids, diaphragm type for fluids with particulates).

3. Installation Direction Must Be Correct: The flow direction arrow clearly marked on the valve body must align with the system's designed forward flow direction. Lift check valves often have strict requirements for installation levelness.

4. Consider Water Hammer Effect: In applications with potential severe pressure surges (e.g., pump outlets), evaluate the valve's closing speed and water hammer potential. Special designs with damping features may be necessary.

V. Core Application Fields

The PFA Check Valve is a fundamental component for building safe and reliable high-purity flow paths, widely used in:

• Semiconductor Manufacturing: In ultra-pure chemical distribution systems and tool interfaces, preventing cross-contamination between different chemicals during distribution valve manifold switching due to pressure differentials.

• Biopharmaceuticals: In buffer preparation systems, chromatography systems, and fermenter piping, protecting the sterile environment by preventing media, buffers, or product liquids from backflowing due to level differences or pump shutdown, ensuring batch integrity.

• Fine Chemicals & Laboratories: In continuous flow reactions and multi-reagent feeding systems, ensuring various reactants enter the reactor strictly in sequence and in one direction, safeguarding reaction safety and efficiency.

• High-Purity Water Systems: At RO/EDI outlets, circulation loops, and points-of-use, preventing external contamination or internal water quality degradation due to pressure imbalances.

Conclusion

The PFA Check Valve, with its pure essence of "full fluoropolymer material" and intelligent self-regulation via "differential pressure drive," constructs a silent yet vital one-way safety barrier in high-purity and corrosive fluid systems. It simplifies complex safety logic into an exquisite, automatic, and utterly reliable physical mechanism. Correctly selecting and installing a PFA Check Valve not only eliminates backflow risks and protects valuable equipment and process media but is also an indispensable element in achieving intelligent and safe operation of fluid systems. In the modern process industry striving for "zero contamination, zero errors," it is truly a "Fluid Guardian," safeguarding the purity and direction of every process.
