In modern high-purity fluid systems, when pipeline routing requires a compact 90-degree change in direction while simultaneously demanding absolute chemical purity and sealing reliability, one critical component becomes indispensable—the PFA Angle Valve. This valve is specifically designed for achieving right-angle turns and reliable control of flow paths within confined spaces. Leveraging the superior properties of its perfluoro material, it serves as the "Space Optimizer and Purity Guardian" in fluid systems within high-tech industries like semiconductors and biopharmaceuticals.

I. Product Definition and Core Function

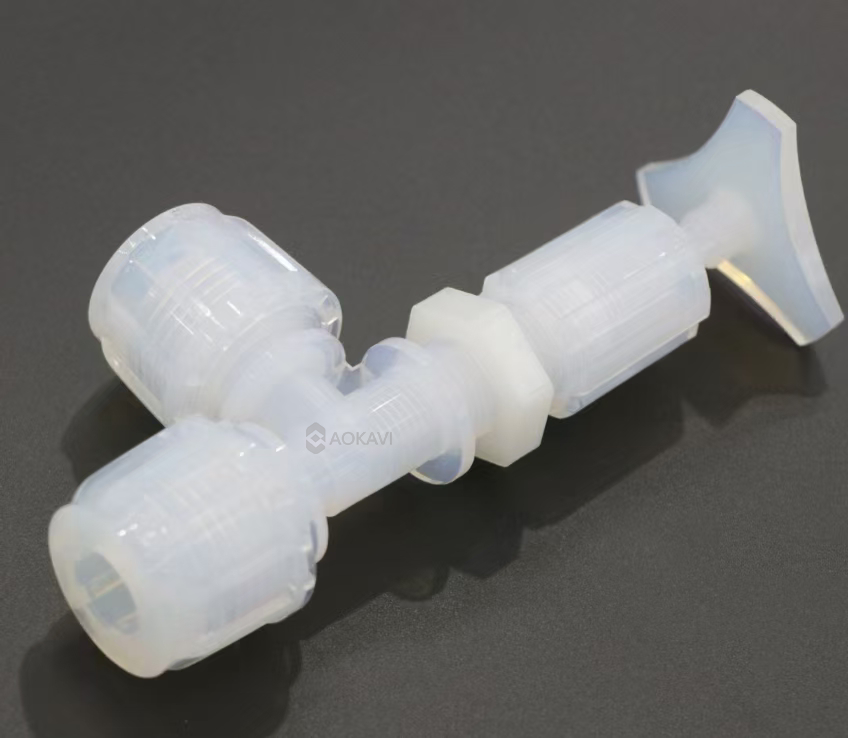

A PFA Angle Valve is a valve whose inlet and outlet channel axes form a 90-degree right angle. Its valve body is "L"-shaped, and all fluid-contacting "wetted parts" are made of high-purity PFA (Perfluoroalkoxy alkane). Its core function is reflected on two levels:

1. Spatial Flow Path Optimization: In systems with compact equipment layouts, it directly replaces the combination of a "straight-through valve + 90-degree elbow," using one component to simultaneously accomplish flow direction change and flow control. This greatly simplifies piping layout, reduces connection points, saves valuable space, and enhances the overall rigidity of the system.

2. High-Purity Flow Path Control: While achieving flow direction change, it provides reliable opening, closing, or regulating functions, ensuring that the flow path remains completely inert with zero risk of metal ion contamination when transporting ultra-pure chemicals, corrosive solvents, or high-purity water.

II. Core Design Value

• Ultimate Space Efficiency: The "L"-shaped integrated design is its greatest structural advantage. It eliminates additional elbows and their connection points, not only reducing the probability of leaks but also making valve installation more flexible, especially suitable for spaces behind equipment, in corners, or within densely packed pipe racks.

• Full Fluoropolymer Barrier Ensures Purity: The PFA flow path, consistent with the piping system, provides perfect chemical compatibility. It can withstand erosion from almost all harsh chemical media and ensures fluid is not contaminated during the turning process, fully meeting semiconductor-grade (SEMI) and pharmaceutical-grade (e.g., FDA compliant) purity requirements.

• Excellent Operation and Sealing Performance: The valve stem is typically made of precision-machined PFA or PTFE, paired with PTFE sealing components, achieving smooth rotational feel and long-lasting, reliable sealing. Many designs incorporate a stem blow-out prevention structure, enhancing safety under pressure conditions.

• Unification of Function and Form: Integrating the two major functions of "direction change" and "flow control" into a single, optimized component embodies the design philosophy of high-purity fluid systems: simplicity, reliability, and ease of maintenance.

III. Interface Details: Two Mainstream Forms for Compact Connection

The inlet and outlet of a PFA Angle Valve typically use interfaces of the same specification to ensure compatibility. Depending on system design and maintenance requirements, there are two main connection methods.

IV. Standard Size Range and Selection Reference

PFA Angle Valves are primarily used for medium-to-small flow control with stringent space and purity requirements. Their standard port size range starts from 1/4 inch (1/4") up to a maximum of 1 inch (1"). Selection requires comprehensive consideration of flow rate, spatial layout, and connection method.

Key Points for Selection and Installation:

1. Flow Direction Confirmation: Before installation, the flow direction arrow marked on the valve body must be confirmed to ensure fluid passes through as designed (typically "low inlet, high outlet" or per valve body marking) to optimize sealing performance and operational feel.

2. Spatial Planning: Precisely measure the three-dimensional dimensions of the "L"-shaped valve body to ensure sufficient space for rotating the handwheel and to avoid interference with surrounding equipment.

3. Interface Compatibility: Ensure the interface type and size on both ends of the valve perfectly match the connecting piping. Mixing incompatible fittings from different manufacturers is strictly prohibited.

4. Pressure and Temperature: Verify that the valve's rated working pressure and temperature range meet system requirements, paying special attention to the decrease in mechanical strength of PFA material at elevated temperatures.

V. Core Application Fields

The PFA Angle Valve is a key component for achieving compact, high-purity flow path design, widely used in:

• Semiconductor Manufacturing: In Ultra-Pure Chemical Distribution Systems (CDS) and wet etch equipment, for chemical line direction change and on/off control within the compact spaces of wafer processing tools.

• Biopharmaceuticals: Around bioreactors, buffer preparation systems, and chromatography equipment, for right-angle turning and isolation of media, buffer, or product lines in limited spaces, facilitating equipment layout and maintenance.

• Fine Chemicals & Laboratories: When setting up continuous flow reaction apparatus or multi-parallel experimental equipment, for compact flow path turning and precise control at reactor inlets/outlets.

• High-Purity Water Systems: At the end of distribution loops or points-of-use (e.g., polishing mixed-bed inlets, instrument water inlets), enabling right-angle routing of pipes along walls or equipment frames and final control.

Conclusion

The PFA Angle Valve, with its compact "right-angle turn" form and "full-fluoropolymer flow path" pure core, perfectly addresses the dual challenges of "space constraints and flow direction control" in high-purity and corrosive fluid systems. It condenses what might be a complex connection requiring multiple components into a highly reliable, pure, and space-saving single-component solution. Whether opting for permanent and stable flared installation or flexible and agile beaded connection, correctly selecting a PFA Angle Valve can significantly enhance a fluid system's layout rationality, operational reliability, and maintenance convenience. It is an indispensable precision component for achieving intelligent, modular layouts in modern high-purity fluid engineering.
