In systems handling corrosive media, such as chemical processing, electroplating, pharmaceuticals, and semiconductor wet processes, reliable, leak-free piping connections are the cornerstone of safety and efficiency. The PVDF Male Connector, particularly in sizes where the male thread typically does not exceed 3/4 inch, is a crucial standardized interface component for achieving this goal. It acts like a reliable "interface translator," establishing robust, corrosion-resistant, and well-sealed connection channels between different pipes or between pipes and equipment.

I. Product Definition and Core Function

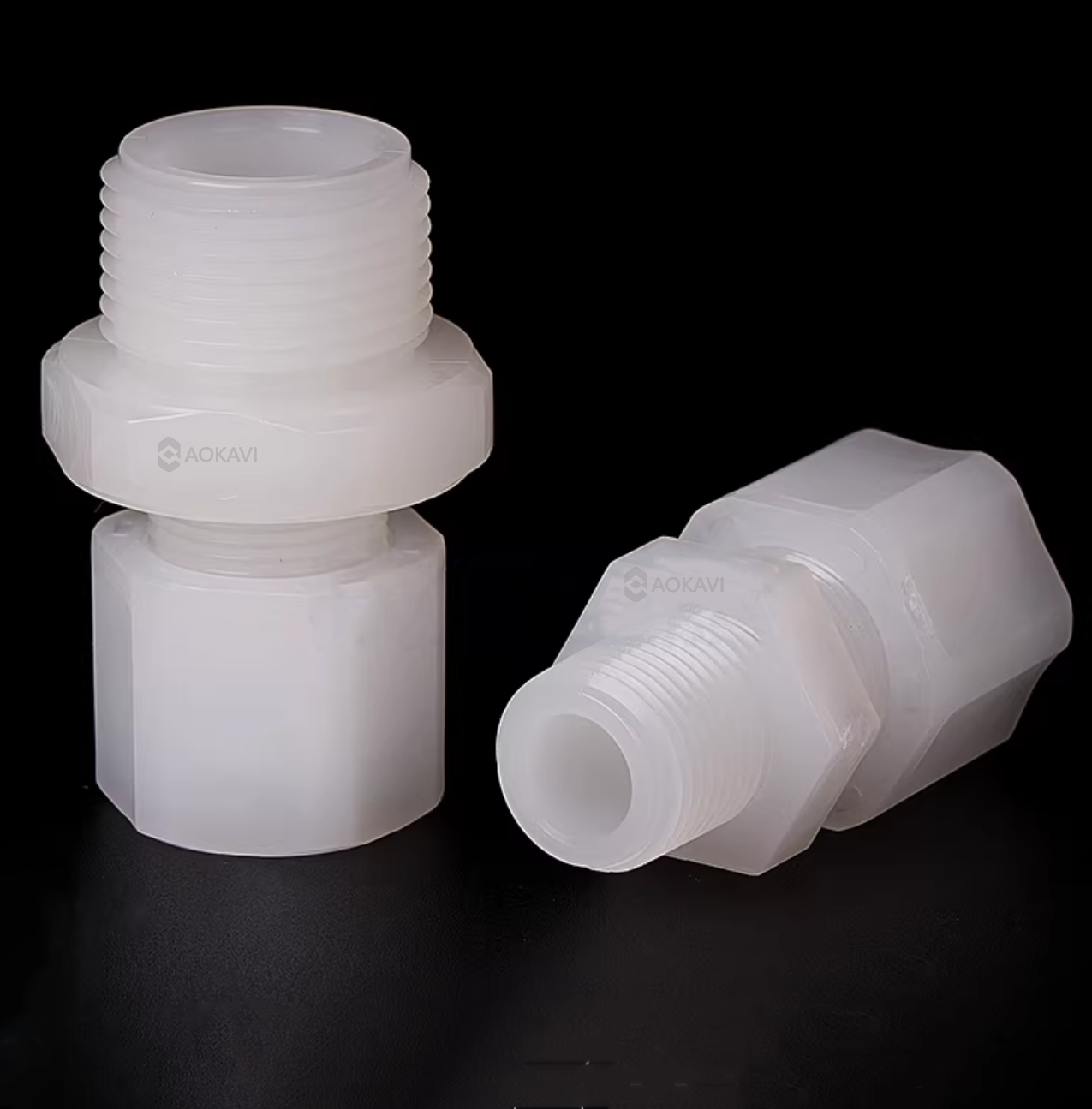

A PVDF Male Connector typically refers to a straight-through pipe fitting with a male thread on one end and a coaxial pipe connection on the other. Its core function is to achieve a standardized, corrosion-resistant connection between threaded equipment ports and PVDF piping systems.

Unlike PFA material, which emphasizes ultra-high purity, PVDF (Polyvinylidene Fluoride) is renowned for its excellent mechanical strength, rigidity, and UV resistance, while also offering outstanding corrosion resistance to most acids, alkalis, halogens, and solvents at ambient to moderate temperatures. Therefore, PVDF Male Connectors are more focused on providing reliable, cost-effective interface solutions in scenarios involving strong corrosive media with some mechanical stress, environmental exposure, or cost sensitivity.

II. Core Design Value

1. Standardized Bridge: Provides standard metric (M) or imperial (e.g., NPT) male threads, seamlessly converting non-standard or different material equipment ports into standard interfaces compatible with PVDF piping systems, greatly enhancing system modularity and maintainability.

2. Corrosion Barrier: The connector body or its critical flow path is made of PVDF, creating a continuous fluoroplastic chemical isolation barrier between the corrosive medium and the system's metal components (e.g., pump bodies, tank threaded ports), effectively preventing electrochemical corrosion and media contamination at the interface.

3. Structurally Robust and Durable: PVDF material inherently possesses higher tensile strength and creep resistance than PFA, allowing male connectors to withstand greater installation torque and piping stress, making them suitable for connection points with slight vibration or requiring higher mechanical stability.

4. Cost-Effective Solution: While meeting the needs for transporting most strong corrosive chemical media, PVDF Male Connectors typically offer better cost-effectiveness compared to all-PFA fittings, making them an ideal choice for many industrial applications.

III. Interface Details: One End Threaded, One End for Piping

The design essence of the PVDF Male Connector lies in its hybrid interface mode of "one rigid end, one adaptable end," balancing stability on the equipment side with flexibility on the piping side.

IV. Standard Size Range and Selection Reference

For industrial corrosive fluid systems requiring certain pressure handling and cost-effectiveness, the male thread size of PVDF Male Connectors typically ranges from 1/4 inch to 3/4 inch. This covers the common range for most small to medium-sized chemical equipment ports.

The following is a selection reference for typical PVDF Male Connectors (using NPT as an example for the male thread end):

Key Points for Selection and Installation:

• Primary Thread Match: Accurately identifying the thread type, size, and sealing form of the equipment port is the first step in selection. Errors will lead to installation failure or leakage.

• Pressure & Temperature Confirmation: Although PVDF is corrosion-resistant, it has clear upper limits for long-term working temperature and pressure (e.g., pressure rating can exceed 1.6 MPa at room temperature but decreases with rising temperature). Ensure operating conditions are within rated limits.

• Installation Torque Control: Use a torque wrench and tighten strictly according to the manufacturer's recommended value. Over-tightening is the most common cause of damage to PVDF threaded fittings.

• Piping Connection Process: Follow the corresponding standard operating procedures based on the chosen connection method (cementing, fusion) to ensure connection strength and sealing.

V. Core Application Fields

PVDF Male Connectors are fundamental and critical standardized components for interconnecting equipment and piping in corrosive fluid handling systems, widely used in:

• Chemical & Electroplating Industries: In systems like pickling lines, electroplating baths, and scrubbers, for connecting pumps, valves, instruments, and main PVDF pipelines to transport media such as hydrochloric acid, sulfuric acid, and chromic acid.

• Environmental Protection & Water Treatment: In wastewater acid-base neutralization and heavy metal treatment units, connecting chemical dosing pumps, pH adjustment tanks, and monitoring instruments.

• Pharmaceutical & Some Electronics Industries: Used in process fluid preparation or wastewater treatment stages where resistance to metal ion contamination is less stringent than semiconductor grade but corrosion resistance is required.

• Laboratories & Pilot Plants: For setting up small/medium-scale corrosion-resistant experimental flow processes, conveniently connecting reactors, storage tanks, and other equipment to PVDF piping systems.

Conclusion

The PVDF Male Connector, with its practical design of "one standard thread end, one reliable pipe end," plays a vital role as a "Standardized Interface Converter" in corrosive fluid system engineering. It fully utilizes the excellent balance of PVDF material between mechanical strength, corrosion resistance, and cost-effectiveness, providing a robust, durable, and cost-efficient solution for connecting metal/plastic equipment to PVDF piping. In the field of small to medium-sized industrial applications with male thread sizes of 3/4 inch and below, the correct selection and installation of PVDF Male Connectors is a fundamental guarantee for building a safe, reliable, and maintainable corrosion-resistant fluid system.
