PFA Needle Valve: The "Precision Micro-Flow Regulator" for High-Purity Fluid Systems

In applications such as semiconductor etching, biopharmaceutical fluid preparation, or advanced chemical synthesis, there is often a need for extremely precise flow control of high-purity, highly corrosive fluids—not just simple "on" or "off," but fine-tuned regulation at the level of "drops" or "milliliters per minute." In this domain, the PFA Manual Needle Valve plays an irreplaceable core role. Leveraging the pure inertness of perfluoro materials and unique mechanical design, it serves as the "precision regulator" for controlling micro-flows of high-purity and corrosive media.

I. Core Positioning: The Ultimate Solution for Micro-Flow Regulation

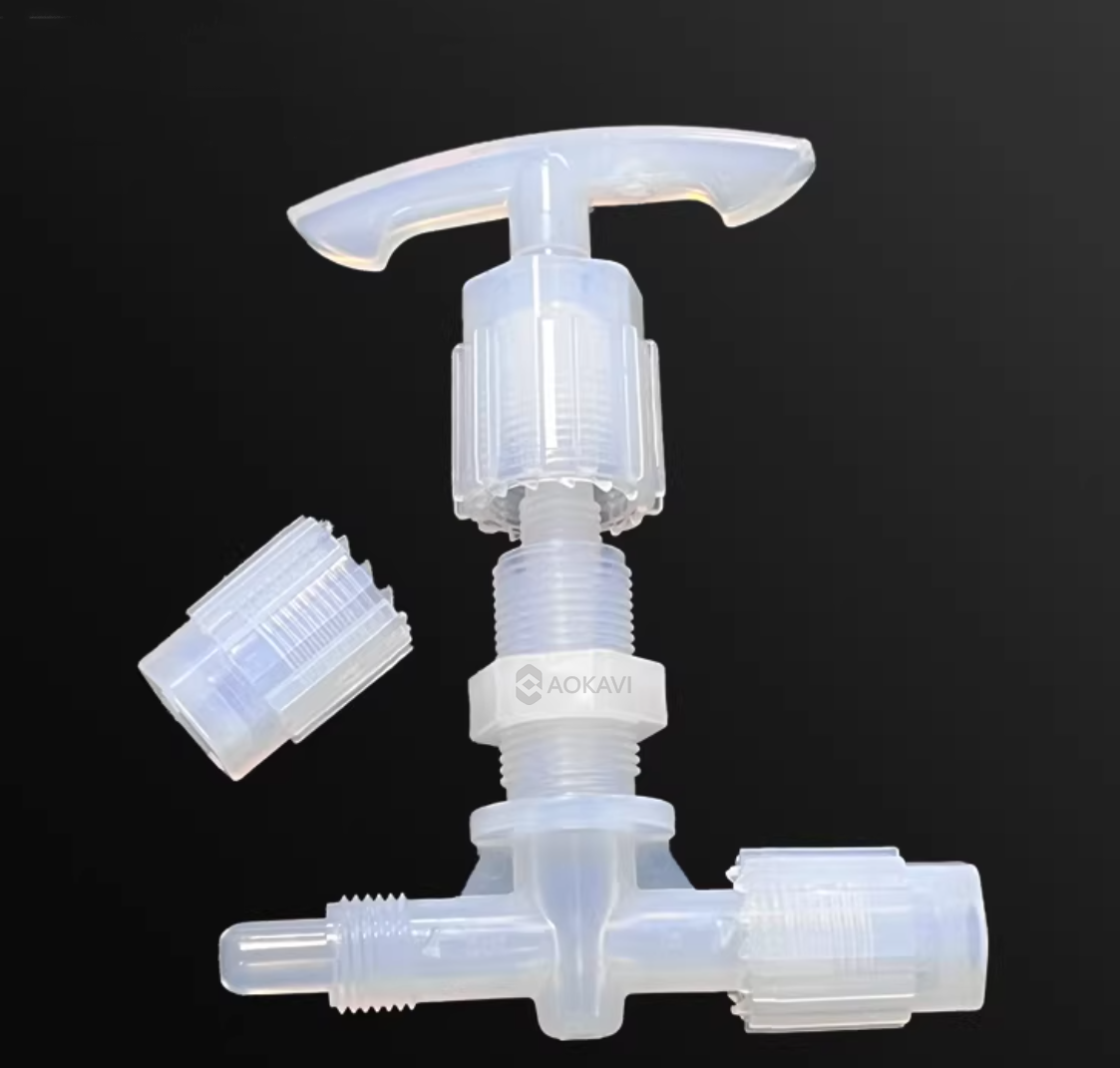

A PFA needle valve is a type of valve that uses a handwheel to slowly thread a precision-machined conical needle-shaped stem into or out of a valve seat, thereby achieving continuous, fine, and linear adjustment of the flow path cross-sectional area.

Unlike the quick on/off action of ball or plug valves, the core value of a needle valve lies in "regulation" rather than "isolation." The slender conical design at the tip of its stem means that each small rotation results in only a minute, linear change in flow area, allowing the operator to exert extremely fine control over the flow rate. Combined with the purity of an all-PFA flow path, this makes it the ideal actuating component for precise metering, slow loading, or dynamic flow balancing in high-purity processes.

II. Core Design & Working Principle: The Art of Micron-Level Precision

The exceptional performance of the PFA needle valve stems from its integration design in materials science and precision mechanics:

1. All-Fluoropolymer Wetted Parts, Ensuring Absolute Purity: All fluid-contacting components (body, stem) are made from injection-molded, high-purity PFA. This guarantees a completely inert fluid path, eliminating the risk of metal ion contamination and chemical corrosion, and is a prerequisite for handling ultra-pure chemicals, acid/base solvents, and electronic-grade gases.

2. Conical Needle Stem for Fine Regulation: The end of the valve stem is machined into a slender cone (the "needle"). Clockwise rotation of the handwheel slowly threads the stem in, gradually reducing the orifice with the conical tip to achieve linear, smooth flow reduction; counterclockwise rotation linearly increases the flow. This design provides stepless, precise flow control capability.

3. Multiple Sealing and Safety Mechanisms:

   • PTFE Sealing Ferrule: A Polytetrafluoroethylene (PTFE) sealing ferrule is installed between the stem and the valve body. Utilizing PTFE's elasticity and self-lubricating properties, it maintains a reliable primary seal during frequent adjustments, preventing leakage along the stem.

   • Precision-Machined Sealing Zone: The sealing surface of the stem is machined to ultra-high precision, ensuring smooth rotation, consistent tactile feedback, and maintained sealing performance over long-term use.

   • Integrated Stem Stop: The valve body incorporates a specially designed PFA stop feature that effectively prevents the stem from being completely disengaged due to accidental operation or vibration, avoiding potential fluid release or system contamination from a loose stem, thereby enhancing operational safety.

III. Key Specifications & Selection Guide

PFA needle valves are typically used in applications requiring high precision with relatively low flow rates. Their standard size range covers needs from analytical instruments to small/medium process systems.

The following specifications are based on data from typical products (units in millimeters):

Selection and Usage Key Points:

• Define the Regulation Purpose: Confirm the core need is "precise regulation," not "rapid switching."

• Verify Pressure & Temperature: Ensure the valve's pressure rating (typically suitable for low/medium pressure) and temperature range are compatible with the process media.

• Port Compatibility: Select based on the connection type (e.g., flared, compression, flange) and size of the piping system.

• Operational Practice: Needle valve adjustment requires multiple turns, making it suitable for applications where fine adjustment is needed over speed.

IV. Typical Application Fields

1. Semiconductor Manufacturing: Used in wet processes to precisely control the supply flow rate of etchants, developers, or ultra-pure cleaning agents, ensuring process uniformity and repeatability.

2. Biopharmaceuticals & Laboratories:

   • Fine-tuning the addition rate of acid/base titrants or nutrient feeds in fermentation or cell culture.

   • Serving as a back-pressure regulator or feed control valve in chromatography (HPLC) systems or continuous flow reactors.

3. Analytical Instrumentation: Acting as a pressure and flow stabilizing/regulating valve for carrier or auxiliary gas lines in instruments like Gas Chromatographs (GC) and Mass Spectrometers (MS).

4. Specialty Chemicals: Enabling precise proportional dosing and safe control of reactants in continuous processes involving hazardous or expensive chemicals.

Conclusion

The PFA Needle Valve is far from an ordinary valve; it is a highly integrated unity of material purity and mechanical precision. In scenarios where high-purity or high-hazard fluids must be managed with "slow and meticulous" care, it provides an unparalleled precise, safe, and reliable micro-flow control solution. Choosing a suitable PFA Needle Valve equips your precision process with a stable hand capable of "micron-level sculpting," forming a crucial cornerstone for ensuring product quality, process safety, and experimental reliability.
