Introduction: The Key Role in Precise Control

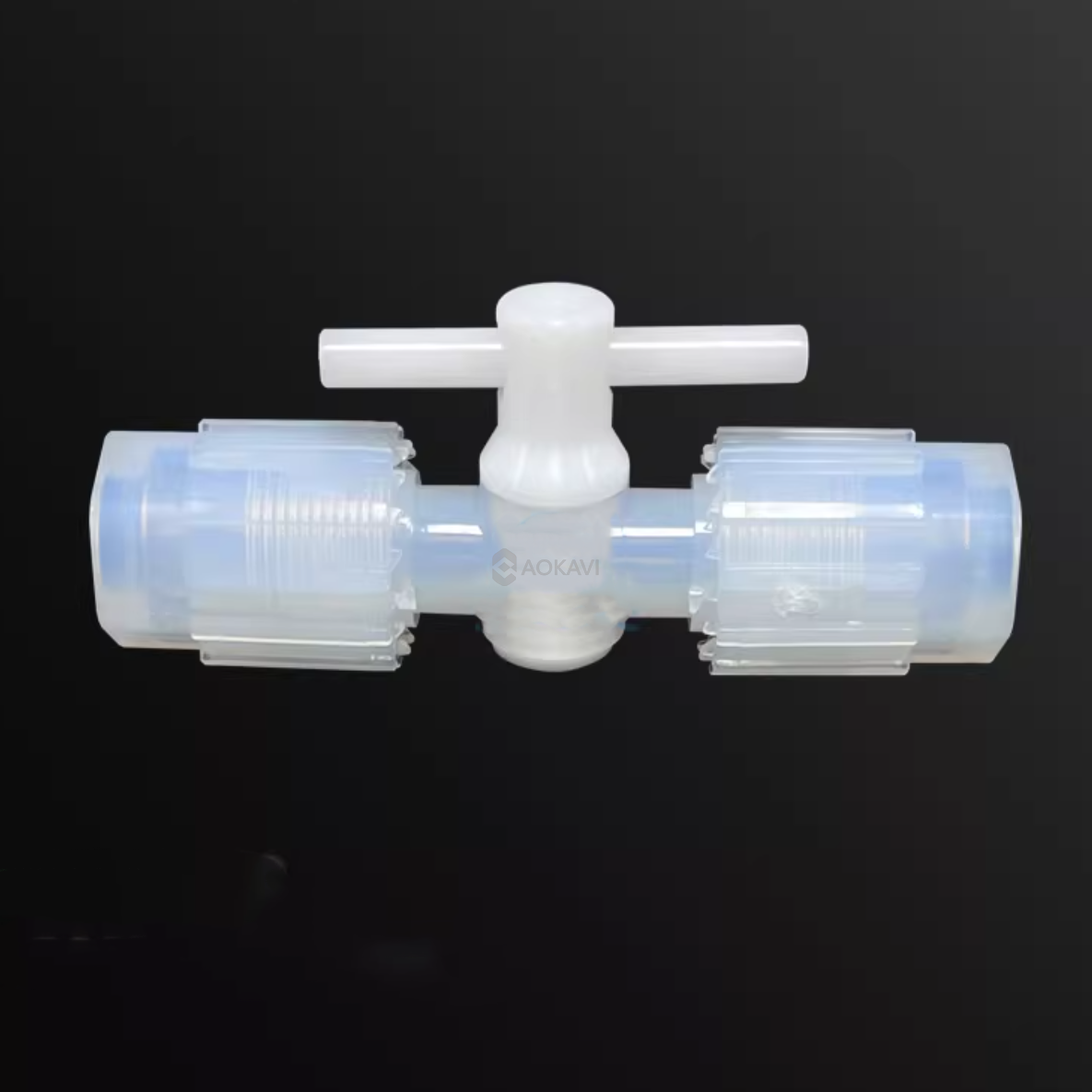

In modern high-tech industries, particularly in semiconductor manufacturing, biopharmaceuticals, and high-purity chemical delivery, fluid control demands not only precision but also absolute purity and stability. The PFA Stopcock Valve (STOP COCK VALVE) is a critical component born from this need. It acts as the "Precision Switching Guardian" within fluid pipelines, specifically designed for demanding applications that require extremely high purity, exceptional corrosion resistance, and reliable sealing.
1. Core Construction & Working Principle: Ingenuity Within Simplicity
The design philosophy of the PFA Stopcock Valve is "simple, efficient, and contaminant-free." Its core structure typically includes:
High-Purity PFA Valve Body: Formed integrally using injection molding, this ensures a smooth, seamless inner flow path, fundamentally eliminating the risk of fluid retention and ion leaching. It provides an inert contact environment for ultra-pure fluids.
PTFE Valve Stem/Plug: The stem is usually made from machined Polytetrafluoroethylene (PTFE), which offers good self-lubrication and chemical inertness. The classic press-fit design ensures excellent sealing between the stem and the valve body even during long-term operation, preventing leaks.
Quick On-Off Operation: The valve is typically designed for quick 90° rotation, enabling rapid switching from fully open to fully closed. This design facilitates precise flow regulation or quick system isolation with intuitive and reliable operation.
Its working principle is straightforward and effective: manually rotating the valve stem turns the internal conical or cylindrical plug. When the plug's through-hole aligns with the valve body's flow channel, the valve opens, allowing fluid to pass. After a 90-degree rotation, the solid part of the plug blocks the flow channel, closing the valve and stopping the flow.
2. Core Advantages: Why Choose a PFA Stopcock Valve?
Ultimate Purity, Ensuring Process Integrity: All "wetted parts" contacting the fluid are made from high-purity PFA and PTFE. These materials virtually release no ionic or particulate contaminants, making them ideal for handling ultra-pure chemical liquids (like etchants, photoresist solvents) in the semiconductor industry and high-purity water/buffers in the pharmaceutical industry.
Broad Chemical Compatibility: PFA and PTFE offer excellent resistance to almost all strong acids, strong bases, organic solvents, and oxidizers. This allows the valve to handle a range of highly corrosive media, from hydrofluoric acid to concentrated sulfuric acid, significantly extending equipment service life in harsh chemical environments.
Reliable Sealing Performance: The combination of the press-fit stem design and the elasticity of PTFE creates a system that achieves long-term sealing without additional gaskets. This design reduces potential leak points and enhances overall system reliability.
Compact Design & Simple Operation: The valve features a compact overall structure, saving installation space. Clear 90-degree rotation positions (often with clear "ON/OFF" markings or tactile detents) allow operators to perform controls quickly and accurately.
3. Key Specifications & Selection Guide
Based on the provided information, the main technical parameters of PFA Stopcock Valves are as follows:
Common Port Sizes: Include 1/4 inch and 3/8 inch, with larger sizes like 1/2 inch available to meet different flow requirements.
Pressure & Temperature Ranges:
Working Pressure: Typically suitable for system pressures of 0 to 60 PSIG (approximately 4.1 bar), meeting most high-purity, low-pressure delivery scenarios.
Temperature Range: Can handle fluid temperatures up to approximately 130°C (266°F) and ambient temperatures up to approximately 66°C (150°F).
Material Breakdown:
Wetted Parts: PFA (Valve Body), PTFE (Valve Stem) — In direct contact with the fluid, ensuring purity and corrosion resistance.
Non-Wetted Parts: PFA, PVDF, etc. — Used for structural parts like handles and outer casings, providing mechanical strength.
Detailed Dimensional Specifications Table
The following are dimensional references based on typical products (units in millimeters):
Selection Advice:
When selecting, first determine the valve's port size based on the system piping's interface size (e.g., 1/4″, 3/8″). Next, verify that the chemical properties of the fluid to be handled fall within the compatibility range of PFA/PTFE, and that the system's operating pressure and temperature are within the valve's ratings. For applications requiring frequent operation or fine adjustment, its quick 90-degree operation feature is a significant advantage.
4. Typical Application Scenarios
Semiconductor Wafer Fabrication: Used for precise control and shut-off of ultra-pure chemicals and solvent delivery in processes like wet cleaning, etching, and photoresist development.
Biopharmaceuticals & Laboratories: Serves as a reliable switching valve in high-purity fluid paths for media preparation, buffer delivery, chromatography systems, and experimental setups.
Analytical Instrumentation: Acts as a manual switching valve in the sample introduction systems or gas flow paths of instruments like Gas Chromatographs (GC) and High-Performance Liquid Chromatographs (HPLC).
High-Purity Water Systems: Functions as an isolation valve for sampling points or branch lines in Ultra-Pure Water (UPW) distribution loops.
Conclusion
The PFA Stopcock Valve (STOP COCK VALVE) combines ultra-high purity, exceptional corrosion resistance, reliable sealing, and user-friendly operation into one unit. It is a classic solution to the "last inch" precision control challenge for high-purity and corrosive fluids. While ensuring "zero contamination" of process fluids, it provides a simple and durable manual control method, acting as a vital bridge connecting high-tech processes with fundamental reliability. In modern industries where precision and purity are paramount, selecting the right PFA Stopcock Valve is a crucial step in ensuring the stable and efficient operation of the entire system.
