PFA Male Threaded Tee (Male Tee): The "Cross-Border Interface Specialist" for High-Purity Fluid Systems

I. Product Definition and Core Function

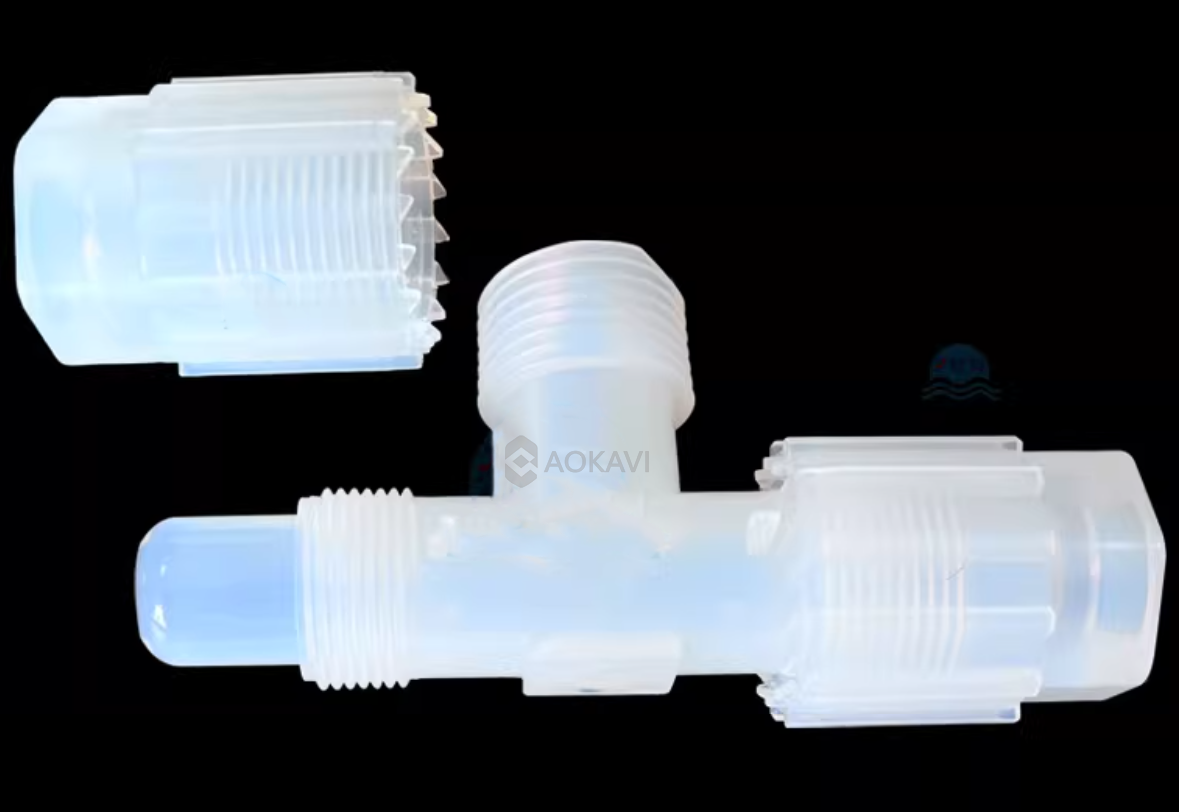

A PFA Male Threaded Tee (Male Tee) is a specialized tee connector with a "T"-shaped PFA body where one port is machined with external (male) threads, and the other two ports are typically identical quick-disconnect interfaces. Its core function is to act as a "cross-border interface" between high-purity or corrosive fluid systems and standard external equipment. It enables a PFA tubing system to connect for split-flow or combined-flow applications with devices featuring internal threaded ports, such as pumps, valves, instruments, or reactor fittings.

Unlike a standard equal-diameter tee with uniform ports, the Male Threaded Tee is specifically designed to solve the challenge of reliable connection between different materials and interface standards. One side provides a standard mechanical thread, while the other maintains a pristine PFA flow path. It functions like a professional "translator" and "seal," establishing a secure physical connection while ensuring complete chemical isolation, making it a critical component for system expansion and equipment integration.

II. Core Design Value

1. Enables Standard Equipment Integration: It provides standard metric (e.g., M) or imperial (e.g., NPT, BSP) male threads. This allows all-PFA systems to connect seamlessly and securely to globally prevalent metal or plastic equipment interfaces, significantly enhancing system compatibility and integrability.

2. Creates a Corrosion Isolation Barrier: The entire fluid wetted path, including the root of the threaded port, remains fully encapsulated by PFA material, forming a continuous "fluoropolymer barrier." This isolates corrosive fluids from direct contact with metal threads, preventing leakage and equipment damage from crevice corrosion while simultaneously eliminating the risk of metal ion contamination in ultra-pure fluids.

3. Simplifies Installation and Maintenance: This component integrates the two functions of "flow splitting/combining" and "thread adaptation." During installation, simply screw the threaded end into the equipment and connect the PFA tubing to the other two ports. This reduces the total number of system connections, lowers the potential for leaks, and facilitates easier disassembly for future maintenance.

4. Enhances System Structural Rigidity: Compared to all-soft-tube connections, the threaded connection of the Male Tee provides superior mechanical locking force and vibration resistance. This makes it particularly suitable for critical, high-stress connection points such as pump outlets or valve sides, ensuring long-term connection integrity.

III. Interface Details: The "One-Thread, Two-Quick" Hybrid Connection

PFA Male Tees typically employ a hybrid design: one end with male threads and the other two ends with quick-disconnect interfaces, balancing robust equipment-side connections with flexible tubing-side connections.

IV. Standard Size Range and Selection Reference

PFA Male Tees are used for precise control and equipment interfacing. Their nominal bore typically ranges from 1/4 inch (1/4″) to 1 inch (1″). Selection requires matching both the equipment thread standard and the tubing size.

Key Points for Selection and Installation:

• Thread Standard is Paramount: First, identify the exact thread type and size of the equipment port.

• Confirm Sealing Method: Determine the required sealing method (taper seal thread sealant or parallel thread with gasket).

• Torque Control: Always use a torque wrench and follow the manufacturer's torque specification to prevent thread damage.

• Flow Direction and Spatial Planning: Confirm the tee's orientation for the intended flow function (splitting or combining) and ensure proper spatial clearance for installation and tool access.

V. Core Application Fields

The PFA Male Tee is critical for interconnecting systems with standard equipment in high-purity and corrosive applications:

• Semiconductor Manufacturing: Connects PFA main lines to standard chemical inlet valves on process tools or to chemical supply drums in ultra-pure distribution systems.

• Biopharmaceuticals: Connects PFA transfer lines to ports on stainless steel bioreactors, sampling valves, or sanitary pumps in fermentation or buffer systems.

• Specialty Chemicals & Laboratories: Safely connects PFA tubing to threaded ports on reactors, metering pumps, or filters handling corrosive chemicals like HF or sulfuric acid.

• Analytical Instrumentation & Monitoring: Serves as the standard interface between online analyzers and sample pretreatment systems, ensuring a pure and reliable sample path.

Conclusion

The PFA Male Threaded Tee, with its hybrid design of "one rigid threaded end, two pristine flow paths," serves as the essential "Cross-Border Interface Specialist" in high-purity fluid systems. It is a standardized interface solution that masterfully solves the mechanical connection challenge to universal industrial equipment while preserving the PFA system's integrity. Correct selection and installation of the Male Threaded Tee are fundamental to building a reliable, pure, and easily integrated fluid system, forming the foundation for advanced process automation and control.
