In modern demanding fluid transfer systems, when rigid PVDF piping needs to achieve a reliable, convenient, and pure connection with equipment, instruments, or valves featuring threaded ports, a clever adapter fitting stands out—the PVDF Male Threaded Elbow. Designed to simplify transitions between different interface standards, this elbow, with its unique "one-end male thread, one-end compression fitting" structure and the excellent properties of PVDF material, serves as the "Interface Adapter and Reliable Connector" in fluid systems across industries like chemical processing, water treatment, and semiconductors.

1. Product Definition & Core Function

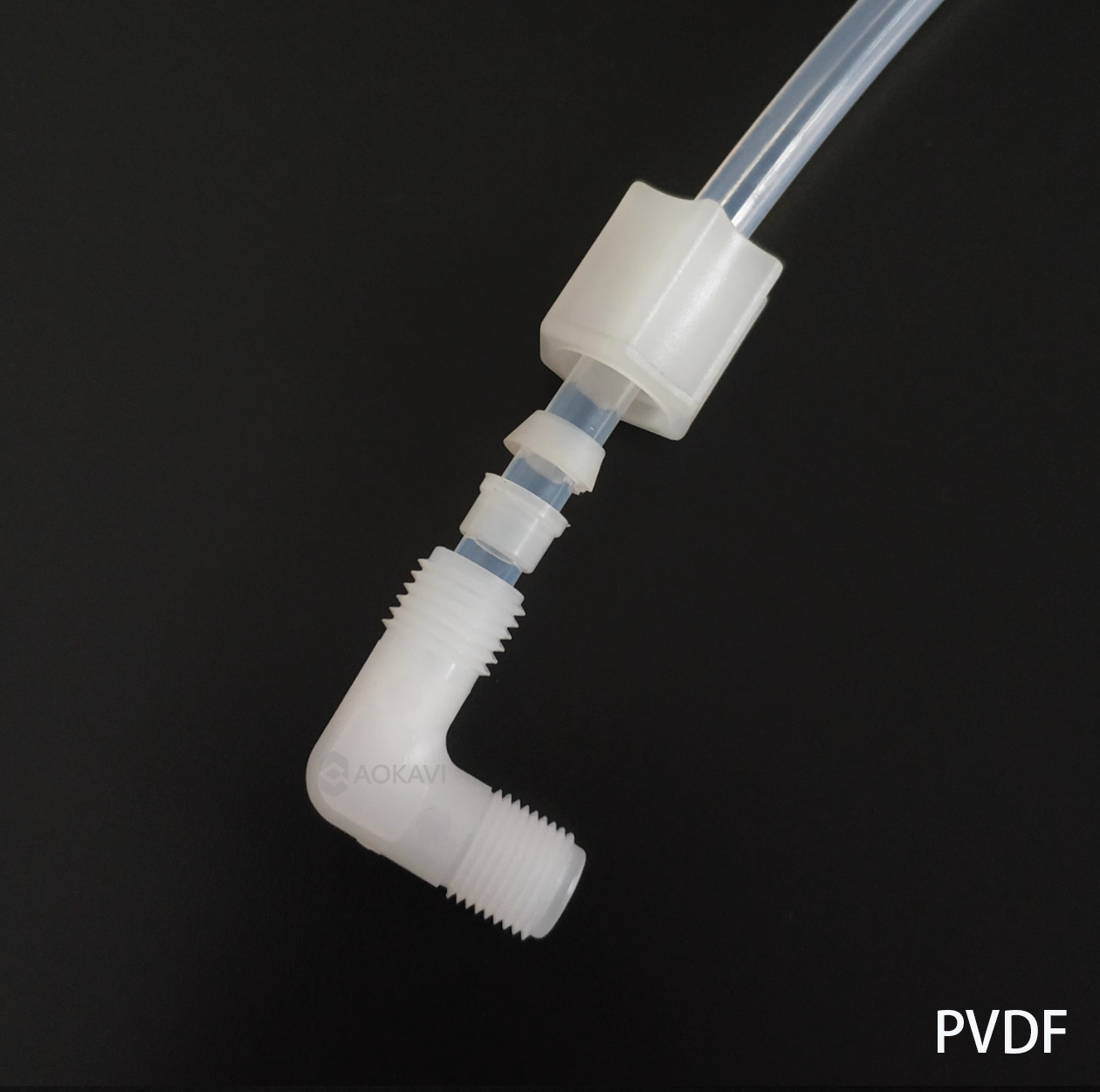

A PVDF Male Threaded Elbow is a 90-degree angled pipe fitting with two different interface types. One end features a male thread (typically NPT or BSPP), and the other end is a compression fitting (ferrule type) connection. The main body is constructed from high-performance Polyvinylidene Fluoride (PVDF). Its core function operates on two levels:

1. Interface Standard Conversion & Transition: It seamlessly bridges metal (or plastic) equipment ports with female threads and standard PVDF piping systems. It combines standardization transition from thread to compression fitting into a single component, eliminating complex adapter solutions.

2. Pure Fluid Path Angled Turn & Connection: While facilitating interface conversion, it also accomplishes a 90-degree change in fluid direction. The PVDF material ensures the fluid contacts only a highly clean, corrosion-resistant surface throughout the turn and the entire elbow, with no risk of contamination.

2. Core Design Value

• Ultra-Simple Integrated Design: The integrated "thread + compression" elbow design is the greatest practical advantage. It combines interface conversion, directional change, and piping connection into one unit, eliminating potential leak points and installation complexity from multiple separate fittings, significantly enhancing overall system reliability.

• PVDF Material Ensures Performance: PVDF provides excellent mechanical strength, fatigue resistance, and UV resistance, while withstanding corrosion from most halogens, oxidizers, strong acids, and weak bases. Its smooth surface resists scaling and is easy to clean, ensuring fluid purity.

• Convenient & Reliable Connection Methods:

  • Male Thread End: Offers a mature, robust mechanical connection method that can be directly screwed into equipment ports for a rigid seal.

  • Compression Fitting End: Utilizes the single or double ferrule bite principle. Simply tightening the nut with a wrench achieves a secure seal and grip between the PVDF tube and the fitting, enabling quick installation and good vibration resistance.

• Installation & Maintenance Flexibility: This design allows for fixed installation at the equipment end (threaded connection) while permitting relatively convenient disassembly or adjustment at the piping end (compression connection), providing flexibility for system positioning, future maintenance, or pipe replacement.

3. Interface Details: A Dual-Function Integrated Design

The two ends of the PVDF Male Threaded Elbow serve distinct purposes, together forming an efficient transition unit.

4. Standard Size Range & Selection Guide

PVDF Male Threaded Elbows are primarily used for interface conversion in small to medium-bore piping. Their standard thread end sizes range from 1/8 inch up to a maximum of 1 inch. The compression end corresponds to the matching PVDF tube OD. Selection must ensure compatibility for both thread standard and pipe size.

Key Selection & Installation Points:

1. Confirm Thread Standard: It is essential to identify the thread standard of the equipment port (e.g., American NPT, British BSPP/BSPT) and size. Never force together threads of different standards, as this will cause seal failure or thread damage.

2. Sealant Selection: Choose the appropriate thread sealant based on the fluid medium. For high-purity, contamination-sensitive systems, high-purity PTFE thread seal tape is recommended. For applications requiring stronger sealing or where disassembly is difficult, specialized liquid thread sealants can be used.

3. Tube Preparation: Compression fittings require the PVDF tube end to be cut squarely, deburred, and perpendicular to the tube axis. Improperly prepared tube ends are a primary cause of ferrule seal leaks.

4. Tightening Torque: Threaded connections should be tightened with a torque wrench to the recommended value to avoid over-tightening, which can strip PVDF threads or damage the equipment port. Tightening the compression nut should also follow the procedure of "snug tight - back off - final slight tighten" to ensure proper ferrule setting.

5. Core Application Fields

PVDF Male Threaded Elbows are crucial bridges for the convenient connection of equipment to high-purity piping systems, widely used in:

• Chemical & Process Industries: In systems handling corrosive media like acids, alkalis, halogens, and oxidizers, for right-angled connections between equipment (reactors, metering pumps, heat exchangers) and PVDF main piping.

• Ultrapure Water & Electronics: In UPW (Ultrapure Water) systems and wet process equipment, for clean connections between pumps, instruments, valves, and high-purity PVDF lines, preventing metallic ion contamination.

• Environmental Protection & Water Treatment: In wastewater treatment and chemical dosing systems, for reliable interface conversion between dosing pumps, pH/ORP meters, samplers, and corrosion-resistant piping.

• Laboratories & Pharmaceuticals: When setting up experimental apparatus, pilot lines, or auxiliary systems for pharmaceutical water, for converting glass or stainless steel equipment ports to standard piping interfaces, enabling flexible and reliable system integration.

Summary

The PVDF Male Threaded Elbow, with its ingenious "male thread + compression" design and the sturdy, corrosion-resistant nature of PVDF, elegantly solves the connection challenge between "equipment threaded ports and standard piping" in high-purity and corrosive fluid systems. It integrates interface conversion, directional change, and reliable sealing into one compact unit, exemplifying "simplifying complexity" in system design and installation.

Whether connecting to robust pump and valve equipment or integrating into pure and smooth PVDF piping systems, the correct selection of a PVDF Male Threaded Elbow can significantly enhance sealing reliability, installation efficiency, and maintenance convenience at the interface. It is more than just a simple pipe fitting; it is an indispensable "Interface Conversion Expert" in modern fluid engineering for achieving seamless integration of equipment and piping and building reliable fluid networks.
