I. Product Definition & Core Function

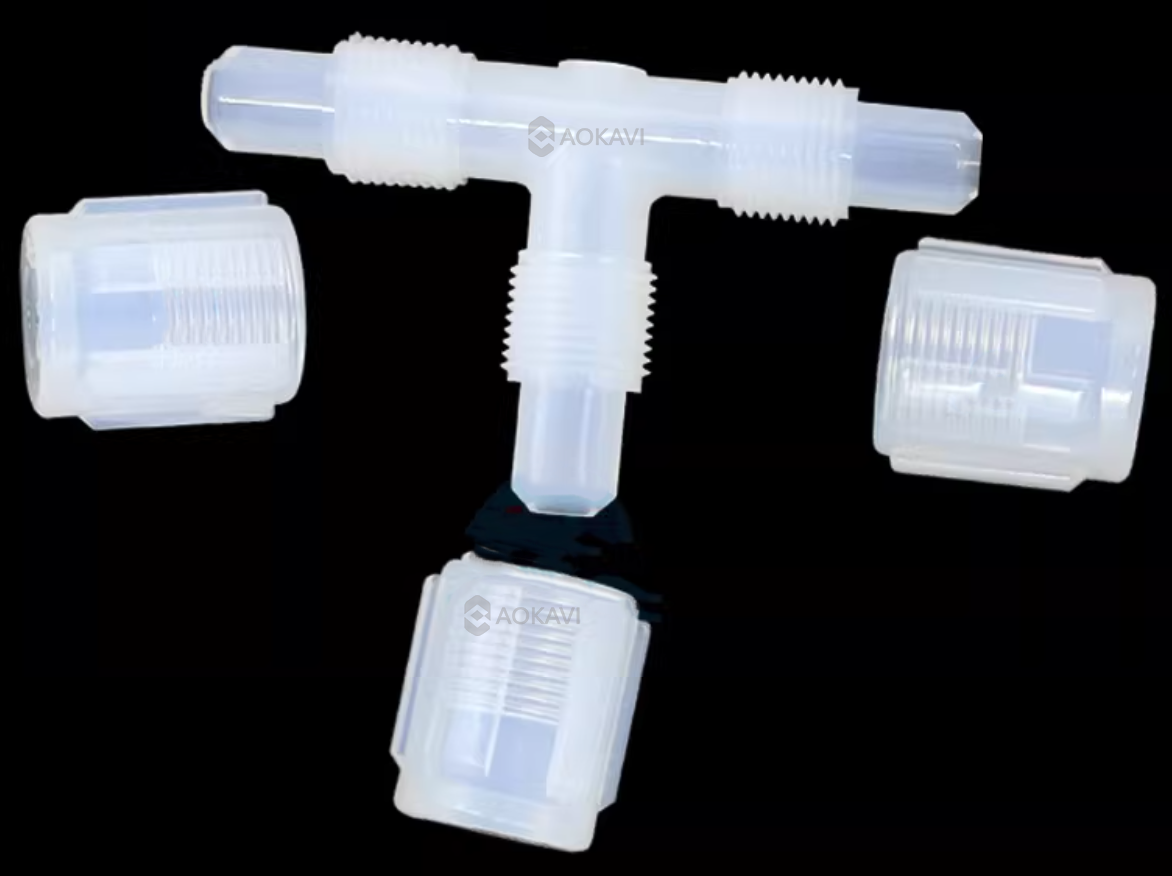

A PFA Equal-Diameter Tee is a piping fitting with three identically sized ports arranged in a "T" or "cross" configuration. As a core distribution component in high-purity and corrosive fluid systems, it enables the smooth splitting of one fluid stream into two (flow splitting) or the combining of two streams into one (flow combining), with all wetted surfaces constructed from high-purity PFA.

Unlike elbows, which change flow direction, the core mission of the equal-diameter tee is to manage the distribution and collection of fluids. It provides system designers with a fundamental building block for constructing complex flow path networks within a single, compact component, serving as the geometric and functional cornerstone for multi-branch, multi-task fluid systems.

II. Core Design Value

• Efficient Flow Path Distribution: Enables flow path topologies of single-input/dual-output (splitting) or dual-input/single-output (combining). It is central to building complex functional circuits such as recirculation loops, bypasses, sampling lines, and rinse paths.

• All-Fluoropolymer Barrier Ensures Purity: The entire flow channel is integrally molded from high-purity PFA, providing a completely inert environment for the fluid. This fundamentally eliminates the risk of metal ion contamination and electrochemical corrosion, making it ideal for semiconductor ultra-pure chemicals and biopharmaceutical process fluids.

• Compact Structure Saves Space: The pre-formed "T" structure achieves splitting or combining in the most direct way possible. Compared to using multiple elbows spliced together, it greatly simplifies layout, reduces connection points, improves system reliability, and conserves valuable space.

• Standardization & Maintainability: The use of standard interfaces facilitates modular system design and integration. When paired with quick-connect interfaces, specific branches can be easily isolated, maintained, or replaced.

III. Interface Details: Two Choices for Reliable Connection

The three ports of a PFA Equal-Diameter Tee typically use the same connection method to ensure consistency and interchangeability. Both mainstream interface methods offer excellent sealing and reliability.

IV. Standard Size Range & Selection Reference

PFA Equal-Diameter Tees are primarily used for the distribution and control of precise fluid flows. Their nominal bore typically ranges from 1/4 inch up to a maximum of 1 inch. Selection is based on system flow rate and branch requirements.

Key Selection & Installation Points:

1. Define Flow Direction & Function: Clearly define the tee's "flow direction" (splitting or combining) during design and ensure installation orientation matches the design intent.

2. Consider Pressure Balance: In splitting applications, note that different branch resistances may affect flow distribution. Valves may be needed for adjustment if necessary.

3. Plan Spatial Layout: Tees alter the spatial direction of piping. Consider their 3D dimensions before installation to ensure no interference with surrounding equipment.

4. Interface Consistency: Ensure the connection type (Flared/Beaded) and size of all three ports exactly match the tubing to be connected.

V. Core Application Fields

The PFA Equal-Diameter Tee is the foundation for building complex fluid networks, widely used in:

• Semiconductor Manufacturing: In ultra-pure chemical distribution systems, for creating parallel supply branches to multiple process tools, or as combining points for chemical mixing and dilution.

• Biopharmaceuticals: In media/buffer preparation and distribution systems, for splitting flow to multiple bioreactors or chromatography columns; in Clean-in-Place (CIP) loops for distributing rinse solutions.

• Chemical & Laboratory: Setting up continuous flow reactions, multi-path parallel experiments, or complex sample handling flow paths to achieve split-feed reagent introduction or combined product collection.

• High-Purity Water Systems: In distribution loops, providing branch water supply to multiple points of use (e.g., equipment water inlets, rinse stations).

Summary

The PFA Equal-Diameter Tee, with its "split or combine flow" topological function and "all-fluoropolymer flow path" material guarantee, plays the indispensable role of the "Intelligent Distribution Hub" in high-purity and corrosive fluid systems. It provides the most fundamental yet critical connecting unit for building complex, reliable flow networks. Whether pursuing permanent, stable systems with Flared Type connections or highly flexible modules with Beaded Type connections, the correct application of equal-diameter tees can significantly enhance a system's functionality, scalability, and overall efficiency. It is a core component in modern fluid system engineering for achieving refined flow management.
