I. Product Definition & Core Function

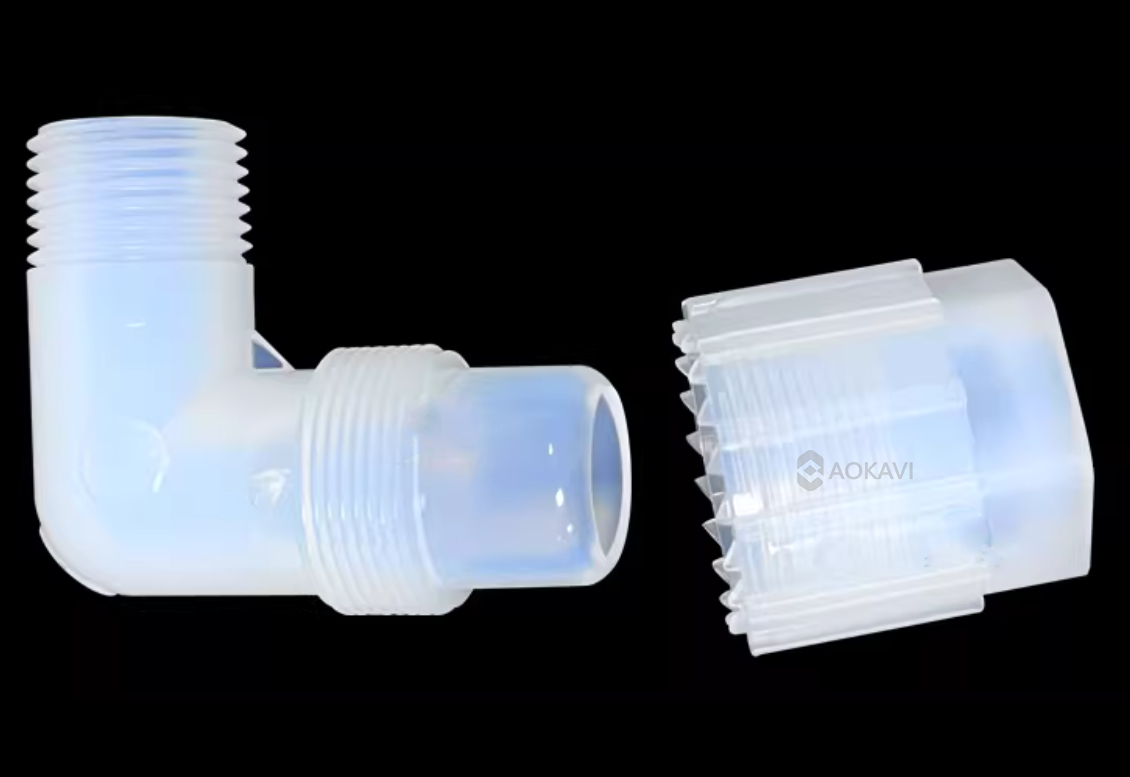

A PFA Male Elbow is a specialized fitting featuring standard male threads on one end and a PFA tubing interface on the other, forming a 90-degree (or 45-degree) bend. It combines the "metal-to-PFA transition" capability of a PFA Male Connector with the "flow direction change" function of an Elbow into a single unit. This makes it the ideal component for connecting to threaded metal equipment ports while simultaneously guiding the PFA tubing system's direction.

Its core value lies in solving a common challenge: when PFA tubing needs to connect to a metal threaded port located on the side or in an inconvenient position, it not only provides safe material transition (all-PFA flow path) but also optimizes the piping route through its pre-formed bend. This prevents stress concentration, flow restriction, or potential damage caused by forcibly bending the soft tubing.

II. Core Design Value

• Dual-Function Integration: A single component accomplishes both "material transition" (PFA to metal) and "spatial re-direction", simplifying system design, reducing the number of connection points, and enhancing overall reliability.

• Safe, Inert Flow Path: The fitting body is made of high-purity PFA. The fluid flow path is constructed entirely from PFA. Only the male threads mechanically engage with the female metal threads of the equipment, fundamentally preventing fluid contact with metal and thus corrosion and ionic contamination.

• Optimized Spatial Layout: The pre-formed 90-degree or 45-degree angle allows for neat, compact connections to side- or rear-mounted equipment ports, significantly improving the aesthetics and rationality of internal equipment or panel layouts.

• Standardization & Convenience: The threaded end adheres to international standards (e.g., NPT, BSP) for direct screwing into equipment. The PFA tubing end employs mature connection methods, making installation and maintenance relatively straightforward.

III. Interface Details: Threaded End vs. Tubing End

The PFA Male Elbow features two distinct ends, each serving a different connection purpose.

1. Threaded End:

   • Type: Standard Male Threads.

   • Function: Screws directly into the female threaded port of metal equipment (e.g., pump bodies, valves, instruments, tank fittings). This is key to achieving the "metal-to-PFA" transition.

   • Selection Key: The thread standard (e.g., NPT, BSP) and size of the equipment port must be accurately identified to ensure a proper match.

2. PFA Tubing End:

   • Function: Connects to PFA soft tubing to complete the all-fluoropolymer flow path. It primarily utilizes the following two mainstream, reliable methods:

   • Flared Type: Provides a permanent, high-pressure rigid connection, suitable for main lines and high-vibration environments.

   • Beaded / Ball & Socket Type: Provides a quick-connect/disconnect flexible connection, facilitating maintenance, cleaning, and module replacement.

IV. Standard Size Range & Selection Reference

PFA Male Elbows are primarily used for precise fluid control. Their nominal bore typically starts from 1/4 inch up to a maximum of 1 inch. Selection requires simultaneous confirmation of the thread specification and the PFA tubing end specification.

Key Selection & Installation Tips:

1. Thread Precision Matching: Always use a thread gauge to confirm the equipment port's thread type and size. Incorrect matching will cause seal failure and thread damage.

2. Apply Thread Sealant: Wrap an appropriate amount of PTFE thread seal tape or apply specialized sealant paste on the male threads to ensure a leak-proof seal and prevent galling between PFA and metal.

3. Hand-Start Alignment: When screwing into the metal port, start by hand-tightening several turns to ensure proper thread alignment before using a tool to tighten evenly, avoiding cross-threading or misaligned force.

4. Tubing End Matching: Select Flared or Beaded type based on system maintenance needs and ensure complete compatibility with the PFA tubing OD and installation tools.

V. Core Application Fields

The PFA Male Elbow is a critical component for achieving "side connections" and "space optimization" in the following fields:

• Semiconductor Manufacturing: Connecting PFA ultra-pure chemical lines to stainless steel valves, control unit interfaces on the sides or backs of wafer processing equipment.

• Biopharmaceuticals: Used to connect side-mounted sampling ports or instrument interfaces on stainless steel bioreactors or mix vessels with PFA transfer lines.

• Chemical Processing: Safely transferring corrosive media from PFA tubing to threaded nozzles or inspection ports on the sides of reactors or columns.

• Water Treatment & Analysis: Connecting to side ports of reverse osmosis membrane housings, UV sterilizer fittings, or side sample inlets of online analyzers.

Summary

The PFA Male Elbow, with its unique combination of "male thread connection" and a "pre-formed bend", serves as the "Dual-Task Specialist" in high-purity and corrosive fluid systems for connecting to metal side ports and PFA tubing. It cleverly integrates spatial re-direction needs with safe material transition, offering system designers significant layout flexibility and connection reliability. Correctly selecting and installing this component is a wise step in building a modern fluid system that is safe, efficient, tidy, and compact.
