PFA Reducing Union Elbow: The "Space & Flow Optimizer" for High-Purity Piping

Issuing time:2026-01-04 11:51

I. Product Definition & Core Function

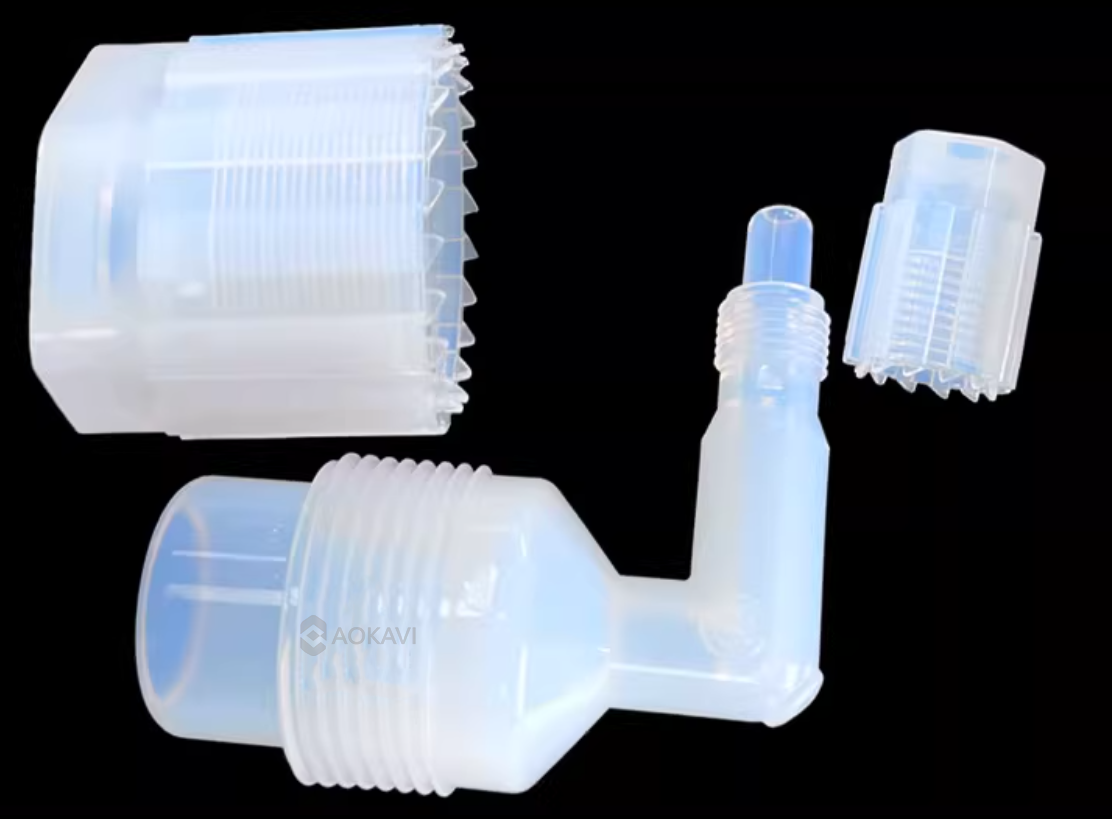

The PFA Reducing Union Elbow is a specialized fitting with different connection sizes on each end, forming a standard 90-degree (or 45-degree) bend. It integrates two core functions within a single component: changing pipeline direction and changing pipe size. Its flow path is molded from high-purity PFA in one piece, ensuring the medium contacts only inert material. It is an efficient solution for addressing complex spatial layout and flow matching challenges.

Compared to an equal-diameter elbow, the reducing elbow is a more advanced "system adapter." It not only guides fluid flow around a corner but also enables a smooth transition between pipeline sizes. It is commonly used to connect equipment ports of different specifications or for intentional flow regulation and pressure management at specific points in a system.

II. Core Design Value

  • Dual-Function Integration: Simultaneously accomplishes both directional change and pipe size transition within one compact fitting, saving installation space, simplifying system structure, and reducing the number of connection points, thereby lowering potential leak risks.

  • Smooth Flow Path Transition: A carefully designed tapered transition flow path minimizes turbulence, pressure drop, and potential dead zones where fluid could stagnate, maintaining fluid stability and purity—critical for semiconductor chemicals and biologics.

  • Unmatched Material Safety: All wetted surfaces are high-purity PFA, providing exceptional chemical corrosion resistance and contamination prevention, completely eliminating the risk of metal ion leaching.

  • Enhanced System Design Flexibility: Provides engineers with crucial connection freedom when designing high-purity or corrosive fluid systems, allowing elegant solutions for port size mismatches between equipment and optimization of local flow velocity.

III. Two Core Interface Methods

The reducing elbow typically uses the same connection method on both ends, but with different sizes, offering users a consistent connection experience and high reliability.

Feature DimensionFlared TypeBeaded / Ball & Socket Type
Working PrincipleA specialized tool heats and flares the PFA tube end, which mates with the fitting's conical seat. Tightening a nut generates strong radial compression for a permanent seal.A solid PFA bead is pressed onto the PFA soft tube end, which snaps into the fitting's spherical socket. A sliding lock sleeve enables a quick "click" connection and seal.
Connection NaturePermanent, Rigid Connection. Extremely high strength, forming a solid unit with excellent pressure rating and superior resistance to vibration and axial pull forces. Suitable for critical process lines.Repeatably Connectable/Disconnectable, Flexible Connection. The ball-and-socket fit allows slight deflection, easing installation alignment and stress absorption. Exceptionally easy to maintain. Ideal for points requiring frequent access.

Optimal Application

Scenario

Permanent main line installations, high-pressure or high-purity systems, environments with constant vibration, critical process sections where frequent disassembly is not permitted.Modules requiring frequent disassembly for cleaning (e.g., bioreactors, filtration systems), single-use systems, equipment commissioning and maintenance phases, areas with space constraints requiring flexible piping.

IV. Standard Size Range & Selection Reference

PFA Reducing Union Elbows are primarily used for adaptation and optimization in precision fluid systems. Their size combinations typically start from 1/4 inch, up to a maximum of 1 inch. Common reducing combinations follow adjacent or closely related size rules.

Typical Reducing Combination

(Large x Small)

Corresponding PFA

Tubing OD Range

Typical Bend

Angles

Typical Application Scenarios
1/2” x 3/8”Large: 14-18mm / Small: 10-14mm90°Connecting a reactor outlet (1/2") line to a downstream, smaller transfer or sampling line (3/8") while changing direction.
3/4” x 1/2”Large: 20-25mm / Small: 14-18mm90°Turning and reducing connection when distributing fluid from a main header (3/4") to branch equipment (1/2" port).
3/8” x 1/4”Large: 10-14mm / Small: 6-10mm90°, 45°In analytical instruments (e.g., HPLC), connecting tubing from the pump (3/8") to a smaller injection valve or column (1/4") port.
1” x 3/4”Large: 25-32mm / Small: 20-25mm90°Transition and turn for connecting a large tank outlet line (1") to a pump inlet or smaller process line (3/4").
1/2” x 1/4”Large: 14-18mm / Small: 6-10mm90°Achieving significant pipe size change and directional turn within compact valve manifolds or distribution modules, used for metering or control branches.

Key Selection & Installation Points:

  1. Confirm Flow Direction: Identify the reducing direction (large-to-small or small-to-large) and bend angle (90° or 45°). Ensure installation aligns with the intended flow direction.

  2. Size Matching: Carefully verify the size on both ends, ensuring they precisely match the outer diameter of the PFA tubing to be connected. Use the correct installation tools.

  3. Space Planning: Reducing elbows generally occupy more space than equal-diameter elbows. Consider their 3D dimensions and centerline radius in advance to avoid installation interference.

  4. Process Considerations: Understand the impact of the size reduction on local flow velocity and pressure drop, ensuring it is suitable for the specific process requirements.

V. Core Application Fields

The PFA Reducing Union Elbow is a vital tool for tackling complex system integration challenges, widely used in:

  • Semiconductor Manufacturing: Within chemical distribution systems, connecting valves, pump bodies, and process chamber ports of different sizes, achieving simultaneous flow direction and pipe size conversion in compact spaces.

  • Biopharmaceuticals: For connections between bioreactors, fluid preparation systems, and downstream filtration, chromatography, or filling lines, adapting to different equipment port sizes and facilitating equipment layout.

  • Specialty Chemical Processing: In pilot plants or experimental setups, connecting reactors, heat exchangers, and tanks of different specifications for safe transfer of corrosive media.

  • Analytical Instruments & Laboratories: Constructing complex sample preparation or reagent addition flow paths, enabling adaptation of tubing sizes and directional guidance between different modules.

Summary

The PFA Reducing Union Elbow, through its ingenious design of "synchronized direction and size change," plays the key role of a "Space & Flow Optimizer" in high-purity and corrosive fluid systems. It transcends the limitations of single-function fittings, offering a system-level solution through highly integrated design. Whether building permanent, highly reliable systems based on Flared Type connections or deploying flexible, maintainable modules based on Beaded Type connections, the correct selection and use of reducing elbows can significantly enhance system integration simplicity, safety, and overall efficiency. It is the intelligent choice for realizing modern, compact fluid handling design.
