PFA Equal-Diameter Elbow (UNION ELBOW): The "Geometric Guide" for Direction and Stress Management in High-Purity Piping

Issuing time:2026-01-04 10:21

  I. Product Definition & Core Function

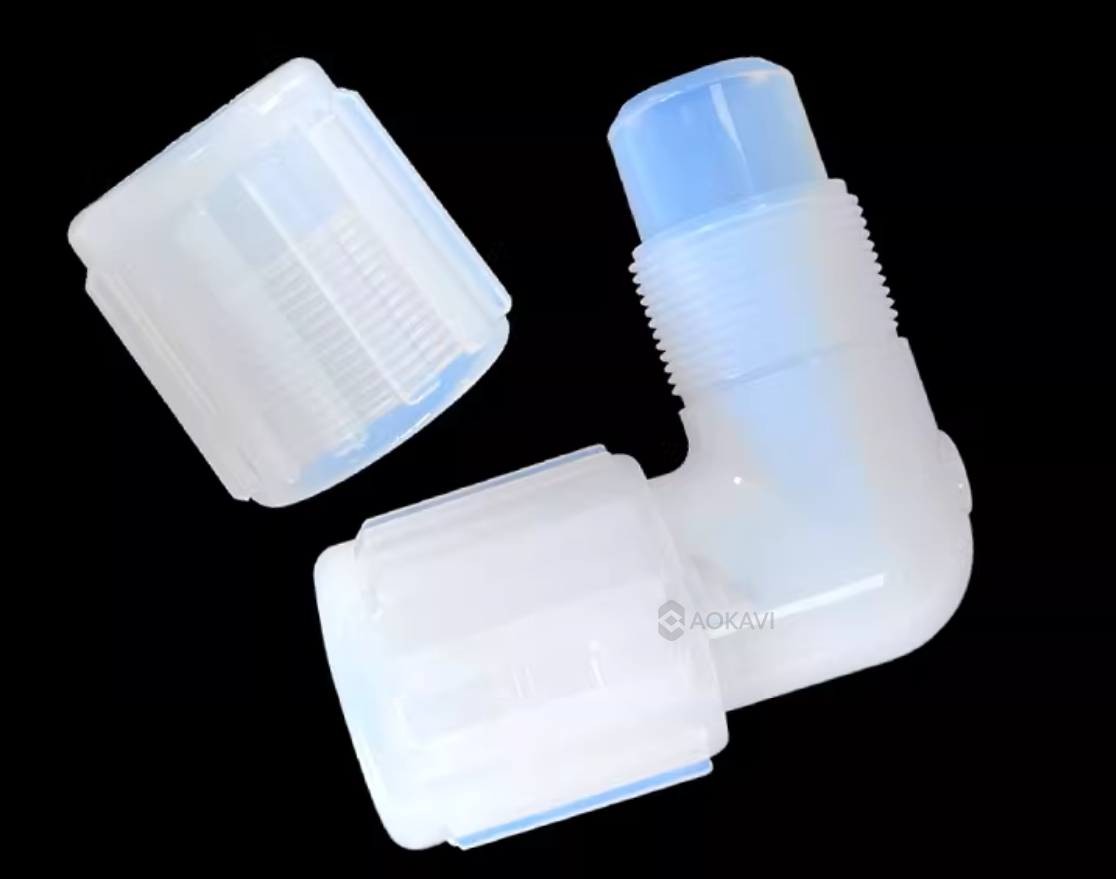

The PFA Equal-Diameter Elbow is a standard 90-degree (or 45-degree) fitting with identical connection sizes on both ends, designed to change the direction of PFA tubing runs. Its core design lies in combining the chemical inertness of PFA with a precisely molded fixed angle, providing a reliable solution for directional changes in high-purity or corrosive fluid systems while maintaining the integrity of an all-fluoropolymer flow path.

Unlike straight connectors, the equal-diameter elbow is specifically engineered to address space constraints and piping layout challenges. It guides fluid flow in a perpendicular or specific angular direction, preventing sharp bends or kinks in the tubing. Additionally, it helps absorb some of the stress induced by thermal expansion/contraction or equipment vibration, making it a crucial geometric component for building compact, efficient, and reliable fluid systems.

II. Core Design Value

  • Precise Flow Direction Change: Provides standard 90-degree or 45-degree turns, enabling simple, predictable piping routing and optimizing the use of internal equipment space.

  • All-Fluoropolymer Barrier Protection: The fitting body and internal flow path are integrally molded or welded from high-purity PFA, ensuring fluid contact only with PFA material throughout its journey. This eliminates the risk of metal ion contamination, making it suitable for ultra-pure chemical and bioprocessing applications.

  • Mechanical Stress Relief: Compared to forcing a bend in PFA tubing, using a pre-formed elbow reduces localized stress concentration, extends the service life of the piping system, and lowers the risk of leaks due to stress fatigue.

  • Standardization & Maintainability: The use of standard interfaces increases system modularity. When combined with quick-connect designs, it facilitates the repair, replacement, or reconfiguration of specific piping sections.

III. Two Core Interface Methods

Both ends of a PFA Equal-Diameter Elbow typically employ the same connection method for consistency. The following two methods are the mainstream choices ensuring high reliability:

Feature DimensionFlared TypeBeaded / Ball & Socket Type
Working PrincipleThe PFA tube end is heated and flared into a conical shape using a specialized tool. It mates tightly with the conical seat on the fitting body, and a nut is tightened to generate strong radial compression for sealing.A solid PFA bead is pressed onto the end of the PFA soft tubing. This beaded end snaps into a precision spherical socket on the fitting and is locked in place by sliding a lock sleeve, creating a quick "click" connection and seal.
Connection NaturePermanent, Rigid Connection. Extremely high connection strength, forming a solid unit with excellent pressure rating and superior resistance to vibration and axial pull forces.Repeatably Connectable/Disconnectable, Flexible Connection. The ball-and-socket fit allows for slight angular deflection, easing installation alignment and absorbing vibration/stress. Exceptionally easy to maintain.
Optimal Application ScenarioPermanent installations, main lines in high-pressure or high-purity systems, environments with constant vibration.Modules requiring frequent disassembly for cleaning (e.g., bioreactors, chromatography systems), single-use systems, equipment commissioning and maintenance phases.

IV. Standard Size Range & Selection Reference

PFA Equal-Diameter Elbows are primarily used for precise fluid control and distribution. Their bore size typically ranges from 1/4 inch up to a maximum of 1 inch. Selection must match the system's pipe size and the required bend angle.

Nominal Bore

(Inch)

Corresponding PFA

Tubing OD Range

Typical Bend AnglesTypical Application Scenarios
1/4”6mm, 8mm, 10mm90°, 45°Compact internal flow paths in analytical instruments (e.g., LC-MS); vertical connections between sensors, valves.
3/8”10mm, 12mm, 14mm90°, 45°Internal wiring within chemical distribution system cabinets; piping connections navigating around obstacles in small equipment.
1/2”14mm, 16mm, 18mm90° (most common)Spatial re-direction between small/medium process modules; directional changes within purified water distribution loops.
3/4”20mm, 22mm, 25mm90°Routing of auxiliary lines (cooling water, process gases) within equipment frames.
1”25mm, 28mm, 32mm90°Direction change for feed or discharge lines in large systems; used as an elbow on tank outlet piping.

Key Selection & Installation Points:

  1. Angle Selection: Determine whether a 90-degree right-angle turn or a 45-degree gentle turn is needed. 90-degree is most common for perpendicular changes; 45-degree helps ease flow direction change and reduce pressure drop.

  2. Space Verification: Always check the elbow's centerline radius and the required clearance after installation to avoid interference with other components.

  3. Stress Management: Even when using elbows, design appropriate slack into the piping run to avoid damaging the fitting or tubing due to installation stress from pulling or forcing.

  4. Interface Consistency: Ensure the connection type (Flared/Beaded) and size on both ends of the elbow exactly match the tubing to be connected.

V. Core Application Fields

PFA Equal-Diameter Elbows are key to achieving compact system layouts and reliable flow paths, widely used in:

  • Semiconductor Manufacturing: Within the chemical distribution units of wafer cleaning and etching equipment, for neat, directional routing of dense tubing in confined spaces.

  • Biopharmaceuticals: Used in the complex network of media, buffer, and product harvest lines around bioreactors, fermenters, and chromatography systems, facilitating maintenance and cleaning.

  • Chemical Synthesis & Laboratories: In experimental setups or pilot systems, to guide the flow of corrosive solvents or reagents, constructing flexible and safe flow paths.

  • High-Purity Analysis Systems: Within sampling systems or online analyzer flow paths, to achieve compact flow direction changes, minimizing dead volume and contamination risk.

Summary

The PFA Equal-Diameter Elbow, through its integrated design of "precise guidance" and an "all-fluoropolymer flow path", serves as the essential "Geometric Guide" for managing piping direction and stress in high-purity and corrosive fluid systems. Whether building robust, permanent systems with Flared Type connections or flexible, maintainable modules with Beaded Type connections, it provides a standardized, high-integrity solution for directional changes. Correct application of elbows not only optimizes spatial layout but also enhances the overall reliability, safety, and maintainability of the fluid handling system.
