PFA REDUCING UNION CONNECTOR: The "Intelligent Transition" in High-Purity Fluid Systems and a Sizing Guide

Issuing time:2025-12-29 10:14

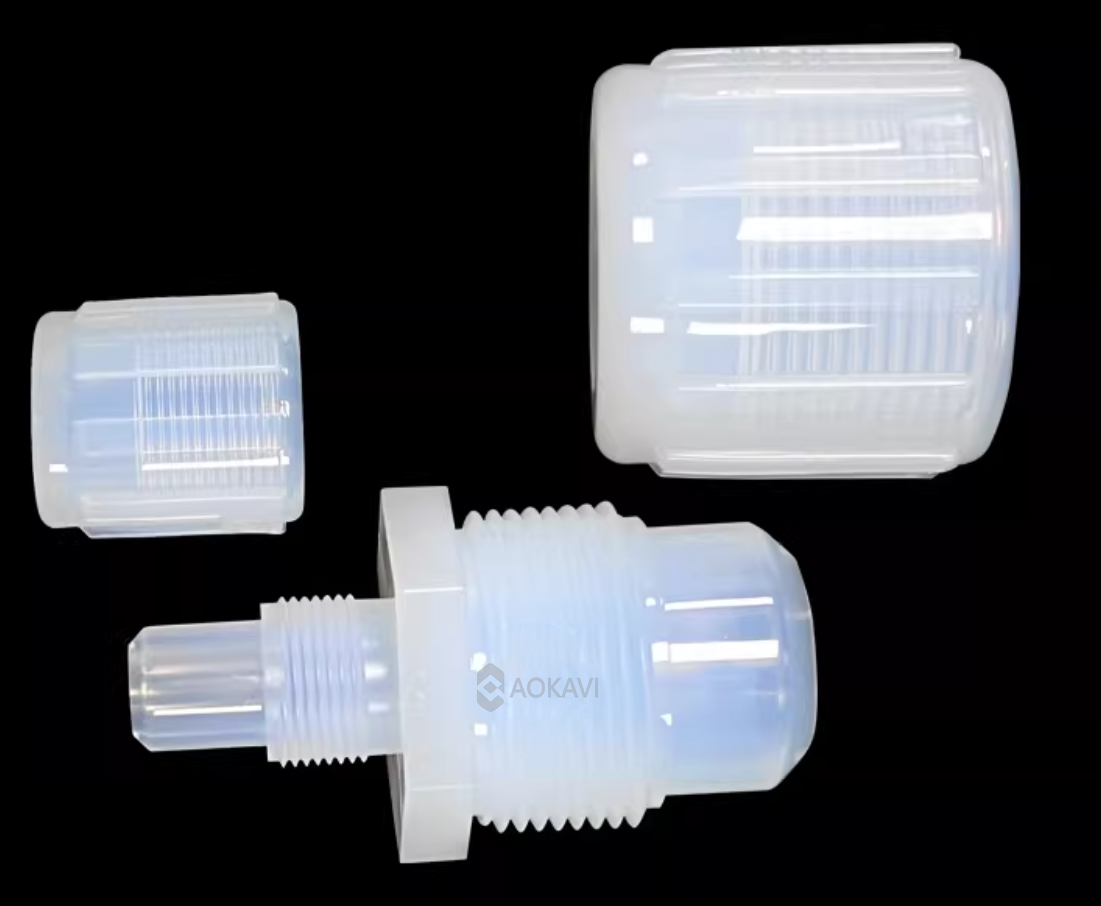

In ultra-high purity fluid systems, such as those in semiconductors and biopharmaceuticals, pipeline design often requires changes in tube diameter due to variations in flow rate, pressure, or equipment interfaces. A connector that enables a perfect, contamination-free transition between different tube diameters is therefore crucial. The PFA (Perfluoroalkoxy) Reducing Straight Connector is designed for this exact purpose. Unlike an equal-diameter connector, it features a larger bore on one end and a smaller bore on the other, specifically engineered to optimize system flow resistance and match equipment with different port sizes. It primarily utilizes the same two highly reliable interface methods: the Flared Type and the Beaded (Ball and Socket) Type.

I. Core Definition & Value: Why Use a PFA Reducing Connector?

This is a reducer fitting manufactured from high-purity, translucent PFA material, used to connect two segments of PFA soft tubing with different outer diameters but the same material. Its core value lies in:

  • System Optimization: Connecting a smaller branch line (e.g., for an instrument or sampling valve) to a main line, or connecting a small-diameter pump outlet to a larger transfer line. This effectively optimizes local flow and pressure, reducing unnecessary pressure drops and energy consumption.

  • Interface Matching: Directly solves mismatches between equipment/valve port sizes and main line sizes, eliminating the need for multiple adapters, simplifying system structure, and enhancing reliability.

  • Purity Preservation: The PFA material, identical to the tubing, ensures consistent chemical inertness across the entire transition from large to small tube, with no risk of metal ion leaching, safeguarding the absolute purity of semiconductor-grade and pharmaceutical-grade fluids.

II. Detailed Comparison of the Two Interface Types: Flared vs. Beaded

PFA reducing connectors typically offer only these two proven interface technologies. The choice depends on the core requirements of the application.

FeatureFlared TypeBeaded / Ball & Socket Type
Working PrincipleA specialized tool heats and expands the PFA tube end into a flared bell mouth. A nut compresses it against the connector's tapered face for a face seal.A PFA bead is cold-pressed or heat-fused onto the PFA tube end. It inserts into a spherical socket in the connector and is locked with a sliding sleeve.
Connection NatureRigid, permanent connection. Excellent resistance to vibration and pull-out, approximating a monolithic pipeline.Flexible, quick-connect/disconnect. Allows slight angular deflection to absorb stress, facilitating maintenance and replacement.
Sealing ReliabilityVery High. Multi-mechanical compression seal with excellent pressure rating, especially suited for high-pressure/pulse scenarios.High. Relies on precision-machined ball-and-socket seal. Sensitive to axial pull-out force; the lock sleeve must be fully engaged.
Installation RequirementHigh. Requires specialized heating/flaring tools and skilled operation. Flare quality is critical to seal success.Medium. Requires a专用 tool to pre-form the tube end with the bead. On-site connection is very simple, quick, and tool-free.
Typical ApplicationMain system lines, connections to high-vibration equipment, permanent piping not intended for disassembly.Modules requiring frequent cleaning/replacement (e.g., filters, columns), equipment debugging ports, single-use systems.

III. Detailed Specifications & Selection Guide for Common Reducing Combinations

The following details the seven common reducing combinations. Key Selection Rule: Always confirm the outer diameter of the PFA soft tubing corresponding to EACH end of the connector.

Reducing Combo

(Inch)

Reducing Combo

(mm, approx.)

Compatible PFA Tubing

OD Example

Primary Design Purpose &

Typical Application

3/8” x 1/4”9.5mm x 6.4mmLarge End (3/8″): 12mm, 14mm
Small End (1/4″): 8mm, 10mm		Main to Branch: Deriving a 1/4″ branch (for gauge, sensor, small sampling valve) from a 3/8″ main process line (coolant, reagent transfer). Common in semiconductor equipment internal piping.
1/2” x 1/4”12.7mm x 6.4mmLarge End (1/2″): 16mm, 18mm
Small End (1/4″): 8mm, 10mm		Equipment Interface Adaptation: Transitioning from a 1/2″ tank outlet or pump outlet to connect to a 1/4″ inlet line of精密 analytical instruments (e.g., HPLC, ICP-MS) for flow rate adaptation.
3/8” x 1/2”9.5mm x 12.7mmLarge End (1/2″): 16mm, 18mm
Small End (3/8″): 12mm, 14mm		Pump Outlet Buffer: Expanding from a small-flow, high-pressure pump (3/8″ outlet) to a 1/2″ line to reduce flow velocity and line pressure drop. Often used in chromatography or precise dosing systems.
3/8” x 3/4”9.5mm x 19.1mmLarge End (3/4″): 22mm, 25mm
Small End (3/8″): 12mm, 14mm		Small Flow Injection into Large System: Injecting a 3/8″ additive or catalyst line into a 3/4″ main process stream. Ensures stable flow transition before mixing.
3/4” x 1/2”19.1mm x 12.7mmLarge End (3/4″): 22mm, 25mm
Small End (1/2″): 16mm, 18mm		Main Line Reduction: Reducing a 3/4″ distribution main to 1/2″ in space-constrained areas to connect to more downstream equipment or valve manifolds.
1” x 1/2”25.4mm x 12.7mmLarge End (1″): 28mm, 32mm
Small End (1/2″): 16mm, 18mm		Tank Outlet to Distribution Network: Connecting a 1″ storage tank or main header outlet to a 1/2″ facility-level distribution loop. A key node in central supply systems.
1” x 3/4”25.4mm x 19.1mmLarge End (1″): 28mm, 32mm
Small End (3/4″): 22mm, 25mm		Flow Staged Distribution: In large ultrapure water (UPW) or cleaning systems, distributing flow from a 1″ main header to 3/4″ secondary zone branches for hierarchical flow management.

Critical Installation Notes:

  1. Flow Direction Suggestion: For reducing connectors, conventional design assumes flow from the large port to the small port for restriction, or small to large for expansion. Most are bidirectional, but for sensitive systems, consult the manufacturer for optimal flow direction.

  2. Tube End Preparation: Both Flared and Beaded types require professional pre-forming of the PFA tube end (flaring or beading). Always use专用 tools matched to the connector brand and follow procedures strictly. This is prerequisite for absolute sealing reliability.

  3. Size Verification: Before ordering and installation, double-check that the specification codes on both ends of the connector exactly match the outer diameters of the PFA软 tubing you are using.

IV. Core Application Fields

PFA reducing straight connectors are the "smart joints" for building complex, efficient, high-purity fluid systems. They are widely used in:

  • Semiconductor Manufacturing: In UPW, CMP slurry, and etchant distribution systems for connections between mains and branches, and equipment with different line sizes.

  • Biopharmaceuticals: Enabling seamless, reduced-diameter connections between different modules in single-use bioreactors, chromatography systems, and media preparation.

  • Fine Chemicals: Precisely controlling flow and mixing efficiency at diameter change points in processes like catalyst addition or micro-reagent feeding.

Conclusion

The PFA reducing straight connector, through the two classic interface technologies—Flared and Beaded—and its carefully designed reducing combinations, provides vital design flexibility for high-purity fluid system engineers. It is not merely a simple size adapter but a core functional component for achieving hydraulic optimization, equipment compatibility, and maintenance ease. Correctly selecting from the seven available specifications and matching the appropriate interface method will elevate your fluid system to new heights in purity, reliability, and efficiency.
