PFA UNION  CONNECTOR: The "Seamless Guardian" of High-Purity Fluid Systems and an Interface Selection Guide

In fields with near-absolute demands for fluid purity, such as semiconductors, biopharmaceuticals, and high-end analytical instruments, the connection of pipelines is not merely a simple physical coupling but a critical line of defense against contamination and for ensuring system integrity. Among various materials, Perfluoroalkoxy (PFA), with its exceptional purity surpassing standard PTFE, outstanding temperature resistance, and higher mechanical strength, has become the material of choice for ultra-pure chemical delivery systems. Among PFA components, the PFA Equal-Diameter Straight Connector is the most fundamental and critical connection element. It typically offers only two sophisticated interface methods: the Flared Type and the Beaded (or Ball and Socket) Type. These two designs profoundly represent different philosophies in the balance between ultimate reliability and operational convenience.

1. Core Definition: What is a PFA Equal-Diameter Straight Connector?

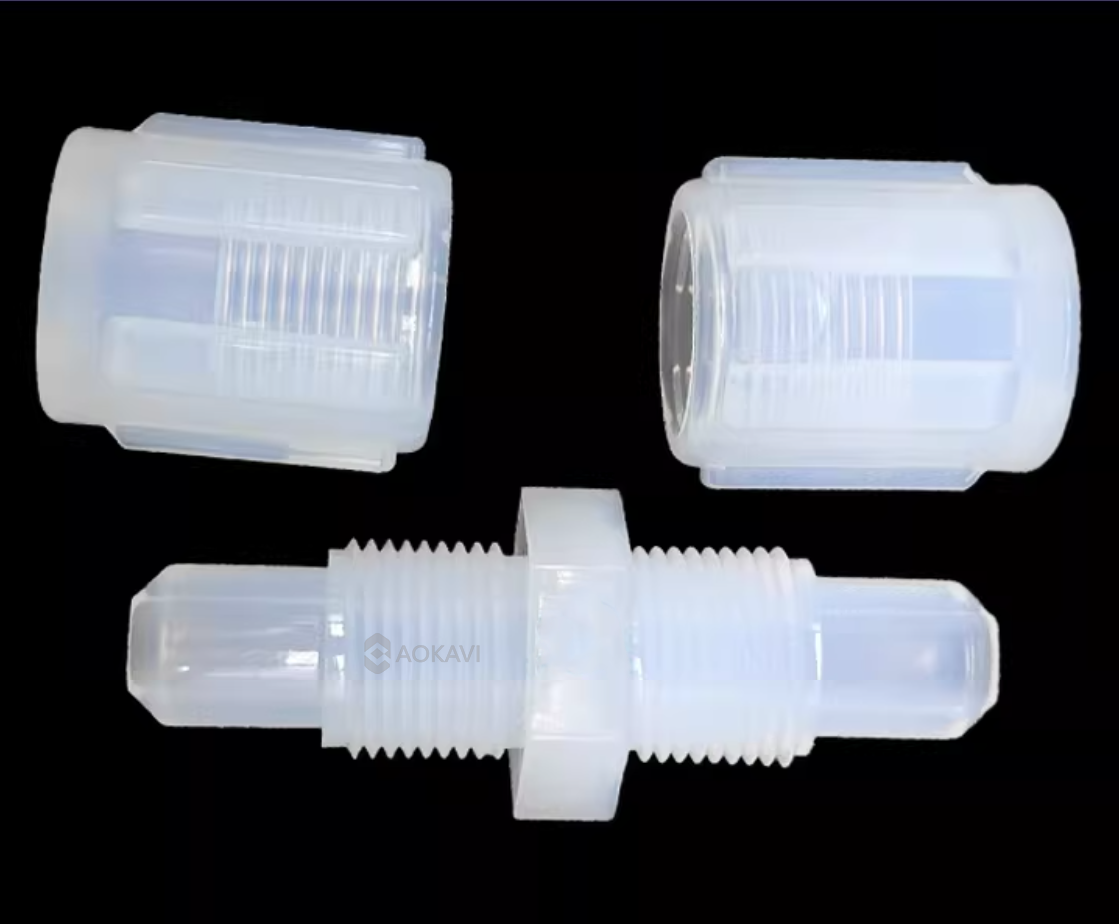

This is a straight tubular connector injection molded or machined from translucent, pure PFA material. Its core characteristic is that both ends have the same interface specification, used to connect two segments of PFA tubing with the same outer diameter, creating a seamless straight flow path. Unlike metal fittings, it achieves a seal through pure mechanical structural deformation, eliminating the need for adhesives or heat fusion. This ensures the chemical inertness of the connection point is identical to that of the tubing itself.

The core advantages of PFA material make it the "pinnacle" for high-purity applications:

• Ultimate Purity: Extremely low extractables, fully compliant with semiconductor-grade (e.g., SEMI standards) and pharmaceutical-grade (e.g., USP Class VI) requirements.

• Superior Mechanical Properties: Compared to PTFE, PFA offers better creep resistance and tensile strength, capable of withstanding higher system stress and more frequent assembly/disassembly.

• Excellent Transparency: Allows for visual inspection of fluid condition and cleanliness inside the tube.

• Wide Temperature Range: Can operate stably long-term from -200°C to +260°C.

2. Detailed Explanation of the Two Interface Types: Design Philosophy and Application Divergence

The primary use of these two interface types in PFA straight connectors stems from their pursuit of ultimate "reliability" and "convenience" in different application scenarios.

1. Flared Type

• Working Principle: A specialized flaring tool is used to heat and expand the end of the PFA tubing into a regular flared (bell-mouth) shape. The connector body has tapered outer surfaces on both ends. During installation, the flared tube end is slipped over the connector, and a PFA or PVDF nut is tightened. This creates powerful radial compression between the inner wall of the flare and the connector's tapered surface, achieving a face seal.

• Key Characteristics:

  • Rigid Connection, Extremely Stable: Forms a rigid connection similar to a flange, offering excellent resistance to vibration and pressure pulses, making accidental pull-out nearly impossible.

  • Repeated Assembly/Disassembly: As long as the flare remains intact, it can be disconnected and re-tightened multiple times with stable sealing performance.

  • High Installation Skill Requirement: Requires a dedicated heating/flaring tool, and operator skill significantly impacts the outcome; flare quality directly affects the seal.

• Typical Scenarios: High-vibration environments, systems with pressure pulses, permanent or semi-permanent installations where any risk of disconnection is unacceptable. Examples: Internal high-pressure fluid paths in analytical instruments like GC-MS, LC-MS; main supply lines in high-purity chemical distribution systems.

2. Beaded / Ball and Socket Type

• Working Principle: A solid PFA bead is embedded onto the outer surface of the PFA tubing end, either by cold pressing or heating. The connector body has precisely matching spherical sockets (concave grooves) inside both ends. During installation, the beaded tube end is pushed into the connector; a distinct "click" indicates the bead has snapped into the socket. A sliding sleeve or lock ring is then used to secure the connection and prevent disengagement.

• Key Characteristics:

  • Quick Connect/Disconnect, Easy Operation: Requires no complex tools, enabling very fast installation, ideal for systems requiring frequent changes or maintenance.

  • Flexible Connection, Tolerates Misalignment: The ball-and-socket joint design allows for slight angular deflection of the tubing, absorbing vibration and installation stress.

  • One-Way Installation: Typically designed for insertion from one side, with a pull-out prevention mechanism providing good retention force.

• Typical Scenarios: Applications requiring quick connection/disconnection, frequent equipment changeover, or areas with limited space where tool use is difficult. Examples: Sampling lines for single-use bioreactor bags; modular systems in pilot-scale laboratory platforms; quick equipment connection in cleanrooms.

3. Conventional Size Range and Quick Selection Reference

In high-purity applications, small-diameter, precise control is predominant. Therefore, the conventional bore size range for PFA straight connectors typically starts from 1/4 inch up to a maximum of 1 inch. During selection, interface type takes priority over size; one must first decide between Flared or Beaded type based on the application scenarios described above.

Critical Reminder: Whether for Flared or Beaded types, the connector must precisely match the specifications of the corresponding PFA tubing. Standards may vary slightly between manufacturers. It is highly recommended to use tubing and connectors from the same brand to ensure optimal compatibility and sealing performance.

4. Core Decision-Making Process for Selection and Installation

When faced with the two interface choices, follow this decision tree:

1. Does the system require frequent disassembly or component replacement?

   • Yes -> Prioritize Beaded Type.

   • No -> Proceed to next question.

2. Does the system experience high-frequency vibration, pressure pulsation, or have extremely high requirements for connection rigidity?

   • Yes -> Prioritize Flared Type.

   • No -> Either type is suitable. The choice can be based on budget and tool availability (Flared requires investment in dedicated tools, Beaded fittings may have a slightly higher unit cost).

3. Installation Key Points:

   • Flared Type: Ensure the flaring tool temperature is correct and heating is even, producing a smooth, crack-free flare with uniform thickness. Use a torque wrench when tightening the nut to avoid over-tightening, which can cause cold flow deformation in the PFA material.

   • Beaded Type: Ensure the bead is correctly and firmly positioned. Align and push the tube end firmly until a distinct locking "click" is heard. Regularly check that the sliding lock ring is in the secured position.

5. Summary of Core Application Fields

PFA equal-diameter straight connectors are the "standard cells" Building Top-Tier Industrial Piping Ecosystems:

• Semiconductor Manufacturing: Transporting ultrapure water (UPW), etchants, photoresist solvents—guardians of chip yield.

• Biopharmaceuticals: Used in single-use systems (SUT), for transferring cell culture media, buffers, and product harvests in vaccine and antibody production.

• High-End Analysis: Serving as core connection components in the internal fluid paths of instruments like Liquid Chromatography (HPLC/UPLC) and Inductively Coupled Plasma (ICP) systems.

• Specialty Chemicals: Safely handling highly active, high-value-added fine chemicals.

Conclusion

The PFA equal-diameter straight connector, through its two refined and focused designs—"Flared" and "Beaded"—perfectly addresses the dual demands for absolute reliability and operational efficiency in high-purity fluid systems. It is not merely a physical node connecting two tube segments but an embodiment of system design philosophy and maintenance strategy. Understanding the fundamental differences between these two interfaces and making an informed choice based on actual operating conditions is a solid and correct step on the path toward pursuing ultimate purity and efficiency.
