Pure PTFE TEE Ferrule Fitting: The "Precision Three-Way Hub" for High-Purity Piping Systems

In modern high-purity, highly corrosive fluid distribution systems, it is often necessary to safely and cleanly branch off a secondary flow path from the main supply line for sampling, reagent addition, instrument connection, or establishing parallel processes. Traditional welded or threaded tees often struggle to meet these demands due to material contamination, sealing risks, or lack of flexibility. The pure Polytetrafluoroethylene (PTFE) TEE Ferrule Fitting was developed to address this need. With its unique all-fluoropolymer structure and compression-type sealing, it serves as the "precision three-way hub" in small-bore, high-demand fluid systems, ensuring the branching process is as pure and reliable as the main line.

1. Product Definition: What is a PTFE TEE Ferrule Fitting?

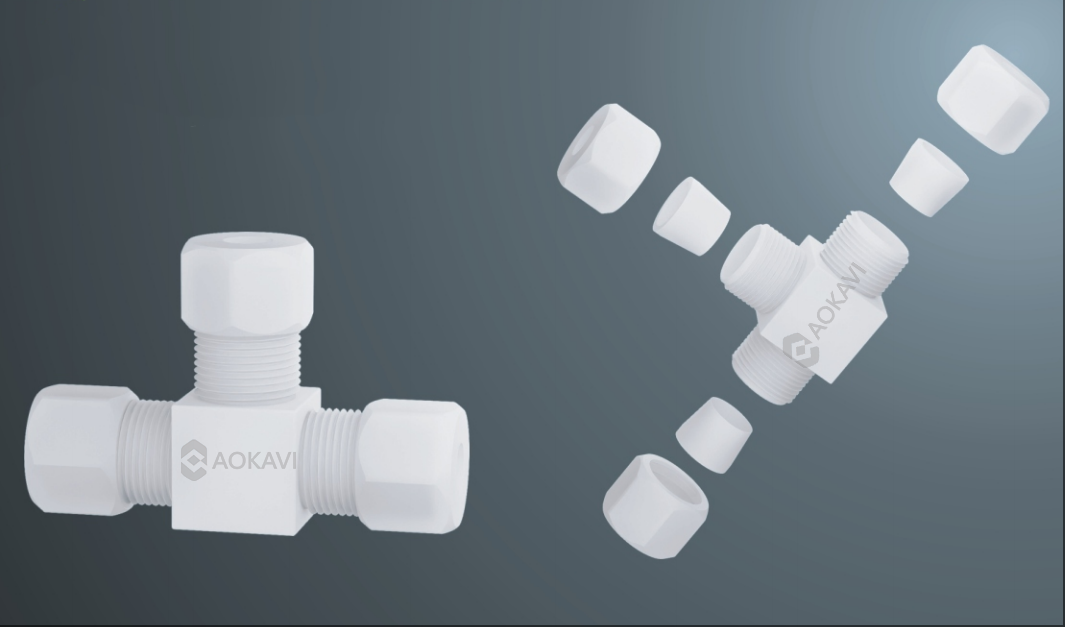

This is a tee pipe fitting integrally molded from pure PTFE material, with a "T"-shaped body featuring three ports. It combines the T-type split-flow function with the advantages of ferrule-type connections:

• Structural Components:

  1. T-Type Body: Made of pure PTFE, with three ports typically designed as standard ferrule interfaces (with barbs).

  2. Insert/Sleeve: Placed inside the PTFE soft tubing to be connected, preventing tubing collapse during compression.

  3. Outer Ferrule: Usually made of corrosion-resistant plastic (e.g., PFA) or metal (coated with PTFE), providing uniform radial clamping force.

• Working Principle: Slide three segments of PTFE soft tubing onto the three ports of the T-body (with inserts pre-placed inside the tubes). Then push and lock the outer ferrules. The ferrules compress the tubing, causing plastic deformation that tightly conforms to the barbs on the fitting and the inserts, simultaneously forming reliable mechanical seals in all three directions to achieve flow splitting or merging.

2. Core Advantages: Why Choose an All-PTFE Structure TEE Ferrule?

Using a pure PTFE TEE ferrule fitting at critical branching points ensures the "ultra-high purity" and "absolute corrosion resistance" of the main line are seamlessly extended to every branch.

• Full-Flow Path Chemical Consistency: All surfaces from the main line to the branches are made of homogeneous pure PTFE, completely eliminating potential electrochemical corrosion, metal ion leaching, or media contamination that could arise from material differences. This is critical for semiconductor ultra-pure chemicals and biopharmaceutical fluids.

• Low-Dead-Leg, Easy-to-Clean Design: High-quality pure PTFE tee fittings feature smooth, streamlined internal passages with rounded transitions, significantly reducing fluid dead legs. This facilitates system flushing and drainage, meeting cleanability validation requirements.

• Excellent Sealing Reliability: Ferrule-type sealing does not rely on threads, avoiding issues like PTFE thread wear and degrading seal performance with repeated assembly/disassembly. The three ports seal independently without interference, offering high reliability.

• Installation Flexibility and Maintainability: Allows for flexible piping installation within certain angles, compensating for minor alignment errors. For maintenance or configuration changes, the old ferrule can be cut off and replaced with a new one for re-installation, saving costs.

3. Conventional Size Range and Selection Guide

This type of fitting is primarily used in finely controlled, low-flow systems. The diameter of the main run and the branch are typically equal or similar, and both do not exceed 1 inch. Selection requires clarifying the sizes for both the main run direction and the branch direction.

1. Conventional Size Specification Table (Main Run x Branch)
The following are common equal or reducing combinations in small-bore systems:

Note: Selecting a TEE ferrule fitting must simultaneously match the outer diameters of the PTFE soft tubing used for both the main run and the branch. For reducing tees, confirm tubing sizes for both ends separately. Flow direction is usually unrestricted, but for sensitive applications, consult the supplier regarding flow-optimized design.

2. Key Selection and Installation Points

• Confirm System Conditions: Verify pressure (typically low pressure, e.g., below 1.0 MPa), temperature (-200°C to +260°C), and media compatibility.

• Tubing Preparation: Use a dedicated tube cutter to ensure all three tube ends are square, perpendicular, and burr-free. This is fundamental for achieving successful three-point sealing.

• Installation Sequence: It is recommended to first connect and pre-tighten the two ends of the main run, then install the branch last. Ensure each tube is fully inserted (bottomed out against the insert shoulder).

• Even Tightening: Tighten the nuts of the three ferrules sequentially, following the manufacturer's recommended torque (typically hand-tight plus 1/4 to 3/4 turn). Avoid over-tightening any single point, which could cause uneven stress and deformation of the fitting body.

• Pressure Testing: After installation, always conduct a system pressure test to check all three connection points for leaks.

4. Core Application Fields

Pure PTFE TEE ferrule fittings are the building blocks for modular, high-purity fluid networks, widely used in:

• Semiconductor Manufacturing: In ultra-pure chemical (UPW, etchants, CMP slurries) distribution systems, for branching to multiple tools or introducing inline monitoring sensors.

• Pharmaceuticals and Biotechnology: In single-use bioreactor systems, chromatography systems, or media preparation lines, enabling sterile, contamination-free flow splitting and merging.

• Fine Chemicals: In pilot or production-scale handling of high-value-added, corrosive intermediates, constructing flexible multi-channel reaction or separation processes.

• High-End Laboratories and Analytical Instruments: For building complex flow-switching systems, multi-channel sampling systems, or online dilution devices, enhancing automation levels.

Conclusion

The pure PTFE TEE ferrule fitting is far more than a simple tee connector. It is a key enabler for fluid system design flexibility, process safety, and product purity. By combining the extreme corrosion resistance of PTFE with the reliable sealing of ferrule connections, it provides a perfect solution for precise fluid distribution and controlled merging in the most demanding applications. When designing your next high-purity or corrosive fluid system, this "precision three-way hub" will be the intelligent choice for realizing complex flow path designs while ensuring overall system integrity.
