Pure PTFE Male-to-Female Adapter: The "Protocol Translator" and "Isolator" in Piping Systems

In the construction and modification of modern precision fluid systems, the dilemma of interface "mismatch" is often encountered: equipment ports have male threads while pipeline interfaces have female threads, or components of different standards and materials need reliable connection. At this point, the pure Polytetrafluoroethylene (PTFE) male-to-female adapter becomes the key to solving the problem. It is not merely a simple physical converter but a "strategic node" that ensures system purity, integrity, and reliability in harsh chemical environments.

1. Product Definition: What is a Pure PTFE Male-to-Female Adapter?

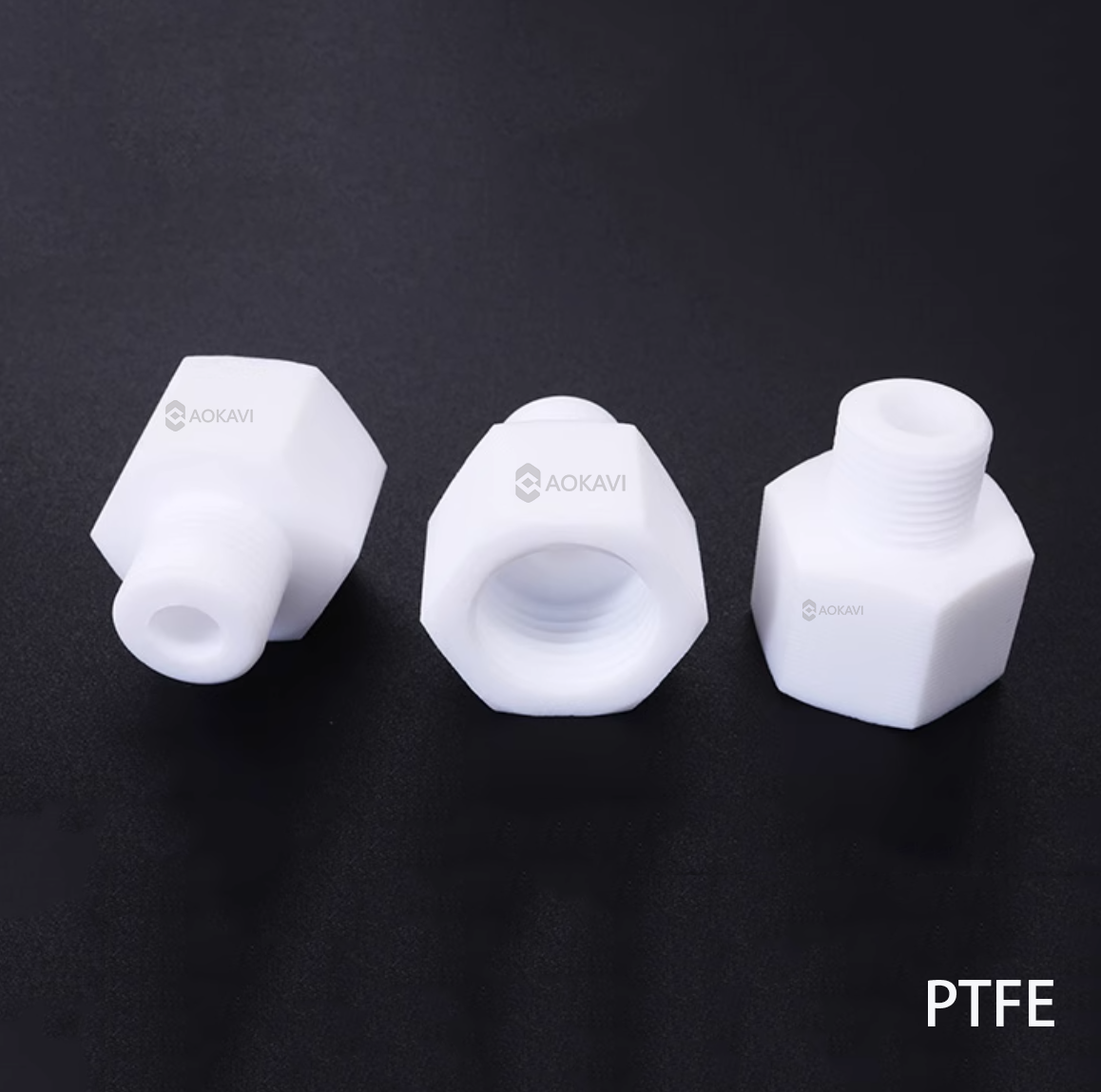

This is a pipe fitting manufactured integrally from pure PTFE material. Its core feature is having male threads on one end and female threads on the other end of the same fitting. Its main functions include:

• Interface Conversion: Bridging different thread types (e.g., NPT and BSP) or different genders (male/female), enabling flexible piping.

• Material Transition: Acting as an isolation layer in systems requiring pure PTFE media contact, safely separating metal or other material threaded interfaces from PTFE piping to prevent corrosion or contamination.

• System Extension and Maintenance: Providing great convenience for adding branches, connecting equipment, or replacing damaged parts in existing systems.

Key Distinction: Pure PTFE adapters are fundamentally different from "fluorine-lined" or "PTFE-clad" fittings. The latter only have a PTFE layer coating or lining over a metal core, risking delamination or rupture due to thermal stress or mechanical damage, potentially causing leaks or corrosion. Pure PTFE adapters eliminate this hazard, ensuring chemical consistency throughout the entire flow path.

2. Core Advantages: Why Must It Be "Pure PTFE"?

Choosing pure PTFE to manufacture male-to-female adapters aims to seamlessly extend its "all-around" material properties to the entire connection point:

• Full-Flow Corrosion Barrier: Both inside and outside of the adapter possess the same top-tier chemical resistance as the piping, allowing safe transport of media from concentrated acids and strong alkalis to various organic solvents, with zero risk of metal ion leaching.

• Ensuring System Cleanliness: In semiconductor ultra-pure chemical or biopharmaceutical fluid systems, the non-leaching property of pure PTFE is fundamental for maintaining media purity. It avoids potential trace contamination introduction from dissimilar fitting materials.

• Wide Temperature Range Adaptability: Withstands extreme operating temperatures from -200°C to +260°C synchronously with the PTFE piping system, ensuring the connection point does not become a weak link during thermal cycles.

• Excellent Anti-Stick and Low Friction: The smooth surface prevents scaling and allows smoother thread engagement and more reliable sealing.

3. Conventional Size Range and Selection Guide

This type of adapter is primarily used in high-value-added, low-flow precision systems. Its conventional nominal diameter (DN) is concentrated at 1 inch and below. During selection, clearly identifying the thread specifications on both ends is paramount.

1. Conventional Size Specification Table
The following are the most common size ranges within the industry and their typical application directions:

Note: Thread standards (e.g., NPT-American tapered pipe thread, BSP-British pipe thread) and precision are crucial. Incorrect thread pairing not only fails to seal but can also damage the threads, rendering the adapter useless. Always select precisely based on equipment port specifications.

2. Key Selection and Installation Points

• Condition Confirmation: Verify operating pressure (typically medium to low pressure), temperature, and media to ensure PTFE material is fully suitable.

• Thread Identification: Accurately measure and identify the thread type, size, and pitch of existing interfaces. Use a thread gauge if necessary.

• Sealing Treatment: During installation, it's common to wrap an appropriate amount of PTFE thread seal tape or apply dedicated silicone grease onto the threads to fill gaps, enhance sealing, and prevent galling. Avoid using sealants to prevent chemical contamination.

• Manual Installation, Moderate Torque: Always hand-tighten the initial few turns to ensure proper alignment. When using tools for final tightening, follow the principle of "hand-tight plus 1/4 to 1/2 turn." Avoid excessive force to prevent PTFE thread stripping or fitting cracking.

• Regular Inspection: Check the adapter for signs of leakage after system heat-up, pressure reduction, or media change.

4. Core Application Fields

Pure PTFE male-to-female adapters are the "unsung heroes" enabling system compatibility, safety, and maintainability in the following fields:

• Semiconductor Manufacturing: In wafer fab ultra-pure chemical distribution systems, safely converting stainless steel valve manifold and pump metal interfaces to all-fluoropolymer piping systems is a critical link ensuring "zero metal contamination."

• Pharmaceutical and Bioengineering: Used to connect bioreactors, stainless steel filters with single-use tubing systems, meeting cGMP requirements for cleanliness and validation.

• Fine Chemical Synthesis: Providing flexible connections between various reaction vessels, metering devices, and pipelines during pilot-scale or production, handling highly corrosive intermediates.

• High-End Laboratories: Acting as universal adapters to solve connection challenges between various imported instruments, custom-built apparatus, and standard piping, enhancing the flexibility of experimental platforms.

Conclusion

The pure PTFE male-to-female adapter, this seemingly tiny component, is in essence an indispensable "System Integrator" and "Safety Isolator" in modern precision fluid engineering. Through its purely chemically inert nature and precise mechanical structure, it transforms "mismatch" into "seamless integration," safeguarding the purity and security of the entire system while ensuring process continuity. Understanding and correctly applying it represents the wisdom of constructing reliable and flexible fluid systems under complex operating conditions.
