Pure PTFE Straight Ferrule Fitting: The "Precision Surgeon" for Small-Scale Piping Systems

In the field of modern precision fluid control, especially for the transfer of high-purity and highly corrosive media, the reliability of connections directly determines the success or failure of the entire system. Among various connection methods, the pure Polytetrafluoroethylene (PTFE) Straight Ferrule Fitting stands out as the preferred solution for small-bore tubing in industries like semiconductors, biopharmaceuticals, and high-end chemicals, thanks to its unique "metal-free contact" and "tool-free quick-installation" features. It acts like a precision surgeon, establishing safe pathways for high-value fluids in the gentlest and cleanest manner possible.

1. Core Concept: What is a PTFE Straight Ferrule Fitting?

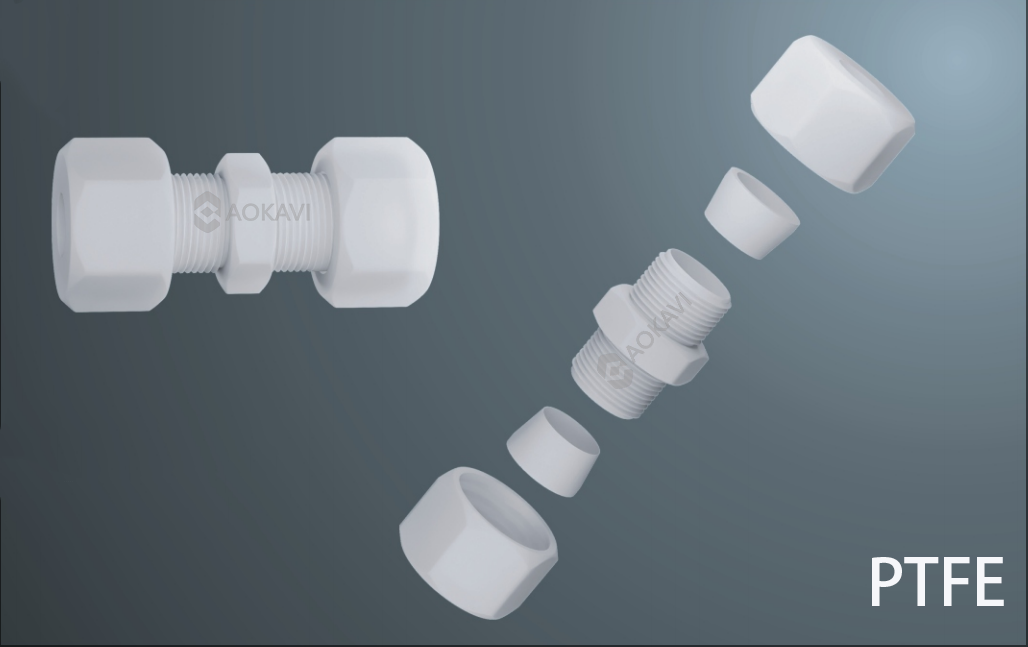

A pure PTFE straight ferrule fitting is a "compression-type" threadless connector used for joining PTFE soft tubing or pipes. Its typical structure consists of three components:

1. Fitting Body: Made of pure PTFE, featuring a straight-through design on both ends. One side typically has a barbed connection, while the other can be designed as barbed, threaded, or flanged as needed.

2. Insert/Sleeve: A sleeve made of pure PTFE, placed inside the soft tubing to prevent collapse or excessive deformation during compression.

3. Outer Ferrule: Usually made of corrosion-resistant engineering plastics (like PFA, PVDF) or metal (coated with PTFE), providing uniform radial clamping force.

Working Principle: The PTFE soft tubing is pushed onto the barbed end of the fitting, which is pre-equipped with the insert. The outer ferrule is then pushed to a specified position and locked (usually by rotating a nut to advance it). The ferrule uniformly compresses the soft tubing, causing it to plastically deform and tightly conform to the barb and the insert, thereby achieving a dual mechanical seal. The entire process requires no heat fusion or adhesives, ensuring cleanliness and no contamination.

2. Why Choose Pure PTFE Material?

Opting for pure PTFE (rather than just a surface coating) to manufacture the entire fitting body and insert is based on its irreplaceable material properties:

• Absolute Chemical Inertness: Inert to almost all known strong acids, bases, oxidizers, and organic solvents. For example, it can be safely used in extreme environments like 98% concentrated sulfuric acid, aqua regia, and hydrofluoric acid.

• Ultra-Wide Temperature Range: Can operate stably over an extreme temperature range from -200°C to +260°C, unaffected by thermal shock.

• Ultimate Cleanliness: The material itself is non-leaching, non-extractable, with a smooth, non-stick surface. It complies with biocompatibility standards like FDA and USP Class VI, making it ideal for ultrapure water and pharmaceutical fluids.

• Excellent Electrical Insulation: Suitable for conveying sensitive electronic chemicals or applications requiring insulation.

3. Conventional Size Range and Application Guide

Pure PTFE straight ferrule fittings primarily serve the "low-flow, high-demand" sectors. Their conventional nominal diameter (DN) typically does not exceed 1 inch. Below is the internationally common standard size range and typical application scenarios:

4. Key Considerations for Selection and Installation

To ensure system integrity, follow these principles during selection and installation:

1. Confirm System Conditions:

   • Pressure: Pure PTFE ferrule fittings are typically used for medium to low-pressure scenarios (e.g., below 0.6 MPa). Consult the manufacturer's rated pressure-temperature curve.

   • Temperature: Ensure the long-term operating temperature is within PTFE's tolerance range, and consider thermal expansion/contraction from temperature cycles.

   • Media: Although PTFE has broad compatibility, it is still advisable to check long-term compatibility data with specific highly reactive chemicals.

2. The "Three Essentials" of Installation:

   • Tube Cutting: Must use a dedicated tube cutter to ensure a square, perpendicular cut end free of burrs or deformation. An angled cut is a primary cause of leaks.

   • Insertion: Push the soft tubing straight into the fitting until it bottoms out against the insert shoulder. Mark the tubing at its entry point.

   • Tightening: Hand-tighten the nut, then use a wrench to tighten to the manufacturer's recommended torque (typically 1/4 to 3/4 turn further). Avoid over-tightening, as it can crush the tubing or damage the threads.

3. Other Advantages and Limitations:

   • Advantages: Can be disassembled and reinstalled (with a new ferrule), no directional flow restriction, quick installation, no risk of metal ion contamination.

   • Limitations: Not suitable for high-pressure pulsation or severely vibrating lines; requires high operator skill for proper installation; products with one-time-use ferrule designs are not reusable.

5. Core Application Fields

Pure PTFE straight ferrule fittings are the "standard" connectors in the following high-end industries:

• Semiconductor Manufacturing: Transferring ultra-pure chemicals (etchants, photoresists, CMP slurries), acting as the "vascular connector" ensuring chip yield.

• Biopharmaceuticals: Used in single-use bioreactors, chromatography systems, and culture media transfer lines, meeting cGMP sterile requirements.

• Fine Chemicals: Safely handling high-value-added, highly corrosive intermediates and catalysts.

• New Energy: Lithium battery electrolyte R&D and production, hydrogen fuel cell test platforms.

Conclusion

The pure PTFE straight ferrule fitting plays a vital role in small-bore precision fluid systems due to its extreme corrosion resistance from the material, clean and contaminant-free structure, and convenient, reliable operation. Its value lies not only in connection but also in creating a safe, stable transfer environment for high-purity, highly active fluids. Correctly selecting and applying it is the cornerstone of building a reliable and efficient modern fluid system. When choosing components for your next precision piping project, consider it a trustworthy, precise partner.
