Demystifying the "Plastic King" Connector: A Comprehensive Analysis of Pure PTFE Female Threaded Couplers

In the intricate pipeline systems of modern industry, the selection of a tiny component often determines the safety and efficiency of the entire system. Among many critical connectors, the female threaded coupler made of pure Polytetrafluoroethylene (PTFE), with its nearly "all-around" tolerance, plays an irreplaceable role in cutting-edge fields such as semiconductors, chemicals, and pharmaceuticals. What makes it so exceptional? This article delves into the material secrets, core performance, and selection key points of this connector hailed as the "Plastic King."

1. The King of Materials: Why PTFE Excels in Harsh Environments

PTFE, commonly known as "Teflon," derives its extraordinary performance from its molecular structure. The extremely strong carbon-fluorine bonds and the protective sheath formed by fluorine atoms endow it with a series of near-extreme properties:

• Ultimate Chemical Inertia: PTFE hardly reacts with any known strong acids, strong alkalis, or organic solvents. For example, experimental data shows that in an environment with sulfuric acid concentration as high as 98%, PTFE couplers can operate stably for over 5,000 hours, far exceeding metals or other plastic materials. This makes it the preferred connection solution for pipelines transporting corrosive chemicals (e.g., hydrofluoric acid, concentrated nitric acid, organic solvents).

• Broad Temperature Range Adaptability: It can comfortably handle extreme temperatures ranging from -200°C to +260°C. Whether for cryogenic equipment media or high-temperature heat exchange systems, PTFE couplers maintain dimensional stability and sealing performance without failing due to thermal expansion and contraction.

• Exceptional Surface Properties: PTFE has one of the lowest coefficients of friction among all solid materials, with an extremely smooth and non-stick surface. This characteristic brings two major benefits: firstly, minimal flow resistance and reduced scaling; secondly, when combined with precision machining, it can achieve very high levels of sealing, with leakage rates as low as 10⁻⁶ Pa·m³/s.

• High Purity and Safety: Pure PTFE material does not leach or dissolve, preventing contamination of the media flowing through it. This characteristic is crucial for ultra-pure chemical delivery systems in semiconductor manufacturing, where metal ion contamination must be杜绝absolutely prevented, and for pipelines in food and pharmaceutical production with stringent hygiene requirements.

2. Product Focus: Core Characteristics of Pure PTFE Female Threaded Couplers

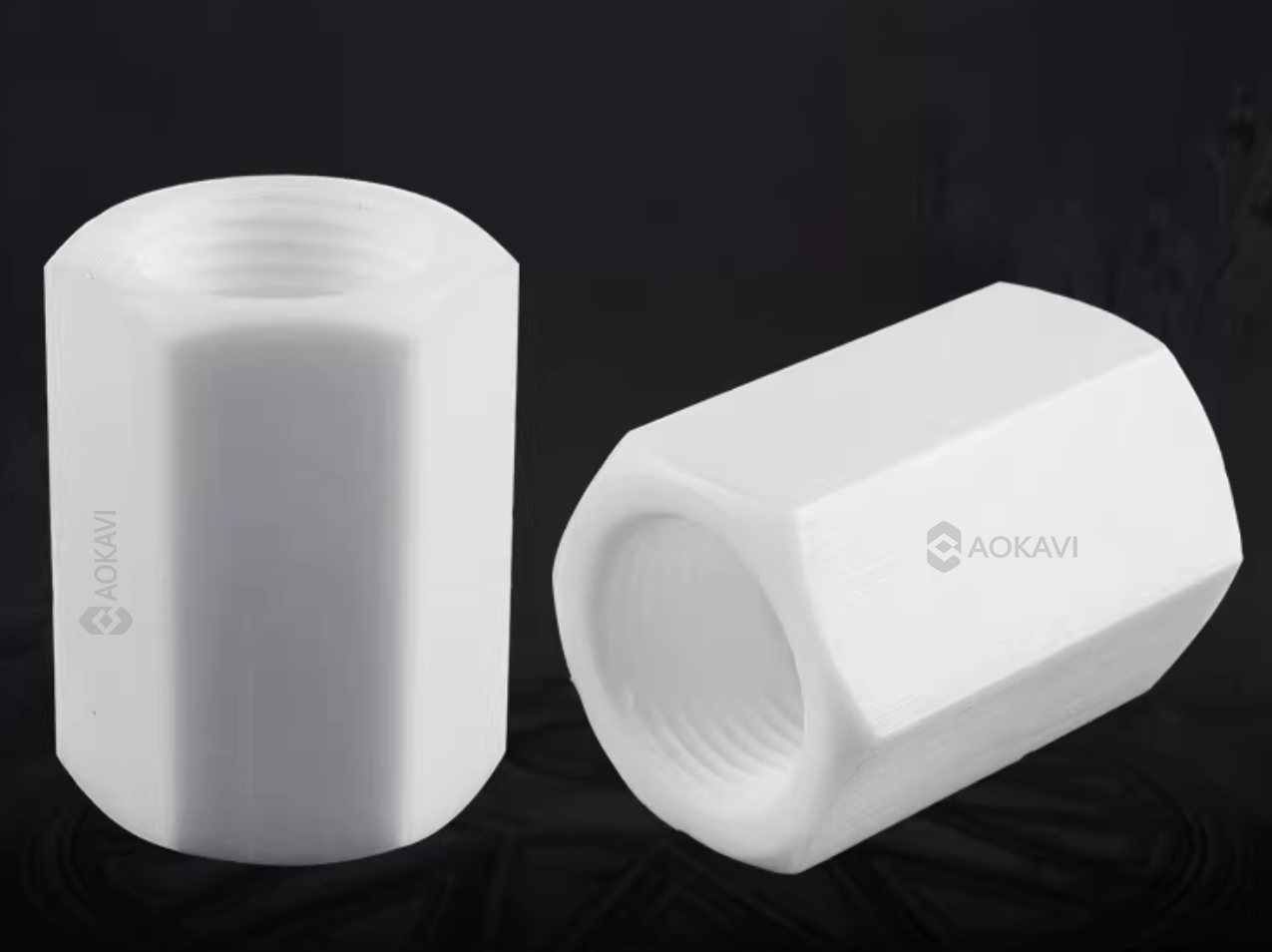

The "pure PTFE female threaded coupler" we refer to is a connector whose body is entirely formed by injection molding or machining from PTFE material, with internal threads (typically imperial pipe threads such as NPT, BSP) machined at one or both ends. Its main features include:

• Pure Structure: Unlike "fluorine-lined couplers" which only have a PTFE layer "lined" on the inner wall, pure PTFE couplers are made of homogeneous material from the inside out, eliminating the risk of failure due to liner detachment or damage, offering higher reliability.

• Connection Type: "Female thread" means the coupler itself provides an internal threaded interface, typically used for directly screwing onto externally threaded pipes or equipment ports, or used in conjunction with other male threaded connectors to form flexible piping systems.

• Pressure and Size Range: Due to its material properties, pure PTFE couplers are generally suitable for medium to low-pressure scenarios. In conventional industrial applications, their nominal diameter (DN) is primarily concentrated in the small-diameter range of 1 inch (approximately 25.4 mm) and below, which is also the most demanded and standardized range. The following table lists common specifications within this range:

3. Precise Selection and Application Guide

Selecting the correct PTFE female threaded coupler requires comprehensive consideration of the following key factors to ensure long-term stable system operation:

1. Confirm Media Compatibility: Although PTFE has strong corrosion resistance, compatibility with specific chemical media should be verified before selection, especially long-term stability under coupled high temperature and pressure.

2. Match Pressure and Temperature: Ensure the coupler's rated working pressure and temperature range (e.g., room temperature, low pressure) fully cover the actual operating conditions of the system, with an appropriate safety margin. Pure PTFE couplers are not suitable for high-pressure pulsation or severe vibration scenarios.

3. Verify Dimensions and Standards: Accurately measure and match the pipe's outer diameter and thread standard (e.g., NPT, BSPP). Use dedicated tools during installation and strictly control the tightening torque. Excessive force may cause PTFE thread deformation or even cracking.

4. Sterile and Cleanliness Requirements: For scenarios like semiconductors and biopharmaceuticals, choose products that have undergone special polishing treatments and hold high cleanliness certifications (e.g., compliant with SEMI standards). Install them in a cleanroom environment to avoid particulate introduction.

5. Installation and Maintenance Notes:

   • Apply a compatible lubricant (e.g., silicone grease) to the threaded part during installation for easier tightening and thread protection.

   • The structural design of some single-use PTFE quick-connect couplers causes plastic deformation after tightening, making them non-reusable. Pay special attention to this during selection.

   • Regularly inspect connection points for signs of leakage. When changing media in the system, evaluate the compatibility of the coupler material with the new medium.

4. Application Scenario Outlook

The application fields of pure PTFE female threaded couplers continue to expand with the upgrading of manufacturing:

• Semiconductor Manufacturing: A core connecting component in ultra-pure chemical (etchants, developers, high-purity solvents) delivery lines, ensuring zero contamination in chip production.

• Chemical and Pharmaceutical Industries: Used to connect equipment such as reaction vessels, filters, and chromatography systems, safely handling various corrosive raw materials and intermediates.

• New Energy and Environmental Protection: Plays a role in lithium battery electrolyte systems, hydrogen fuel cell systems, and dosing systems for wastewater treatment.

• Food and Scientific Research: Meets food-grade hygiene requirements and is widely used in precision fluid experimental setups in cutting-edge laboratories.

Conclusion

Although small, the pure PTFE female threaded coupler is the "critical cartilage" supporting the safe operation of modern high-end manufacturing. It represents a profound understanding of material science and the ultimate pursuit of process reliability. When designing or maintaining your next fluid system, carefully considering every detail of the media, environment, and connections might mean that this inconspicuous "Plastic King" coupler becomes the solid guarantee for the system's long-term stable operation.
