Pure PTFE Hex Nipple: The "Removable Sealing Plug" for High-Purity Piping Systems

During the construction or maintenance of a high-purity, highly corrosive fluid system, engineers often face a core need: how to achieve an absolutely pure, reliable, and corrosion-resistant sealed connection between a PTFE pipe or equipment port and another threaded interface (such as a valve, instrument, or tank) in a removable manner? Welding is reliable but irreversible, while compression fittings may pose risks under extreme cleanliness requirements. At this point, a component with a simple structure but vital importance stands out—the Pure PTFE Hex Nipple.

It is not merely a bridge for thread conversion but a "precision sealing plug" that integrates PTFE's ultimate inertness with the convenience of repeatable assembly and disassembly. Its hex design provides a standardized point for applying force, making safe, controlled installation and maintenance possible in harsh chemical environments.

Core Definition: What is a Pure PTFE Hex Nipple?

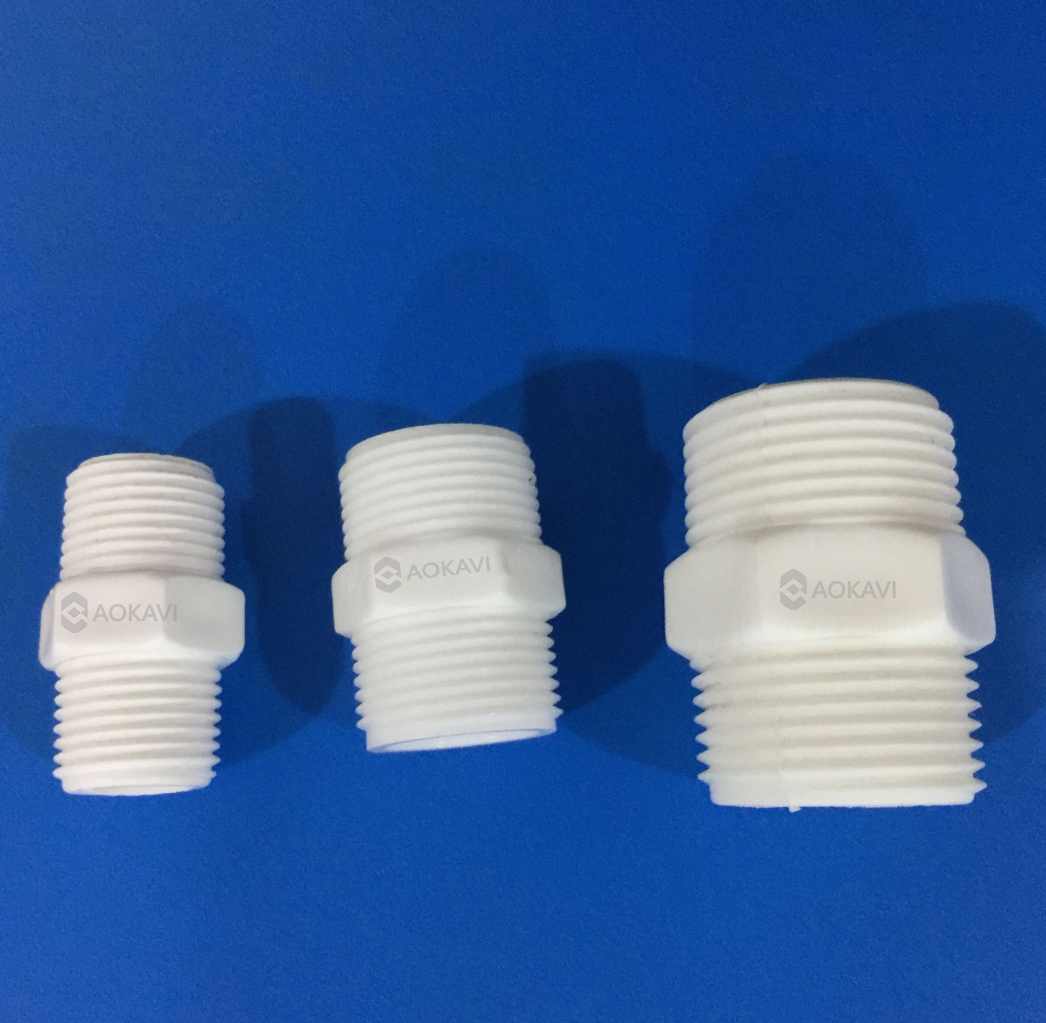

A Pure PTFE Hex Nipple is a straight short connector entirely machined from 100% Polytetrafluoroethylene (PTFE), featuring an external thread (typically with a hex head) on one end and a socket weld end or other connection type on the opposite end.

Its core structural features include:

1. Hex Head: Provides a standard wrenching surface, allowing for precise application of installation torque. This is key to achieving a reliable seal and preventing damage.

2. Male Thread End: Typically NPT (National Pipe Taper) or BSPT (British Standard Pipe Taper), for screwing into the female threaded port of equipment or valves.

3. Connection End: The other side is usually a socket weld end for permanent welding to PTFE pipe; it could also be another size of male thread, a compression fitting, or a hose barb.

4. Integral Material: All parts contacting the fluid and bearing installation stress are pure PTFE, ensuring full-flow-path inertness.

Core Value: Why Must It Be Chosen for Critical Removable Points?

1. Enables Maintainable, Inert Sealing: Provides a repeatably removable and installable sealing solution for systems requiring regular cleaning, calibration, or component replacement, while ensuring the flow path remains 100% PTFE-lined after each connection.

2. Standardized Installation and Torque Control: The hex head design allows for precise installation using a torque wrench, preventing leaks from under-tightening or damage to PTFE threads from over-tightening. This is fundamental for long-term sealing reliability.

3. Unmatched Media Safety: From the thread engagement surface to the center of the flow path, fluids contact only PTFE, completely eliminating the risks of ion leaching and galvanic corrosion possible with metal fittings. It is the ideal choice for high-purity chemicals and sensitive biologics.

4. Excellent Chemical Resistance and Wide Temperature Range: Inherits all properties of PTFE, resisting almost all strong acids, bases, and solvents, and maintaining stable performance across an extreme temperature range from -200°C to +200°C.

Standard Size Range: Focused on Small-Scale Precision Connections

Limited by the mechanical strength of pure PTFE and the challenges in machining precision and torque-bearing capacity for large-diameter threads, the conventional bore size range for Pure PTFE Hex Nipples is strictly limited to 1 inch (DN25) and below. They are the mainstay for providing interface flexibility for instrumentation, analytical equipment, small reaction apparatus, and modular process units.

The following table outlines typical size classifications and application guidance:

Core Guidelines for Selection, Installation, and Use

Five Key Selection Factors:

1. Thread Specification and Sealing Type: Primarily confirm the thread standard (e.g., NPT, BSPT) and size of the equipment port. Note that NPT is a tapered thread, relying on thread deformation for sealing and typically requires PTFE thread seal tape.

2. Connection End Requirement: Based on the type of piping to be connected, determine the interface type on the other end: Socket Weld (permanent), Compression (easy installation/removal), or Thread (for adaptation).

3. Hex Head Size: Ensure it matches existing wrenches or sockets, which is crucial for installation in confined spaces.

4. Material Confirmation as 100% PTFE: Must explicitly require integral material construction, avoiding composite fittings where only the seal is PTFE.

5. Pressure and Temperature Rating: Verify that operating conditions are within the fitting's rated range (typically suitable for low to medium pressure, e.g., 10 bar @ 20°C). Increasing temperature significantly reduces its pressure rating and thread strength.

Installation "Four Musts" and "Four Must Nots":

• Must correctly wrap the threads with 2-3 layers of PTFE thread seal tape (or apply specialized fluoroplastic thread sealant). The wrapping direction should be opposite to the thread tightening direction to prevent unraveling during screwing.

• Must use a wrench matching the hex head size and, whenever possible, use a torque wrench to tighten evenly to the manufacturer's recommended value (typically very low, e.g., a few N·m). Over-tightening is the primary cause of PTFE thread failure.

• Must first hand-tighten the nipple several turns into the port to ensure the threads are aligned without cross-threading before using tools.

• Must provide independent support for the connected piping after installation to prevent the nipple from bearing long-term bending or tensile stress from the pipe.

• Must NOT use pipe wrenches or other non-standard tools for installation that could damage the hex head or the fitting body.

• Must NOT forcibly tighten without thread seal tape or using incompatible sealants, as this will neither seal nor easily damage the threads.

• Must NOT use it in applications with severe vibration, water hammer, or potential external mechanical impact.

• Must NOT exceed its temperature and pressure limits, especially in systems with thermal cycling, considering the difference in thermal expansion coefficients between PTFE and metal materials.

Conclusion

The Pure PTFE Hex Nipple is the key precision component for achieving removable, maintainable interface connections in high-purity and corrosive fluid systems. It perfectly combines the material's chemical purity with the practicality of engineering design (hex head, standard threads), finding the optimal balance between "permanent connection" and "flexible maintenance".

Correctly selecting and properly installing this "removable sealing plug" means that at every critical interface of the system, the original sealing reliability and fluid purity can be maintained over tens or even hundreds of maintenance cycles. It is one of the silent guardians ensuring the long-term, stable, and safe operation of high-end process industry systems.

Note: For actual product selection, always provide the supplier with the equipment port thread specification, required connection type on the other end, media name, and operating temperature and pressure. For critical applications, pressure testing of the initially installed nipple is recommended, and the installation torque should be recorded for future reference.
