Pure PTFE Hose Nipples: The Flexible "Bridge" for High-Purity Fluid Systems

In many high-purity and corrosive fluid systems, a key need frequently arises: how to reliably, cleanly, and leak-free connect flexible PTFE or PFA hoses to rigid equipment ports, valves, or pipelines? This connection point must simultaneously accommodate the hose's flexibility, guarantee an absolute seal, and maintain the same level of chemical inertness and cleanliness as the piping system. At this point, the Pure PTFE Hose Nipple becomes the optimal and often only choice for building this flexible "bridge."

It is not merely a simple adapter but a precision-designed terminal specifically for hose connections, ensuring that fluids transition from a rigid system to a flexible hose, or vice versa, throughout a closed environment constructed entirely of pure PTFE—free from leaching and contamination.

Core Definition: What is a Pure PTFE Hose Nipple?

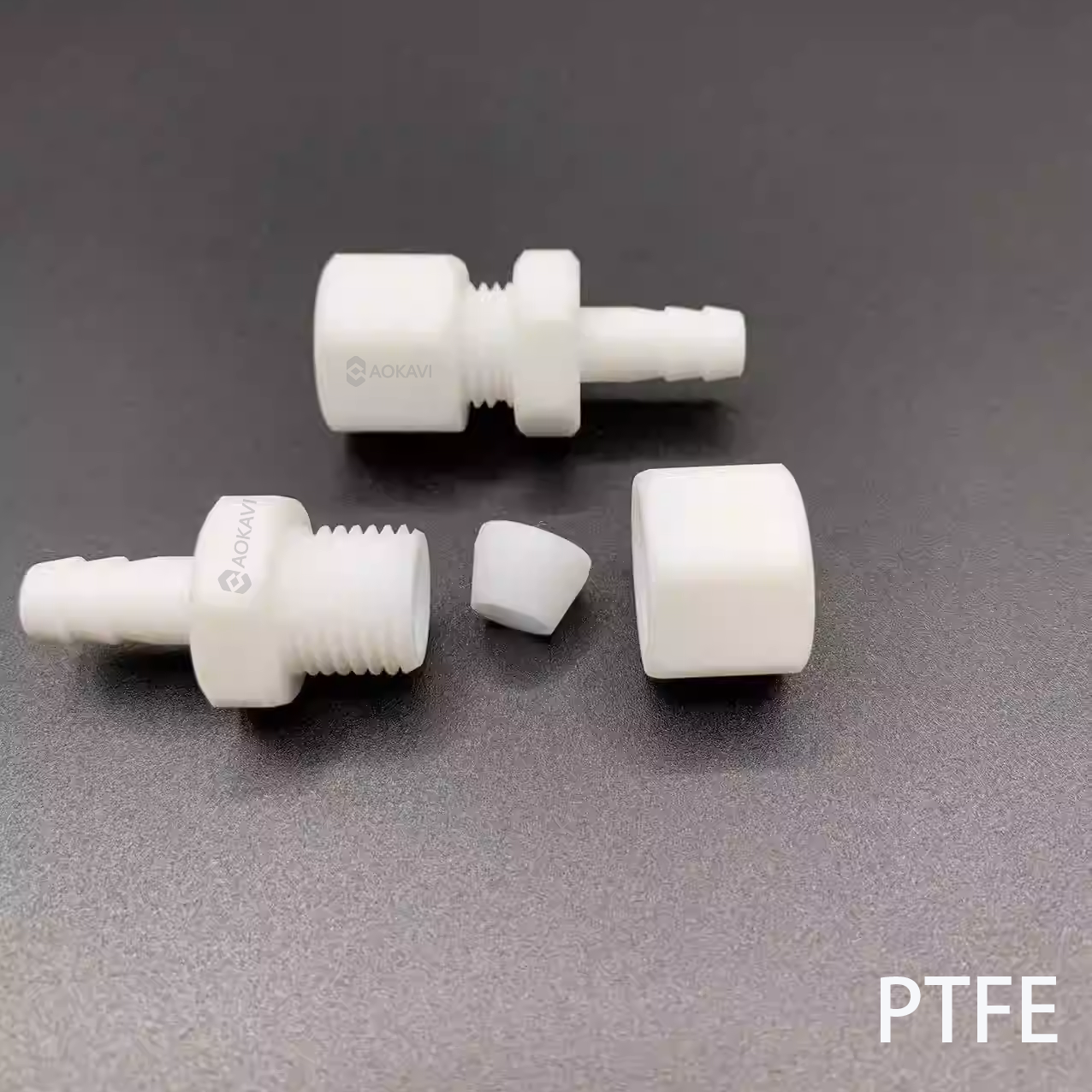

A Pure PTFE Hose Nipple specifically refers to a connection terminal, entirely made from 100% Polytetrafluoroethylene (PTFE), designed for connecting hoses. It typically features a standard interface (e.g., male thread, compression fitting) on one end for connecting to equipment or pipework, and a specialized barbed or reinforced stem on the other end for insertion into the hose.

Its core functions are:

1. Providing Reliable Hose Connection: Through precisely designed barbs or ridges, it achieves pull-out resistant mechanical fixation and pressure sealing once the hose is secured with a clamp.

2. Maintaining Full-Path Inertness: From the threaded end to the barbed end, fluids contact only PTFE throughout, eliminating the risk of contamination or corrosion introduced by metals or other plastics at the connection point.

3. Enabling Connection Transition: Converts a rigid threaded equipment port into an interface for connecting flexible hoses, increasing system layout flexibility.

Core Value: Why Must It Be Used for Hose Connections?

1. Provides a Pure Terminal for Hose Systems: It is an essential terminal component for constructing all-fluoropolymer (PTFE/PFA) hose delivery systems, ensuring no compromise in media purity even in the flexible connection sections.

2. Excellent Anti-Pull-Out Seal Design: The specialized barbed structure, when paired with a suitable clamp, can withstand internal hose pressure and moderate pulling forces, preventing dangerous leaks from accidental hose detachment.

3. Ultimate Chemical Compatibility: Its material is identical to the connected hose (typically also PTFE or PFA), eliminating issues like galvanic corrosion or swelling caused by contact between dissimilar materials. It safely conveys all highly corrosive chemicals.

4. Reduces System Stress: Acting as a "buffer" between rigid piping and flexible hose, it helps absorb some vibration and displacement, protecting precision equipment ports.

Standard Size Range: Adapted for Small-Scale, Precision Hose Systems

Due to the mechanical strength limitations of pure PTFE material and the stringent requirements for structural strength in large-diameter hose connections, the common bore size (matching the hose inner diameter) of commercially available pure PTFE hose nipples primarily covers specifications of 1 inch (DN25) and below. They are widely used in laboratories, analytical instruments, small-scale process equipment, and chemical dispensing systems.

The following table outlines typical size classifications and application guidance:

Core Guidelines for Selection, Installation, and Use

Four Key Selection Factors:

1. Hose Specification Match: Primary and essential – determine the exact inner diameter (ID) of the hose to be connected, and select the nipple barb size accordingly. Also, confirm the hose material (PTFE, PFA) and wall thickness to ensure compatibility.

2. Equipment-Side Interface: Based on the type of equipment port to be connected (e.g., threaded port, compression fitting), determine the interface form on the other end of the nipple (e.g., NPT male thread, compression nut).

3. Barb Design Type:

   • Single/Double Barb: Suitable for low-pressure and standard applications.

   • Multiple Barbs/Helical Barb: Provides stronger pull-out resistance, suitable for medium-pressure systems with pulsation or vibration.

   • With Shoulder/Reinforcing Ring: A raised ring at the base of the nipple provides a thrust face for the clamp, ensuring more stable installation.

4. Pressure and Temperature: Confirm that system operating conditions are within the ratings of both the PTFE material and the hose itself. Note: The pressure rating of a hose connection point is typically lower than that of a welded hard-pipe connection of the same bore size.

Installation "Three Musts" and "Three Must Nots":

• Must clean the nipple's barbed end and the hose's inner wall with isopropyl alcohol or high-purity water before installation.

• Must use a dedicated hose clamp (typically stainless steel, such as a constant-tension spring clamp or double-wire clamp) for securing, ensuring the clamp is positioned tightly in the groove behind the last barb or against the shoulder (if present).

• Must push the hose straight onto the barbed end until it bottoms out, ensuring the hose end face is against the nipple's shoulder (if present).

• Must NOT use ordinary zip ties or clamps with insufficient clamping force as substitutes for dedicated hose clamps.

• Must NOT forcibly tighten the threaded end at the equipment side before the hose is fully seated, as this can twist or even fracture the nipple.

• Must NOT exceed the recommended pressure and temperature limits of both the hose itself and the nipple, especially since elevated temperatures significantly reduce PTFE's strength.

Conclusion

The Pure PTFE Hose Nipple is the critical final hardware component enabling safe and flexible transfer in high-purity, corrosive fluid systems. It ensures a seamless, pure, and reliable transition between the system's "rigid backbone" and its "flexible extremities."

Correctly selecting a nipple that matches the hose inner diameter, combined with professional installation, forms the foundation for ensuring the leak-free, long-term operation of the entire hose transfer system. It makes operations such as temporary chemical addition, mobile equipment cleaning, and flexible instrument sampling safe and convenient, playing an indispensable role in modern precision fluid engineering.

Note: For actual product selection, always provide the inner diameter (ID) and wall thickness of the hose to be connected, the equipment port type, media name, and operating temperature/pressure. To ensure absolute safety, pressure testing of the assembled connection is recommended for critical applications.
