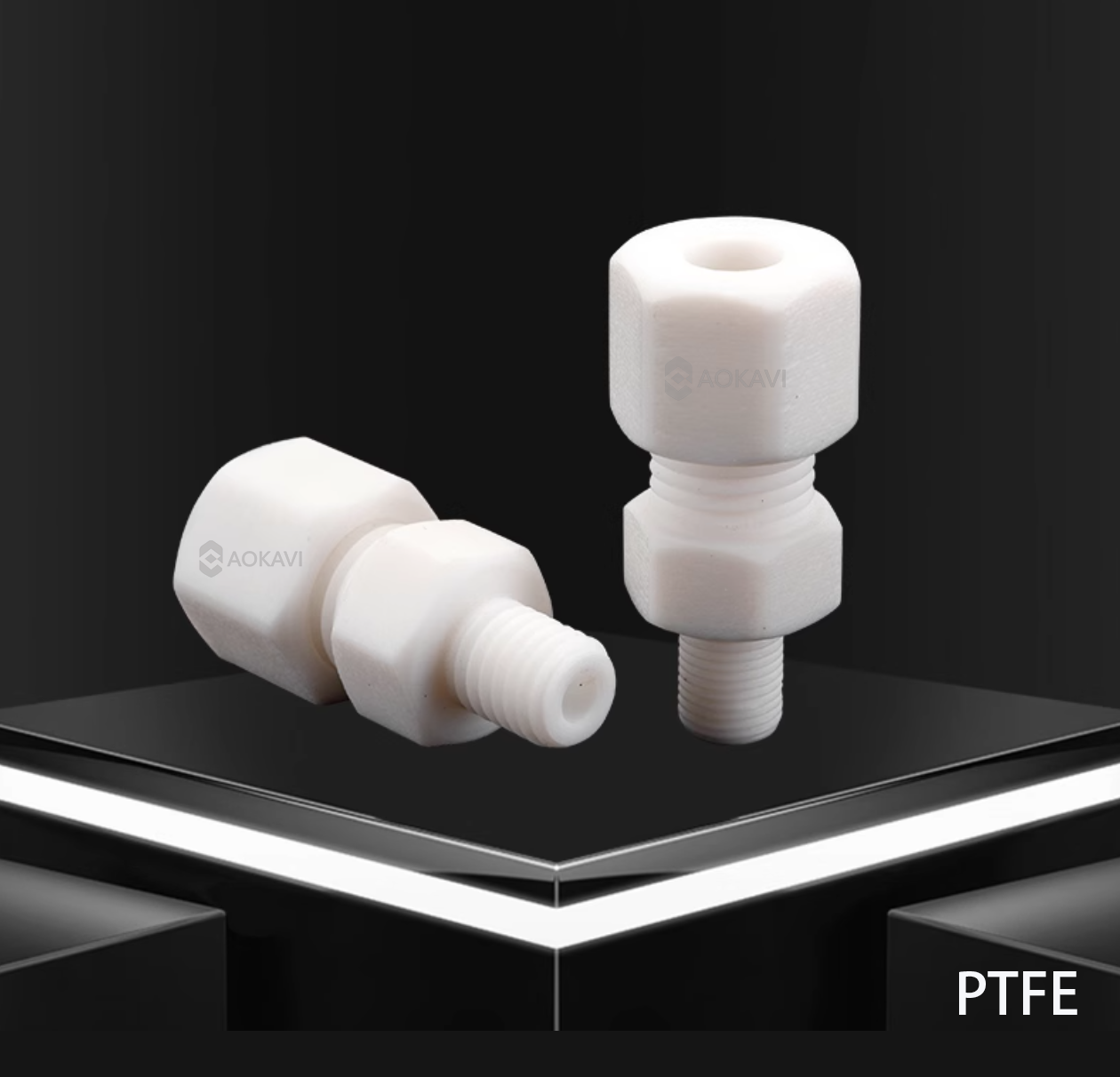

Pure PTFE Reducer Nipple: The "Precision Adapter" for High-Purity Piping Systems

In the construction and modification of high-purity and highly corrosive fluid systems, engineers often face a practical challenge: how to safely, reliably, and permanently connect two PTFE pipes or fittings of different diameters without introducing contamination or sacrificing corrosion resistance? Whether it's to adapt to different equipment port specifications, optimize local flow rates, or achieve compact spatial layouts, this seemingly small connection point is crucial. The Pure PTFE Reducer Nipple is precisely the specialized component born to accurately solve this problem.

It is not merely a size "converter" but the seamless extension of system chemical inertness and cleanliness across different pipe diameters. Manufactured entirely from 100% PTFE, it ensures that the entire flow path from the larger bore end to the smaller bore end is within an absolutely pure, metal-free environment.

Core Definition: What is a Pure PTFE Reducer Nipple?

A Pure PTFE Reducer Nipple refers to a connector, entirely molded or CNC-machined from 100% PTFE, featuring different bore sizes at its two ends. It is typically designed as a short tubular piece with standard interfaces (e.g., socket weld ends, threads) on both ends but with different inner diameters, enabling "reducing" or "increasing" pipe connections.

Based on structure, they are mainly divided into two types:

1. Concentric Reducer Nipple: The centerlines of the flow paths at both ends coincide. This is the most widely used type, suitable for conventional flow adjustment.

2. Eccentric Reducer Nipple: The centerlines of the flow paths at both ends are offset. This type is specifically used in applications where the top or bottom of the pipeline needs to be kept level during installation, such as preventing air pockets or liquid accumulation in piping systems.

Core Value: Why is it a Necessary Choice in Demanding Systems?

1. Maintains Full-Flow Path Inertness and Purity: When connecting different diameters, fluids contact only PTFE throughout, eliminating the risk of ionic contamination and corrosion that could arise from using metal adapters.

2. Enables System Flexibility and Optimization: Allows easy connection of equipment, valves, or instruments with different specifications without replacing the entire pipeline, simplifying system design and optimizing space utilization and fluid dynamic performance.

3. Ensures Connection Integrity and Reliability: Compared to makeshift conversion solutions, the integrally molded Pure PTFE Reducer Nipple offers a more robust structure. Standardized hot melt welding or threaded connections can form a permanent, leak-free, integrated flow path.

4. Avoids Potential Failure Points: In corrosive environments, reducer nipples made from different metals or non-fluoroplastic materials will quickly fail. The pure PTFE material ensures the nipple's service life matches that of the main piping system.

Standard Size Range: Focused on Size Adaptation in Precision Systems

Due to the mechanical strength limitations of solid pure PTFE material and the challenges in manufacturing and cost for large-diameter reducer products, the conventional manufacturing and usage range for Pure PTFE Reducer Nipples typically does not exceed 1 inch (DN25) at either end. They primarily serve instrumentation, analytical systems, small process modules, and laboratory setups.

The table below outlines typical size combinations and application references:

Core Guidelines for Selection, Installation, and Use

Four Key Selection Factors:

1. Specify Both End Sizes and Standards: Accurately measure or confirm the outer diameter and connection standard (e.g., socket weld pipe OD, NPT thread specification) of the pipes to be connected at both ends.

2. Determine Reducer Direction and Type:

   • Concentric or Eccentric: Concentric reducers are used in the vast majority of cases. Eccentric reducers are chosen only when horizontal pipes need to maintain a level bottom or top for draining liquids or gases.

   • Reducing or Increasing: Clearly define based on the process flow and fluid direction.

3. Select Connection Method:

   • Hot Melt Socket Welding: The preferred and most reliable permanent connection method, forming a crevice-free, leak-free integral unit, especially suitable for fixed, non-moving piping.

   • Threaded Connection: Suitable for applications requiring future maintenance and disassembly, relying on the precision fit of PTFE threads and potentially using PTFE thread seal tape for auxiliary sealing.

4. Evaluate Operating Conditions: Confirm that the system's operating temperature and pressure are within the rated limits of the PTFE material and the chosen connection method. Note that the reducer point may introduce additional local resistance due to flow velocity changes.

Installation and Use "Three Musts" and "Three Must Nots":

• Must clean the inner and outer walls of the nipple and the pipe ends to be connected with clean, high-purity solvent (e.g., isopropyl alcohol) or ultrapure water before installation.

• Must, if using hot melt welding, have it performed by trained personnel using dedicated PTFE welding equipment, strictly controlling temperature, pressure, and time to ensure complete fusion of the welding surfaces.

• Must consider the potential additional pressure drop from the reducer nipple during system design and provide adequate support for the connected piping to prevent the nipple from bearing bending stress.

• Must NOT install a reducer nipple arbitrarily without clarifying the flow direction and process requirements, especially in applications where severe cavitation may occur.

• Must NOT use it in conditions exceeding its pressure and temperature ratings, or expose it to strong mechanical impact or vibration environments.

• Must NOT over-tighten a threaded reducer nipple using mismatched tools, to prevent PTFE thread stripping or nipple body cracking.

Conclusion

The Pure PTFE Reducer Nipple is the precision "adapter" for achieving flexible size transition and system integration optimization in high-purity and corrosive fluid systems. With its material's absolute purity, it ensures the continuity of fluid integrity, safety, and purity when transitioning across different pipe diameters.

Correctly selecting and applying a reducer nipple is a key detail reflecting the thoroughness of fluid system engineering design. It is not merely a simple pipe connector but an important functional unit enabling efficient, compact, and reliable system operation.

Note: For actual product selection, always provide the supplier with the exact outer diameter/thread specification of the pipes to be connected at both ends, the media name, operating temperature and pressure, and the clear reducer direction (e.g., "1 inch NPT to 1/2 inch Socket"). For complex systems, consultation with a professional engineer for necessary fluid calculations is recommended.
