Pure PTFE Elbows: The Directional "Guides" for High-Purity and Corrosive Piping

In complex semiconductor, biopharmaceutical, or fine chemical piping systems, pipelines often need to change direction to navigate around equipment, adapt to spatial layouts, or optimize fluid dynamics. When these pipelines carry high-purity chemicals, highly corrosive media, or drug solutions extremely sensitive to metal ions, a simple yet critical component—the Pure PTFE Elbow—becomes the silent "guide" ensuring system integrity and medium purity.

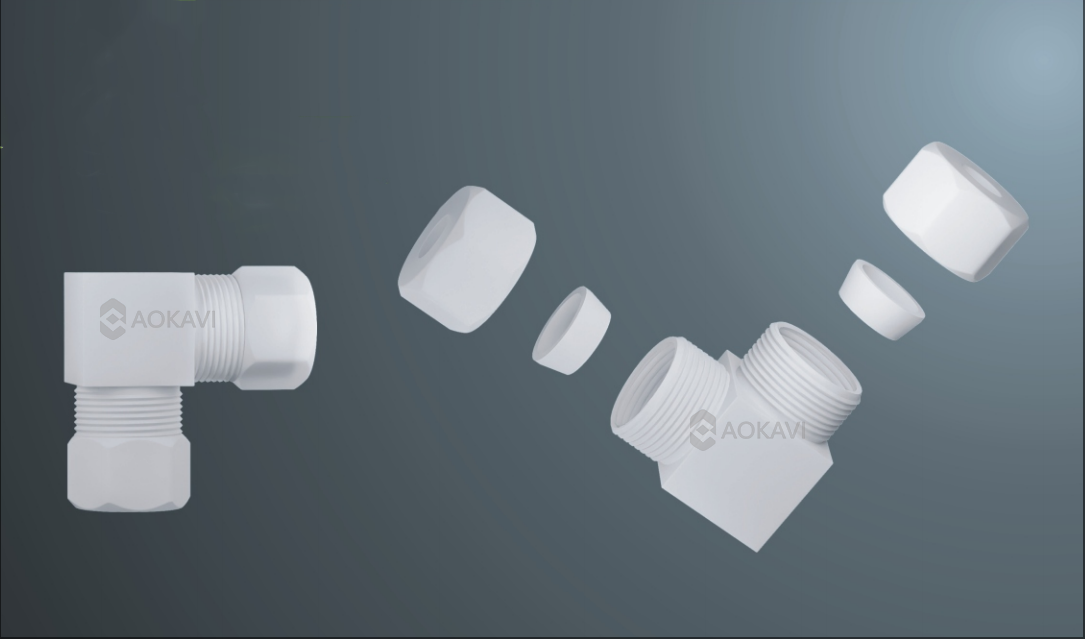

A Pure PTFE (Polytetrafluoroethylene) elbow is a pipe fitting that changes direction, with its entire structure molded or CNC machined from 100% PTFE material. It is not merely a simple bend in the pipeline; it integrates PTFE's unparalleled chemical inertness into the very function of the pipe, ensuring that the fluid remains in an absolutely inert, contamination-free environment throughout its change in direction.

Core Value: Why Choose Pure PTFE Elbows?

1. Continuation of Chemical Inertness: Ensures that highly corrosive media such as strong acids (e.g., hydrofluoric acid, hot concentrated sulfuric acid), strong alkalis, halogens, and organic solvents remain in contact with a 100% corrosion-resistant surface during the turn, eliminating any risk of metal ion leaching.

2. Zero Contamination and Ultra-High Cleanliness: The material itself is non-leaching, making it ideal for applications with stringent cleanliness requirements like semiconductor ultrapure water (UPW) systems and biopharmaceutical purification chromatography systems, avoiding the introduction of contamination points at bends.

3. Extremely Low Surface Energy and Smooth Flow Path: PTFE's inherent non-stick properties and low coefficient of friction ensure smooth media flow, reducing pressure drop and material residue, which is particularly beneficial for high-viscosity or crystallization-prone fluids.

4. Standardized Turning Angles: The most common are 90° and 45° elbows, which can meet the vast majority of pipeline layout needs, enabling compact and efficient piping design.

Conventional Size Range: Focused on Small, Precision Piping

Due to the limited mechanical strength of pure PTFE material and the high difficulty and cost involved in uniformly sintering and precision-forming large-diameter pure PTFE elbows, their conventional product bore size range is mainly concentrated at 1 inch (DN25) and below. They are widely used in instrumentation, laboratories, and small to medium-sized process units.

The table below outlines their typical size specifications:

Selection, Installation, and Usage Guide

Core Selection Factors:

1. Angle and Bore Size: Based on the piping design drawings, clarify the required elbow angle (90° or 45°) and the pipe outer diameter/bore size.

2. Connection Method:

   • Hot Melt Socket Welding: The most common and reliable connection method. Uses a dedicated hot melt welding machine to fuse PTFE pipe and fitting into one piece, forming a permanent, leak-free, and crevice-free joint. Suitable for most fixed pipelines.

   • Threaded Connection (NPT): Suitable for situations requiring removable maintenance or connection to equipment. Relies on the precise fit of PTFE threads for sealing.

   • Compression Fitting Connection: Facilitates easy installation and disassembly, but long-term sealing reliability is generally lower than welding.

3. Bend Radius: Note the difference between "Short Radius" and "Long Radius" elbows. Long radius elbows (with a bend radius typically 1.5 times the pipe diameter) offer lower flow resistance and are more fluid-friendly.

Key Points for Installation and Use:

1. Professionalism in Hot Melt Welding: Must be performed by trained personnel using a dedicated PTFE hot melt welding machine, strictly controlling temperature, pressure, and time to ensure weld quality and avoid weak or burnt welds.

2. Avoid Mechanical Stress: Pure PTFE elbows, especially larger ones, have significantly lower mechanical strength and rigidity than metal. Piping should be properly supported during installation to prevent the elbow itself from bearing excessive torsional, tensile, or vibrational forces, which could cause cracking.

3. Pressure and Temperature Limits: Always operate within the manufacturer's specified Maximum Working Pressure (typically not exceeding 10 bar at room temperature) and Temperature Range (typically -200°C to +200°C). Increasing temperature significantly reduces its pressure-bearing capacity.

4. Thermal Expansion Consideration: PTFE has a high coefficient of thermal expansion. In long pipelines or systems with significant temperature variations, reasonable expansion joints or flexible sections must be designed to prevent thermal stress from damaging the elbow or connections.

Important Limitations and Considerations

1. Not Suitable for High-Pressure or High Mechanical Impact Environments: Never use them in applications with water hammer, severe pressure fluctuations, or potential external impacts.

2. Moderate Wear Resistance: If the medium contains hard particles or crystal slurries, long-term冲刷 may cause wear on the inner wall of the elbow's outer curve.

3. UV Sensitivity: Long-term exposure to strong ultraviolet light (e.g., direct outdoor sunlight) may cause slow aging of PTFE. Protective jacketing is recommended for outdoor use.

4. Cost Consideration: Compared to PVC, PP, or metal elbows, pure PTFE elbows have a higher unit cost. However, their lifecycle cost and safety benefits in demanding applications are often irreplaceable.

Conclusion

The Pure PTFE elbow is a seemingly simple yet crucial "directional marker" in high-end fluid systems where corrosion and purity intersect. With the ultimate purity and inertness of its material, it ensures that fluids are neither contaminated nor corroded at every turn. Its focus on "small bore" applications precisely serves those core process stages with the most stringent requirements for material purity and corrosion resistance. The key to its successful application lies in: respecting the physical boundaries of its material, and through professional selection, installation, and system design, allowing this reliable "guide" to perform its duty quietly and persistently within complex piping networks.

If you have specific media, temperature/pressure parameters, or connection method requirements, providing more details will help obtain more specific selection advice.
