Pure PTFE Bulkhead Fittings: The "Boundary Guardians" of Isolation and Connection

Inside complex semiconductor wet process equipment, biopharmaceutical purification systems, or laboratory analytical instruments, there is often a critical need: How can high-purity, highly corrosive fluid lines safely, cleanly, and leak-free pass through equipment walls, panels, or vessel walls? At this point, a seemingly simple yet crucial component becomes the core of the solution—the Pure PTFE Bulkhead Fitting.

It is not merely a physical "wall penetrator" but a reliable "boundary guardian" between the process side and the environment side, or between areas of different pressure or cleanliness levels. It ensures that the fluid path is entirely enveloped by inert PTFE material as it crosses the boundary, eliminating risks of contamination, corrosion, or leakage introduced at the penetration point.

Core Definition: What is a Pure PTFE Bulkhead Fitting?

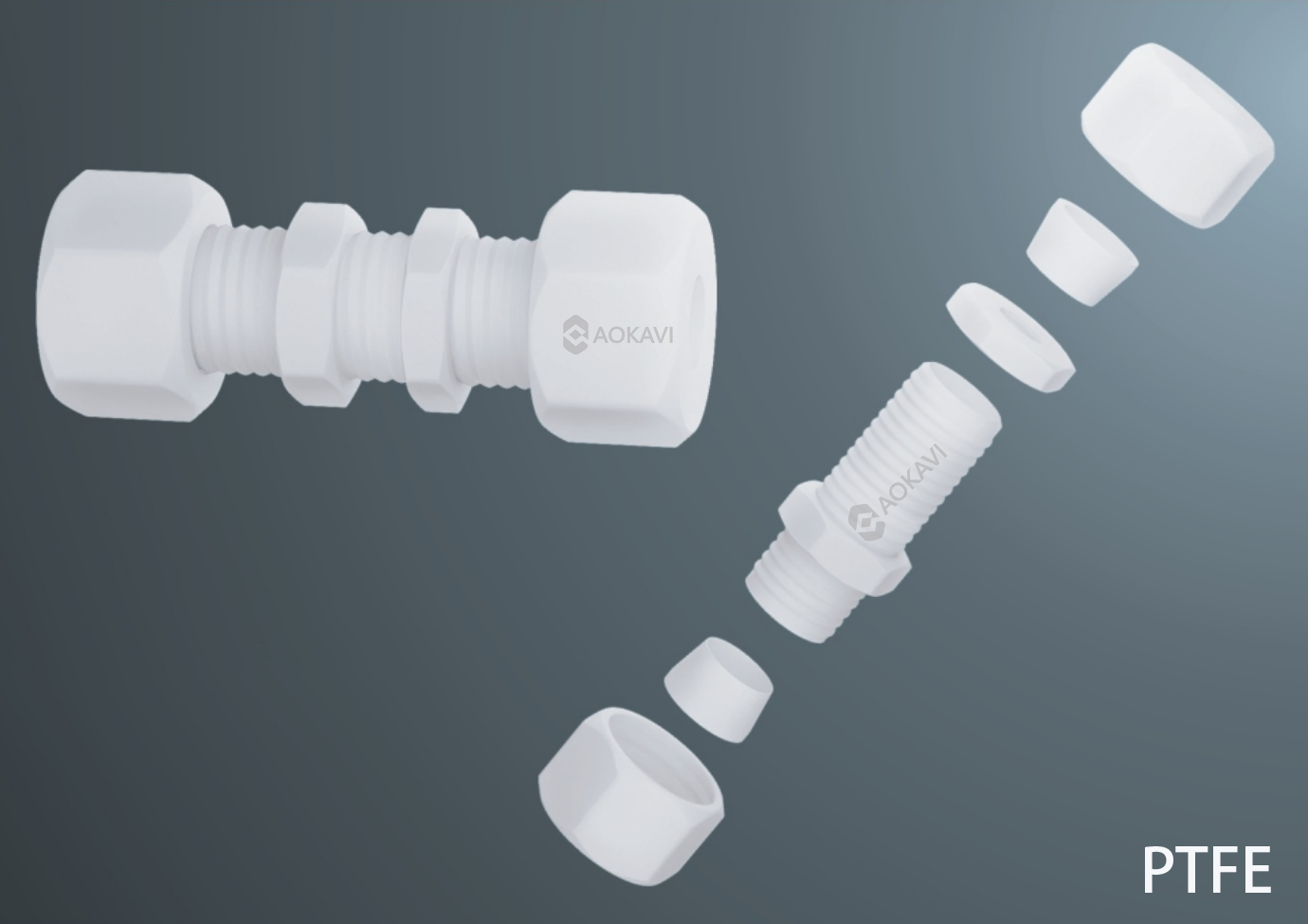

A Pure PTFE Bulkhead Fitting is a specialized connector designed for installation in holes on panels, equipment walls, or vessels. All components that contact the fluid (including the body, sealing surfaces, and nuts) are made from 100% Polytetrafluoroethylene (PTFE) material.

Its core structure typically includes:

1. Fitting Body: The part with external threads and sealing surfaces, inserted into the mounting hole from one side of the panel.

2. Sealing Gasket/Washer: Usually made of PTFE or modified PTFE, ensuring a seal on both sides of the panel.

3. Locknut: Engages with the body threads and is tightened from the opposite side of the panel, securing the entire fitting in place and compressing the sealing washer to achieve a static seal.

4. Dual-Side Ports: Once installed through the panel, both ends of the fitting provide various connection types, such as socket weld ends, external threads, or compression fittings, for attaching tubing/piping.

It enables "one installation, connections on both sides," serving as a cornerstone for building modular, maintainable clean or corrosion-resistant fluid systems.

Core Value: Why Must They Be Used at Critical Boundaries?

1. Achieves Absolute Boundary Penetration: Provides reliable static sealing on both sides of the panel, preventing fluid leakage or cross-contamination between chambers. It is key to ensuring system pressure integrity and environmental safety.

2. Maintains Ultimate Purity and Inertia: The entire fluid path from one side to the other contacts only PTFE, with zero risk of leaching from metals or other materials, making it perfect for ultrapure water, high-purity chemicals, and sensitive biopharmaceutical fluids.

3. Excellent Chemical Corrosion Resistance: Inherits the "king of plastics" properties of PTFE, able to withstand all strong acids, bases, and solvents in the line, ensuring this potentially weak structural point is equally fail-safe.

4. Simplifies Equipment Design and Maintenance: Allows valve manifolds, instruments, or subsystems to be pre-installed on separate panels for offline testing and cleaning, then rapidly integrated with the main system via bulkhead fittings, greatly enhancing equipment modularity and maintenance efficiency.

Standard Size Range: Focused on Precision System Integration

Due to the mechanical strength limitations of pure PTFE material and the stringent requirements for structural strength when large-size fittings bear panel compression and piping stress, the mainstream bore size range for commercially available pure PTFE bulkhead fittings is typically concentrated at 1 inch (DN25) and below. They are specifically designed for precision applications like instrument panels, small equipment panels, and tank ports.

The following table outlines typical size classifications and application guidance:

Selection and Installation Key Guidelines

Five Key Selection Factors:

1. Panel Parameters: Accurately measure the panel thickness and hole diameter. This is the basis for selecting the fitting length and sealing gasket size.

2. Bore Size & Connection Types: Based on piping design, determine the required fluid bore size and the types of connections needed on both sides of the panel (e.g., socket weld pipe, threaded pipe, compression tube).

3. Sealing Form: Most use gasket sealing. For ultra-high vacuum or absolute leak-free requirements, enhanced sealing models with PTFE O-rings or metal gaskets (externally coated with PTFE) are available.

4. Pressure & Temperature Rating: Ensure operating conditions are within the fitting's rated range (typically suitable for low to medium pressure, e.g., 10 bar @ 20°C). Increasing temperature significantly reduces its pressure-bearing capacity.

5. Material Confirmation: Must explicitly require "All wetted parts made of pure PTFE." Avoid cheaper alternatives where only the seal is PTFE and the body is other plastics (e.g., PVC, PP), as these can fail quickly in corrosive environments.

Installation "Four Musts" and "Four Must Nots":

• Must ensure panel hole edges are smooth and burr-free to prevent scratching the fitting or compromising the seal.

• Must evenly tighten the locknut to the manufacturer's recommended torque using tools. Over-tightening is the most common cause of PTFE thread stripping or body cracking.

• Must check and correctly position the sealing washer, ensuring it is flat and not twisted.

• Must provide proper support for the connected piping after installation to prevent the fitting from bearing bending moments long-term.

• Must NOT attempt to correct misaligned panel holes by tightening the fitting alone without connected piping.

• Must NOT use it in applications with severe vibration or potential external impact.

• Must NOT apply lubricants incompatible with the media (e.g., silicone grease) to threads or sealing surfaces. If necessary, use high-purity water or alcohol for lubrication.

• Must NOT exceed its temperature and pressure limits, especially considering PTFE's thermal expansion in systems with thermal cycling.

Conclusion

Pure PTFE Bulkhead Fittings are key hardware for achieving modularity, sealing, and safety in high-purity and corrosive fluid systems. They are like "vias" on a circuit board, allowing signals (fluids) to be reliably transmitted between different layers, while their material (PTFE) ensures zero loss or interference during transmission.

Correctly selecting and applying this "boundary guardian" means establishing a robust, inert barrier at the system's most vulnerable penetration point. It allows engineers to confidently segment and connect different process areas, building modern fluid handling systems that are complex yet reliable, efficient, and safe.

Note: For actual product selection, always provide suppliers with detailed information such as panel thickness, hole size, media name, temperature/pressure, and connection types on both sides to obtain the most suitable product. For special applications (e.g., ultra-high vacuum, sterile requirements), specially designed models may exist.
