Pure PTFE Straight Unions: The Precision "Joints" for High-Purity and Corrosive Piping

In fluid transfer systems within high-tech industries such as semiconductors, biopharmaceuticals, and fine chemicals, the connection points in piping are often critical nodes for ensuring system integrity and preventing leaks and contamination. When the conveyed media are ultrapure water, highly corrosive chemicals, or high-purity solvents, the material purity and corrosion resistance of the connecting fittings become the primary considerations. Pure PTFE Straight Unions are core connecting components born for such demanding applications. They act like precision "joints" in the piping system, ensuring reliable connectivity while safeguarding fluid purity and system safety.

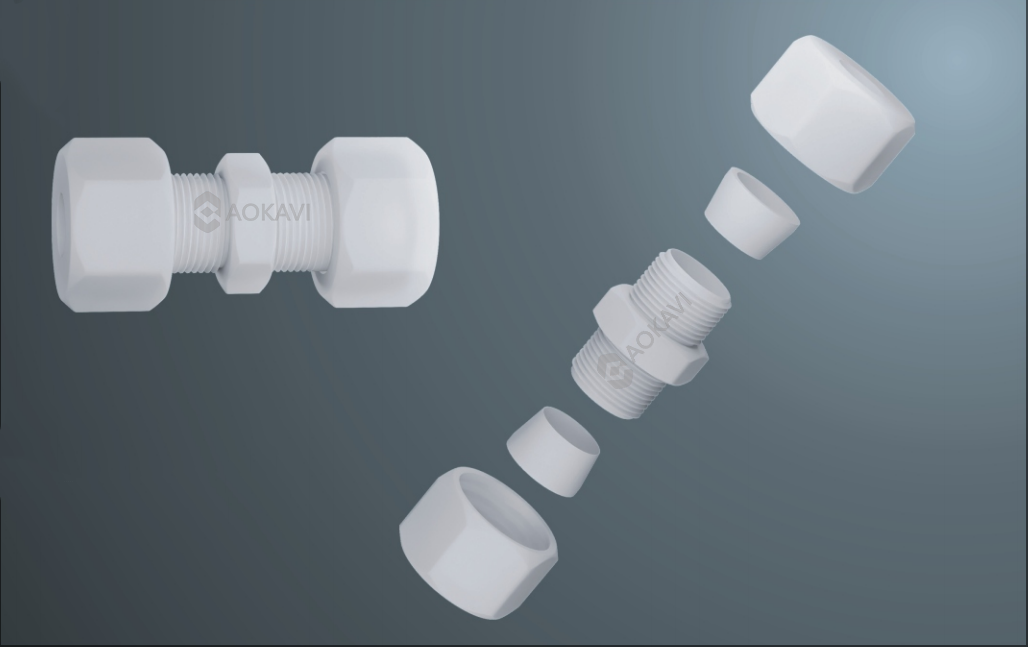

A Pure PTFE (Polytetrafluoroethylene) straight union refers to a straight-through type pipe fitting whose union body, threads, and sealing structure are entirely machined from 100% PTFE material. It is not merely a simple plastic pipe fitting but integrates the ultimate properties of PTFE into the connecting function, providing a full-chain anti-corrosion and anti-contamination solution for high-value fluid piping from the pipe to the fitting.

Core Characteristics and Value

The core value of Pure PTFE straight unions is rooted in the extraordinary properties of PTFE material:

• Absolute Chemical Inertness: Can safely connect and convey almost all strong acids, alkalis, organic solvents, and oxidizing media, fundamentally eliminating corrosion risk at the connection point.

• Extremely High Cleanliness: The material itself is non-leaching and non-extracting, does not introduce metal ions or other impurities into the fluid, perfectly meeting the stringent cleanliness requirements of fields like semiconductor ultrapure water (UPW) and life sciences.

• Excellent Sealing and Ease of Installation: Typically designed as compression type or threaded type. The compression type forms a reliable seal by tightening the nut to compress the PTFE ferrule, causing it to deform and grip the pipe tightly. It is easy to install and allows for repeated disassembly. The threaded type is suitable for space-constrained scenarios, relying on the direct engagement of PTFE threads or配合配合 with metal threads (sealing via PTFE's deformation capability).

• Broad Temperature Adaptability: Maintains stable performance across a wide temperature range from -200°C to +260°C.

Conventional Size Range: "Small Bore, Significant Role"

Limited by the mechanical strength of pure PTFE material (relatively low compared to metals) and the difficulty of precision machining, the conventional product bore size range for Pure PTFE straight unions is generally small, primarily serving piping systems of 1 inch (DN25) and below. This positioning makes them ideal for instrumentation, analytical equipment, small process modules, and laboratory systems.

Their standard size range can be referenced in the table below:

Selection, Installation, and Usage Guide

Core Selection Factors:

1. Pipe Matching: First, confirm that the union specification exactly matches the outer diameter of the PTFE/PFA tubing or pipe to be connected. Compression fittings have strict requirements on tubing outer diameter tolerance.

2. Connection Type Selection:

   • Compression Type: Suitable for tubing connections, easy to install, allows for some pipe flexibility, and is the mainstream choice.

   • Threaded Type: Suitable for occasions requiring rigid connection to equipment ports. The thread type (e.g., NPT, G, Metric) must be specified.

3. Pressure and Temperature Verification: Pure PTFE fittings typically have low rated working pressures (e.g., possibly around 10 bar at 20°C) which decrease significantly with increasing temperature. Ensure operating conditions are within the safe area of their performance curve.

Key Installation Precautions:

1. Cutting and Preparation: The pipe end must be cut squarely and deburred to ensure it is flat and smooth. This is a prerequisite for the ferrule to form a uniform seal.

2. Hand-Tighten First: During installation, always hand-tighten the nut first to ensure threads are aligned and avoid cross-threading.

3. Moderate Final Tightening: When using a tool (usually an open-end wrench) for final tightening, follow the principle of "an additional 1/4 to 1/2 turn." Absolutely avoid excessive or forceful tightening, as this can easily cause the pure PTFE threads to strip or the fitting body to crack.

4. System Pressure Testing: After installation, always perform a system leak check at a pressure lower than the working pressure.

Typical Application Scenarios:

• Ultra-High Purity (UHP) Systems: Branch line connections in semiconductor chip manufacturing ultrapure water and chemical distribution systems (CDS).

• Corrosive Chemical Transfer: Piping connections between various acid, alkali, and organic solvent storage tanks and transfer pumps or valves.

• Analytical Instruments and Laboratory Systems: Key connectors for internal flow paths in equipment like HPLC and flow chemistry systems.

• Biopharmaceuticals: Connections for low to medium-pressure clean process lines in fermenters, chromatography systems, etc.

Important Limitations and Maintenance Points

When selecting and using Pure PTFE straight unions, their limitations must be clearly understood:

1. Mechanical Strength Limitations: Not resistant to high pressure or external mechanical impact/bending stress. Piping should be well-supported to avoid fittings bearing additional loads.

2. "Cold Flow" Characteristic: Under long-term sustained bolt tightening force or system pressure, slow plastic deformation may occur, potentially reducing ferrule preload. Regular sealing checks are recommended for critical applications.

3. Impact of Thermal Cycling: Due to the significant difference in thermal expansion coefficients between PTFE and metal, threaded connections in systems with severe temperature cycling may risk loosening, requiring consideration for periodic maintenance.

4. Not Suitable for Abrasive Media: Hard particles in the medium may wear the sealing surfaces, affecting long-term sealing performance.

Conclusion

Pure PTFE straight unions are indispensable "precision joints" in modern high-purity and corrosive fluid handling systems. They translate the material's ultimate properties into connection reliability, safeguarding the stability and safety of macro processes at a micro scale. Their focus on the "small bore" domain is precisely where the core lifelines of many high-tech industries lie. The key to their successful application lies in a deep understanding of the advantages and boundaries brought by their material properties, and through proper selection and careful installation, allowing this seemingly small component to perform a stable and enduring role in complex fluid networks.

If you need further selection advice for specific media, pressures, or connection types, providing more detailed parameters will allow for more specific guidance.
