Pure PTFE Check Valves: The Precision One-Way Guardian for Demanding Processes

In fields such as chemical processing, pharmaceuticals, semiconductors, and life sciences, fluid systems often face a critical requirement: ensuring that highly corrosive, high-purity, or high-value media flow only in the intended direction, preventing backflow, mixing, or contamination caused by pump starts/stops, pressure fluctuations, or siphoning effects. In such scenarios where material cleanliness and corrosion resistance are near-absolute imperatives, Pure PTFE Check Valves play an indispensable role as the "One-Way Guardian."

Unlike metal valves that use PTFE only for sealing, a Pure PTFE Check Valve refers to one where all core components in contact with the fluid—including the valve body, disc (or clapper), seat, and spring—are manufactured from 100% Polytetrafluoroethylene (PTFE) material. This all-plastic construction integrates PTFE's exceptional chemical inertness, supreme cleanliness, and biocompatibility throughout, providing comprehensive, inside-out protection for sensitive processes.

Core Advantages and Working Principle

The core advantages of Pure PTFE Check Valves stem from the material's inherent properties:

• Unparalleled Corrosion Resistance: Withstands long-term exposure to almost all strong acids, bases, organic solvents, and oxidizers, including aqua regia and hydrofluoric acid.

• Absolute Cleanliness and Non-Contamination: The material itself is non-leaching and non-extracting, introducing no metal ions or other impurities, making it ideal for semiconductor ultrapure water (UPW) and biopharmaceutical purification processes.

• Extremely Low Surface Energy: The PTFE surface is exceptionally smooth and non-stick, offering low flow resistance, minimal media retention, and ease of cleaning to maintain system purity.

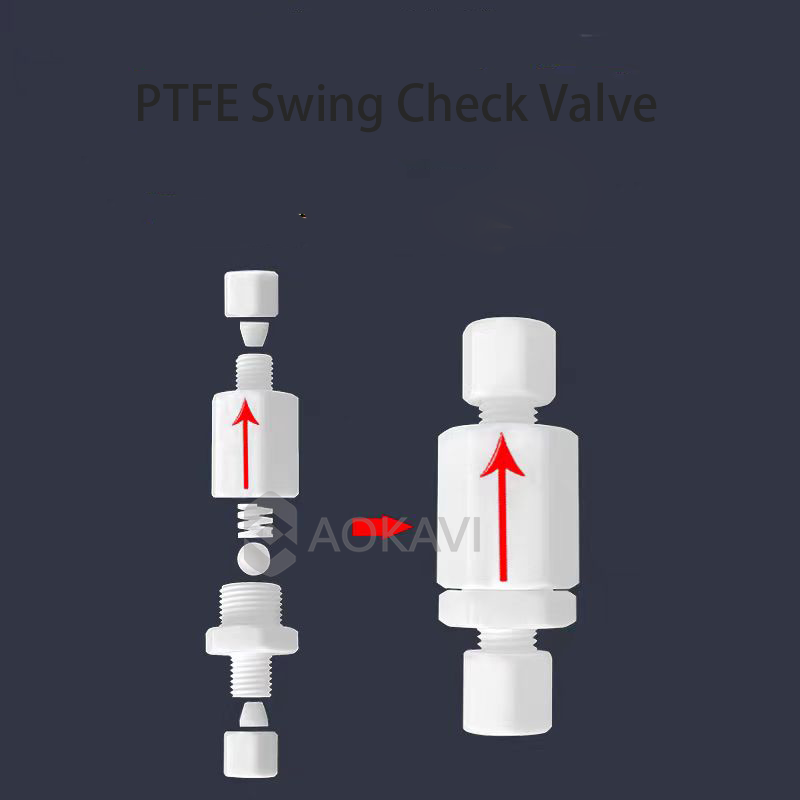

Their operation relies on automatic opening and closing driven by changes in the fluid's own pressure. Common designs include spring-assisted lift-type and swing-type. Taking the former as an example: when the forward fluid pressure overcomes the preload of the PTFE spring (which can be designed to be very low) and the disc's own weight, the disc lifts, opening the passage. When inlet pressure drops or reverse pressure occurs, the spring force and reverse pressure act together to push the disc swiftly back onto the seat, achieving a tight seal and preventing backflow.

Key Size Range: Why "Small is Precise"

Compared to metal or fluoroplastic-lined valves, Pure PTFE Check Valves have a distinct characteristic: their conventional bore sizes are typically small, primarily concentrated at 1 inch and below.

Due to PTFE's significantly lower mechanical strength than metals and its "cold flow" property (slow plastic deformation), manufacturing large-bore, all-plastic structures capable of withstanding higher pressures poses significant technical and reliability challenges. Therefore, Pure PTFE Check Valves primarily serve small to medium flow applications with extreme demands for corrosion resistance and cleanliness.

The table below outlines their typical size specifications:

Selection and Application Guide

Core Selection Factors:

1. Confirm Operating Boundaries: It is paramount to first confirm that the media's chemical composition, operating temperature, working pressure, and flow rate are within the valve's rated capabilities. Pure PTFE valves typically have low working pressure ratings.

2. Choose the Appropriate Type:

   • For ultrapure or corrosive media requiring extremely low cracking pressure and fast response (e.g., semiconductor chemical delivery), PTFE spring-assisted check valves should be prioritized. Their cracking pressure can be as low as 0.25 psi (~0.017 bar), effectively preventing media backflow while minimizing system pressure drop.

   • For viscous media or horizontal piping, a swing-type may be considered, though its sealing may be slightly inferior to the lift-type.

3. Match Connection Type: Select connection types such as compression, threaded, or flanged based on the piping system's material and interface to ensure sealing and avoid installation stress.

Typical Application Scenarios:

• Ultra-High Purity (UHP) Systems: Delivery lines for ultrapure water and high-purity chemicals (e.g., etchants, developers) in semiconductor manufacturing, preventing cross-contamination between different process stages.

• Highly Corrosive Chemical Systems: Inlets/outlets of various acid, alkali, and solvent storage tanks, acting as backup protection for pumps to prevent media backflow after shutdown.

• Life Sciences Sector: Processes in bioreactors, purification chromatography systems, etc., requiring sterility, non-leaching, and non-toxic material release.

• Analytical Instrument Lines: Protecting costly online analytical instruments (e.g., chromatographs, mass spectrometers) from contamination by sample or reagent backflow.

Usage Limitations and Maintenance Key Points

Despite their outstanding advantages, the inherent limitations of the PTFE material must be acknowledged when selecting Pure PTFE Check Valves:

1. Mechanical Strength and Pressure Limitations: They have limited pressure-bearing capacity, with maximum working pressure at room temperature rarely exceeding 10 bar. Over-tightening with tools during installation is strictly prohibited to avoid damaging the valve body.

2. Temperature Effects: The continuous service temperature typically does not exceed 150°C. Increasing temperature significantly reduces its strength and pressure rating. Furthermore, its coefficient of thermal expansion is about 10 times that of steel, necessitating consideration of thermal stress in systems with severe temperature fluctuations.

3. Unsuitable Operating Conditions: Not suitable for slurry media containing hard particles or fibers (which severely abrade sealing surfaces) or piping systems prone to severe water hammer (pressure shock).

4. Installation Orientation: Must be installed strictly according to the flow direction arrow marked on the valve body. For lift check valves, ensure the disc axis is perpendicular to the ground.

5. Regular Maintenance: Be aware of potential "cold flow." Sealing performance may undergo minute changes after prolonged use. Key installations should be included in a regular inspection schedule.

Conclusion

The Pure PTFE Check Valve is a "privileged component" in process industries facing the most demanding fluid challenges. With the ultimate purity and inertness of its all-plastic construction, it safeguards the safety and quality of advanced manufacturing and R&D processes. Its characteristic "small size" is not a drawback but rather a precise positioning within the material's physical boundaries to achieve the highest level of chemical protection and cleanliness assurance. In the complex network of piping where corrosion and purity intertwine, correctly selecting and utilizing this silent "One-Way Guardian" is key wisdom for ensuring long-term, stable, and reliable system operation.
