Pure PTFE Ball Valves: The Reliable "Switch" for Corrosive Flow Paths

In many demanding industrial environments, when strong acids, alkalis, high-purity solvents, or ultrapure water flow through pipelines, the "switch" controlling them must be both reliable and pure. It is in these scenarios that Pure PTFE Ball Valves stand out, becoming an irreplaceable key component in corrosive fluid control systems.

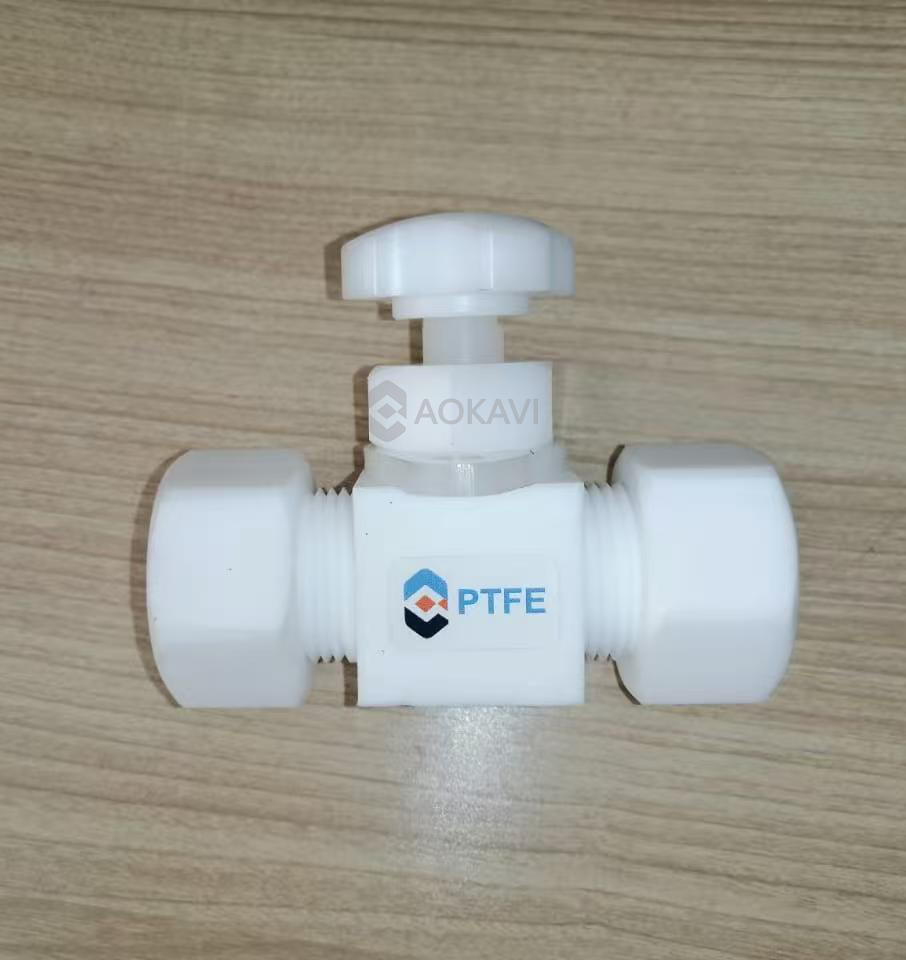

A Pure PTFE (Polytetrafluoroethylene, commonly known as the "Plastic King") ball valve is one where all wetted and pressure-bearing parts—such as the valve body, ball, and stem—are machined from 100% PTFE material. It is not merely a metal ball valve with added PTFE seals; it pushes the material's chemical inertness to its limit, providing a nearly perfect solution for highly corrosive and high-purity applications.

I. Core Advantages of Pure PTFE Ball Valves

1. Unparalleled Corrosion Resistance: Can withstand almost all known aggressive media, including concentrated sulfuric acid, aqua regia, hydrofluoric acid, strong alkalis, and various organic solvents.

2. Exceptional Purity and Bio-inertness: The material itself is non-leaching and non-contaminating, making it ideal for semiconductor ultrapure water, biopharmaceutical, and food-grade applications.

3. Excellent Sealing Performance: The inherent flexibility and self-lubricating properties of PTFE, combined with a precision-machined ball, achieve a near-zero leakage seal.

4. Easy Operation, Minimal Flow Resistance: Quick 90-degree on/off operation. The full-bore design minimizes pressure drop for the fluid.

II. Conventional Size Range and Clear Size Limitations

Compared to metal ball valves, Pure PTFE ball valves have strict boundaries on their size range due to the physical limitations of the material. Their "compactness" is precisely the price paid for their "purity."

Key Note on Size Limitation:
DN25(1 Inches) is widely regarded as the practical size limit for solid Pure PTFE ball valves while maintaining sufficient structural strength and sealing reliability. For larger bore sizes or higher pressure requirements, the industry commonly adopts a "Metal Valve Body with PTFE Lining" structure. This lined valve uses a metal shell for pressure containment and an internal PTFE lining for corrosion resistance, thereby overcoming the size limitation, though its core "purity" is slightly inferior to that of a pure PTFE valve.

III. Crucial Considerations: Inherent Limitations of Pure PTFE Material

When selecting a Pure PTFE ball valve, it is essential to fully understand and respect the following limitations imposed by its material properties, as this is the prerequisite for safe and effective application:

1. Low Mechanical Strength, Unsuitable for High Pressure and Impact

   • Pressure Limitation: The maximum working pressure at room temperature typically does not exceed 10 bar (~150 psi), and the allowable pressure drops sharply as temperature increases. It is absolutely not suitable for high-pressure systems.

   • Careful Installation Required: During installation and tightening, using a cheater bar for excessive torque is strictly prohibited, as it can easily cause valve body deformation or cracking.

2. Pronounced "Cold Flow" Characteristic

   • Long-Term Deformation Risk: Under continuous pressure (especially from flange bolt tightening pressure) and temperature, PTFE undergoes slow plastic deformation (cold flow). This can lead to relaxation of sealing stress on flange faces or loosening of stem packing, potentially causing micro-leakage.

   • Maintenance Requirement: After long-term operation, it may be necessary to re-tighten bolts or adjust the packing gland.

3. High Coefficient of Thermal Expansion

   • PTFE's thermal expansion coefficient is about 10 times that of steel. In applications with severe or frequent temperature fluctuations, this may increase the risk of sticking or leakage. System design should allow for thermal compensation.

4. Moderate Wear Resistance

   • While its chemical performance is outstanding, its wear resistance is far lower than that of ceramics or hardened metals. If the medium contains hard particles or crystals, it will accelerate the wear of the seat and ball, affecting service life.

5. Not Suitable for Extreme Media

   • At high temperatures, a few extreme media such as molten alkali metals (e.g., sodium, potassium) and fluorine gas can react with PTFE.

IV. Typical Application Scenarios and Selection Guide

Ideal Application Scenarios:

• Highly Corrosive Chemicals: Precise transfer and shut-off of acids, alkalis, halogens, and solvents.

• Ultra-High Purity Systems: Ultrapure water (UPW) and chemical distribution systems in the semiconductor industry.

• Life Sciences Sector: Purification and fermentation processes in biopharmaceuticals requiring non-leaching and sterility.

• Demanding Analytical Systems: Sample handling for online analytical instruments requiring zero cross-contamination.

Golden Rules for Selection and Use:

1. Define Operating Boundaries: First, confirm that the media, temperature, and pressure are within the tolerance range of PTFE and the valve's rated values.

2. Size on a "Sufficient" Basis: While meeting flow requirements, prioritize a smaller bore size for greater structural reliability and cost-effectiveness.

3. Prioritize Pressure Safety: System pressure must have ample safety margin, considering the weakening of pressure-bearing capacity with temperature.

4. Match Connection Types: Select appropriate connection methods based on pipeline material to avoid damage from differential thermal expansion or installation stress.

5. Develop a Maintenance Plan: For critical positions, consider the potential need for periodic maintenance due to cold flow or wear.

Conclusion

The Pure PTFE ball valve is a "privileged component" for chemical engineers facing the most challenging fluids. It safeguards process safety and product quality with its ultimate material purity. However, this "privilege" comes with clear physical boundaries. Fully understanding and adhering to its limitations in size, pressure, and mechanical strength is the key to mastering this precise tool. In the complex world where corrosion and purity intertwine, choosing the right valve means choosing safe, reliable, and enduring operation.
