Introduction

In industries such as chemical processing, pharmaceuticals, semiconductors, and high-end laboratories, where highly corrosive, ultra-pure, or sensitive media need to be handled, ordinary metal valves often fall short. This is where pure PTFE (Polytetrafluoroethylene) needle valves become the critical control components. Constructed almost entirely from the "Plastic King" PTFE, these valves safeguard the safety and purity of demanding processes with their exceptional chemical inertness.

1. PTFE: Why is it the "Plastic King"?

PTFE, commonly known as Teflon, possesses exceptionally strong carbon-fluorine bonds in its molecular structure, granting it a series of extraordinary properties:

• Superb Chemical Inertness: Resists corrosion from almost all strong acids, bases, oxidizing agents, and organic solvents, including aqua regia and hydrofluoric acid.

• Excellent High and Low-Temperature Performance: Maintains stable performance across a wide range of -200°C to +260°C.

• Extremely Low Surface Energy: The surface is extremely smooth, non-stick, offers low flow resistance, and is resistant to fouling.

• High Purity: Inherently non-contaminating, making it ideal for ultra-pure fluid handling.

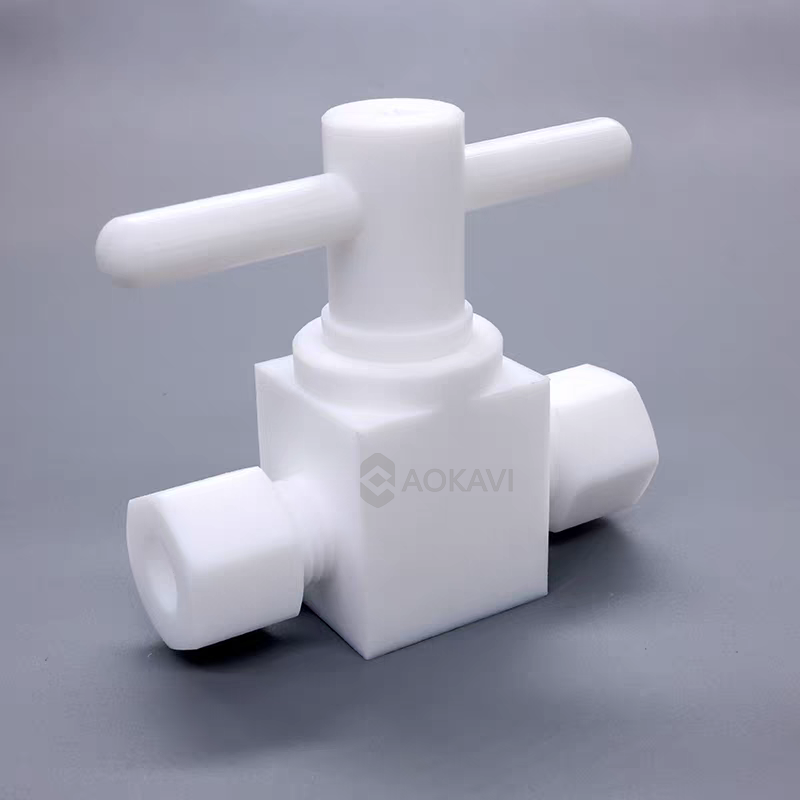

2. Structure and Working Principle of Pure PTFE Needle Valves

Unlike valves that use PTFE only for sealing, pure PTFE needle valves have all wetted parts—including the valve body, valve needle (plug), and stem—made entirely of PTFE.

Their core lies in the needle-shaped plug. By rotating the stem via precision threads, the conical needle point is gradually advanced into or retracted from the orifice of the valve seat. This enables fine, linear, and continuous flow regulation of the flow path. This design is particularly suitable for applications requiring precise control of minute flow rates.

3. Conventional Size Range

The size of pure PTFE needle valves is typically indicated by outer diameter (OD) or port threads to meet different needs from laboratory to industrial scale.

Note: Due to limitations in PTFE's machinability and mechanical strength, pure PTFE needle valves are generally not manufactured in very large sizes. The maximum bore size typically does not exceed 1 inches . For larger sizes or higher pressures, metal valve bodies lined with PTFE are often used.

4. Crucial Considerations: Limitations of Pure PTFE Material

Despite its outstanding properties, the inherent characteristics of pure PTFE impose limitations on valve products, which must be fully considered during selection:

1. Low Mechanical Strength, Not Suitable for High Pressure

   • PTFE has significantly lower tensile strength and stiffness compared to metals.

   • Operating pressures are typically low, generally not exceeding 10 bar (approx. 150 psi) at room temperature, with pressure ratings decreasing sharply as temperature increases.

   • Extreme care is required during installation and tightening to avoid over-torquing, which can deform or crack the valve body.

2. Cold Flow (Creep)

   • Under continuous pressure and temperature, PTFE undergoes slow plastic deformation known as "cold flow."

   • This can lead to stress relaxation at sealing points, potentially causing minor leaks. Long-term use requires monitoring and possible readjustment of stem packing force.

3. High Coefficient of Thermal Expansion

   • PTFE's thermal expansion coefficient is about 10 times that of steel.

   • In applications with significant temperature fluctuations, this can cause changes in fitting clearances, affecting sealing or operation feel. Allowances must be made in system design.

4. Not Suitable for Molten Alkali Metals, Fluorine Gas, and Certain Special Media

   • Despite its extreme chemical inertness, PTFE can react with molten alkali metals (e.g., sodium, potassium) and fluorine gas under high temperature and pressure.

5. Average Wear Resistance

   • Compared to its excellent chemical properties, PTFE's wear resistance is relatively modest.

   • Frequent cycling or media containing abrasive particles can wear the needle tip and seat, affecting sealing and control precision.

6. Relatively High Cost

   • High-purity PTFE raw materials and complex processing (e.g., sintering, precision machining) make pure PTFE valves significantly more expensive than conventional valves.

5. Typical Application Scenarios and Selection Advice

Suitable Applications:

• Ultra-pure water, high-purity chemical delivery systems (e.g., semiconductor UPW, CMP)

• Precise control and sampling of strong acids, bases, halogens, and other corrosive media (e.g., wet etching, chemical synthesis)

• Biopharmaceutical and food-grade processes requiring zero metal ion leaching

• Piping for corrosive gases or vapors (e.g., acid mist exhaust treatment)

Selection and Usage Advice:

1. Define Media and Operating Conditions: Confirm that media composition, concentration, temperature, and pressure are within PTFE's tolerance limits.

2. Prioritize Pressure Safety: Always operate below the valve's rated pressure (considering temperature derating). The system should incorporate safety devices.

3. Handle with Care: Manual operation should be gentle, avoiding impact loads. Never use cheater bars for excessive tightening.

4. Consider Spares and Maintenance: Given potential cold flow and wear, plan for maintenance cycles or spare parts for critical installations.

5. Ensure Connection Compatibility: Pay attention to material compatibility between valve ports and the piping system to avoid leaks from thermal expansion or galvanic corrosion.

Conclusion

The pure PTFE needle valve is an invaluable tool in the field of corrosive fluid handling, combining the chemical protective power of PTFE with the precise regulating capability of a needle valve. However, just as the strongest shield has its limits, understanding and respecting its limitations in mechanical strength and physical properties is the prerequisite for its safe, efficient, and durable use. In the demanding world of chemistry, choosing the right tool enables one to navigate challenges with confidence and finesse.
