PFA Male Connector: The "Corrosion-Resistant Bridge" Between High-Purity Systems and Metallic Equipment

Issuing time:2025-12-30 09:51

In high-purity fluid systems such as semiconductor manufacturing and biopharmaceuticals, there is often a need to connect flexible PFA (Perfluoroalkoxy) tubing to metallic equipment—like reactors, valves, pumps, or instruments—featuring standard female threaded ports. This connection presents a core contradiction: it must leverage the mechanical strength and standard interface of the metal equipment while ensuring that the flowing corrosive or high-purity medium completely avoids contact with any metal to prevent contamination and corrosion. The PFA Male Connector is the ideal solution to this contradiction. It constructs a safe and reliable "all-fluoropolymer barrier" between PFA tubing and metallic ports via a male threaded stud made entirely of PFA.

I. Product Definition & Core Value

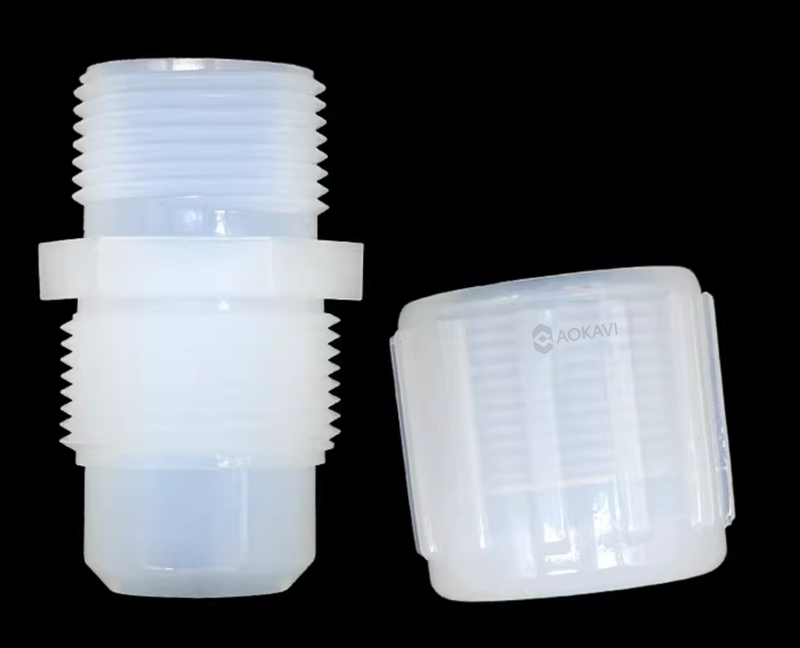

A PFA Male Connector is a component with a standard male thread on one end and a PFA tube fitting on the other. Its core value lies in:

  • Safe Material Transition: The connector body is made of semi-transparent, high-purity PFA. The fluid path is entirely constructed from PFA. Only at the connection point do the PFA male threads mechanically engage with the equipment's female metal threads; the medium itself does not contact any metal, fundamentally preventing electrochemical corrosion and metal ion contamination.

  • Standardized Connection: The male threads typically adhere to internationally recognized standards (e.g., NPT, BSP), allowing direct screwing into standard female threaded equipment ports for quick, reliable installation.

  • Flexible Tubing Interface: The other end of the connector provides an equally reliable interface for connecting PFA soft tubing, primarily through two mainstream methods: the Flared Type and the Beaded (Ball & Socket) Type.

II. Detailed Explanation of the Two PFA Tubing End Interface Methods

The "tube end" design of the PFA male connector determines its connection characteristics with PFA soft tubing. The two mainstream methods each have their optimal application scenarios.

Feature DimensionFlared TypeBeaded / Ball & Socket Type
Working PrincipleA specialized tool is used to heat and flare the PFA tube end. It is placed over the connector's conical seat, and a PFA/PVDF nut is tightened to generate significant radial compressive force for sealing.A solid PFA bead is pressed onto the outer diameter of the PFA soft tube end. This beaded end is inserted into a matching spherical socket on the connector and secured by sliding a lock sleeve, enabling a quick "click" connection.
Connection NatureRigid, Permanent Connection. Forms a robust, solid connection similar to a flange, offering excellent resistance to vibration and pull-out forces, with high sealing pressure capability.Flexible, Quick-Connect/Disconnect. The ball-and-socket design allows for slight angular misalignment, facilitating installation alignment and stress absorption. Easy to maintain and replace.
Sealing ReliabilityVery High. Relies on large-area conical seat compression sealing, offering excellent pressure resistance, suitable for high-pressure or pulsating conditions.High. Relies on precision-machined ball-and-socket fit for sealing. More sensitive to axial pull forces; requires ensuring the lock sleeve is fully engaged.
Installation ComplexityHigher. Requires a specialized heating tool for high-quality flaring operations, demanding skill from the installer.Lower. Tube end preparation (beading) requires a specialized tool, but the on-site connection operation is extremely simple and fast, requiring no additional tools.

Optimal Application

Scenario

Permanent connections for long-term operation with no need for disassembly; high-vibration environments; main pipeline connections with higher system pressure.Modules requiring frequent cleaning, replacement, or equipment commissioning; single-use bioprocess systems; areas with limited space or difficult access.

III. Standard Size Range & Selection Guide

These connectors are primarily used for precise fluid control. Their threaded end bore sizes typically start from 1/4 inch up to a maximum of 1 inch. Selection requires simultaneous confirmation of the thread specification and the PFA tube end specification.

The following table outlines standard size specifications and application references:

Nominal Bore

(Inch)

Typical Male Thread Spec

(Example)

Corresponding PFA Tubing

OD Range

Typical Application Scenarios
1/4”NPT 1/4, BSP 1/46mm, 8mm, 10mmConnecting to metal inlet ports of laboratory analytical instruments (e.g., HPLC, ICP); outlet of small metering pumps; pressure sensor interfaces.
3/8”NPT 3/8, BSP 3/810mm, 12mm, 14mmConnecting to metal ports of small/medium chemical transfer pumps or filters; auxiliary pipeline connections for semiconductor wet processing equipment.
1/2”NPT 1/2, BSP 1/214mm, 16mm, 18mmConnecting to sampling valves or bottom valves of reactors or storage tanks; equipment interfaces for medium-sized purified water systems.
3/4”NPT 3/4, BSP 3/420mm, 22mm, 25mmConnecting to metal interfaces of cooling circulation systems, heat exchangers; core equipment connections for small process systems.
1”NPT 1, BSP 125mm, 28mm, 32mmConnecting to outlet valves of large storage tanks or inlets of large pumps; serving as transition connectors between main system piping and equipment.

Key Selection & Installation Tips:

  1. Confirm Thread Standard: Accurately identify the thread type (e.g., American NPT, British BSPP) and size of the equipment port. Incorrect matching will lead to seal failure and thread damage.

  2. Tube End Matching: The Flared or Beaded interface must precisely match the outer diameter of the PFA tubing used, and the corresponding brand's specialized installation tool must be used for the operation.

  3. Installation Operation:

    • Wrap an appropriate amount of PTFE thread seal tape or apply specialized silicone grease on the metal threads to lubricate, aid sealing, and prevent galling between PFA and metal.

    • During screwing, start by hand-tightening several turns to ensure proper alignment before using tools for final tightening. Avoid excessive torque to prevent damage to the PFA threads.

IV. Core Application Fields

PFA Male Connectors are critical components for safely integrating "metal equipment - PFA tubing" in the following fields:

  • Semiconductor Manufacturing: Safely connecting PFA ultra-pure chemical distribution lines to stainless steel valve manifolds, pump bodies, or process chamber metal ports.

  • Pharmaceutical & Bioprocessing: Used to connect stainless steel fermenters, filtration skids, freeze dryers with single-use or reusable/cleanable PFA transfer lines.

  • Chemical & Laboratory: Safely transferring corrosive chemicals from PFA tubing into standard equipment with metal threaded ports, such as reactors or heat exchangers.

  • High-End Analytical Instruments: Serving as ideal adapters between an instrument's standard metal ports and high-purity PFA sample/waste lines.

Summary

The PFA Male Connector, through the ingenious combination of an "all-fluoropolymer flow path" and "standard threads", has become an indispensable "safety bridge" in high-purity and corrosive fluid systems for connecting non-metallic tubing to metallic equipment. The two tube end options—Flared Type and Beaded Type—respectively provide solutions for ultimate reliability and efficient flexibility. Understanding their principles and selecting correctly is a key step in building a modern fluid handling system that is both safe, reliable, and easy to maintain.
