Shanghai Aokavi Industrial Co.,Ltd.: PFA and FEP Tubing from Cleanroom Production for Reliable High-Purity Fluid Transfer

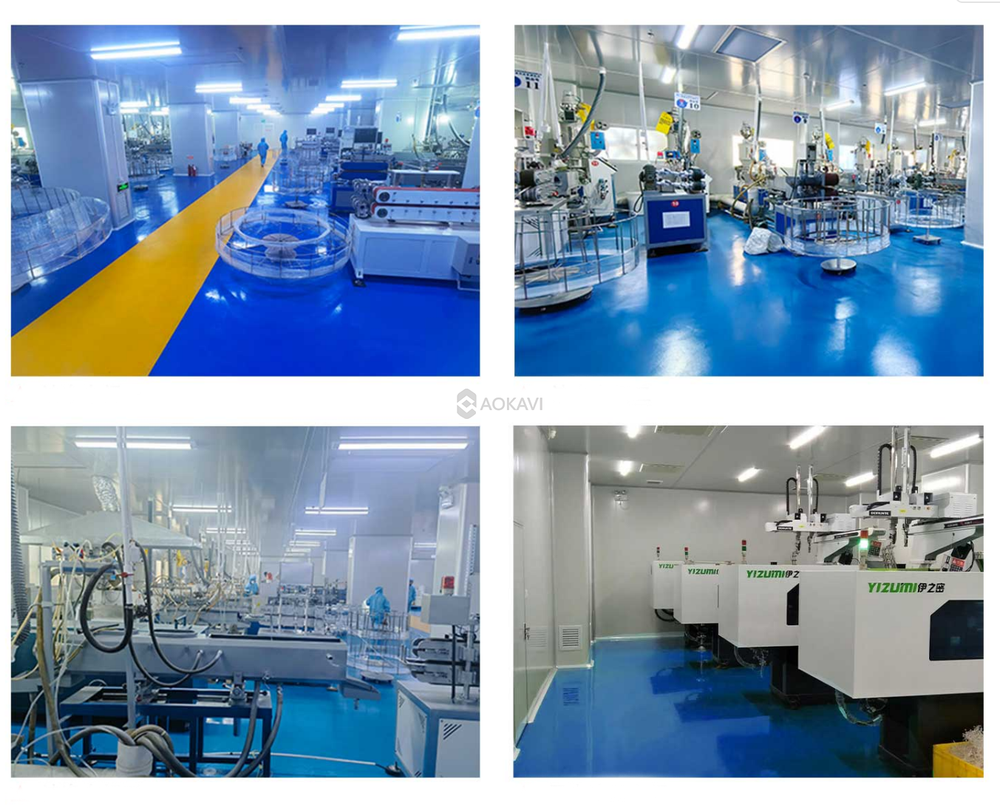

In fields such as semiconductors, pharmaceuticals, and fine chemicals, fluid transfer tubing may appear inconspicuous, yet it directly affects product yield, process safety, and media purity. The leaching level, corrosion resistance boundary, and long-term stability of a single tube often become the key weak link in the cleanliness level of an entire production line. Shanghai Aokavi Industrial Co.,Ltd. relies on its own cleanroom and focuses on the scaled, high-cleanliness production of PFA and FEP tubing, providing matching solutions from tubing to fluid control components for high-end manufacturing scenarios that are sensitive to contamination.

PFA Tubing: High-Purity "Robust" Piping for Extreme Operating Conditions

PFA (perfluoroalkoxy polymer) tubing is the category of fluoroplastic tubing whose overall performance comes closest to PTFE while also offering the processing convenience of thermoplastics. The PFA tubing produced in Aokavi's cleanroom has core advantages concentrated in three aspects.

The first is a broad boundary of temperature resistance and corrosion resistance. PFA tubing covers a long-term service temperature range from -200°C to 260°C and can withstand almost all strong acids, strong alkalis, and organic solvents. At high temperatures, it still maintains resistance to chemical attack and wear environments. For the transfer of etching solutions and cleaning liquids in semiconductor wet processes, as well as the long-cycle transfer of strongly corrosive media in chemical scenarios, this temperature-chemical compatibility combination is irreplaceable.

The second is extremely low leaching risk. The cleanroom environment forms a closed-loop control from raw material transfer and extrusion molding to cleaning and packaging, keeping metal ion and particulate residues on the inner wall of the tubing at extremely low levels. The almost non-adsorptive nature of PFA material itself, combined with clean production conditions, makes it one of the preferred tubing materials for ultrapure water (UPW) and high-purity chemical transfer. In wafer cleaning and wet processes, the cleanliness of PFA piping systems is directly related to the level of particle control on wafer surfaces.

The third is mechanical retention at high temperatures. Compared with FEP, PFA has greater advantages in thermal stability and mechanical performance under high-temperature scenarios, making it suitable for piping nodes that remain in thermal cycling or high-temperature chemical environments for long periods.

Based on the above performance, typical applications of Aokavi PFA tubing cover: semiconductors and microelectronics—ultrapure water circulation, etching solution/cleaning liquid transfer, and precision filtration piping for wet electronic chemicals; chemicals and pharmaceuticals—transfer of strongly corrosive media and high-purity reagent distribution; and analytical testing instruments—flow path systems with strict requirements for sample non-contamination.

FEP Tubing: A Pragmatic Balance Among Transparency, Flexibility, and Cost-Effectiveness

FEP (fluorinated ethylene propylene) tubing belongs to the same first tier of fluoroplastics as PFA in terms of chemical resistance, but its performance emphasis differs. The most prominent characteristics of FEP tubing produced in Aokavi's cleanroom lie in the combination of optical transparency and flexibility. FEP tubing is highly transparent, allowing operators to visually inspect fluid status, bubbles, or retained particles inside the tube. This has practical operational value in pharmaceutical liquid preparation, laboratory analysis, and food and beverage piping.

In terms of temperature resistance boundary, FEP tubing covers a long-term service temperature range from -80°C to 205°C and has excellent resistance to common acids, alkalis, and organic solvents. However, in the face of extreme corrosive media such as high-concentration halogens, its upper resistance limit is slightly lower than that of PFA. At the same time, FEP is significantly more flexible than PFA and is easier to bend, cut, and heat seal. It offers outstanding installation convenience in narrow spaces or internal equipment piping that requires frequent disassembly and assembly. In terms of cleanliness, FEP can also meet high-purity requirements. Its inner wall is smooth and its leaching level is low, and it has its own characteristics in permeation barrier and transparency, facilitating visual inspection of main transfer lines.

Therefore, the application focus of Aokavi FEP tubing falls on: pharmaceuticals and biotechnology—drug solution transfer, auxiliary piping, and laboratory flow paths; food and beverage—high-temperature water lines, steam lines, and pump/valve connections in equipment (FEP material complies with relevant FDA food-contact regulations); electronics and testing instruments—corrosion-resistant gas paths and coolant circuits inside equipment; and general chemical scenarios involving medium- and low-temperature media transfer where both corrosion resistance and installation flexibility are required.

How to Choose Between PFA and FEP: A Pragmatic Decision Trail

The two tubing materials are not substitutes but complementary choices for different operating conditions. If the transferred medium involves high temperature (approaching or exceeding 200°C), strong corrosiveness (such as high-concentration acids and alkalis or etching solutions), and extreme sensitivity to leaching, PFA tubing is the more reliable option. If the operating conditions are in the medium- and low-temperature range, with conventional corrosion intensity, while requiring transparency and visibility, frequent bending installation, or comprehensive cost control, FEP tubing covers a large number of daily high-purity fluid scenarios with better flexibility and cost-effectiveness. Aokavi has cleanroom production capacity for both PFA and FEP tubing and can provide unbiased selection advice and piping matching solutions based on customers' specific media, temperature, pressure, and cleanliness level requirements.

Conclusion

The value of cleanroom production lies not in the label, but in the traceable cleanliness control, reproducible leaching levels, and predictable long-term service performance behind every meter of tubing. Shanghai Aokavi Industrial Co.,Ltd. uses PFA and FEP tubing as its entry point to embed cleanroom manufacturing capability into high-end fluid transfer chains in semiconductors, pharmaceuticals, chemicals, and food. Whether it is PFA for strongly corrosive and high-temperature conditions, or FEP for transparency, flexibility, and pragmatic cost, Aokavi is willing to become a trustworthy link in customers' high-purity fluid systems with cleanroom-grade quality control standards.
