A Fitting’s “Cleanliness Obsession”: Why Semiconductor Specialty Gas Cylinders Cannot Do Without CGA/DISS

In semiconductor manufacturing, microelectronics, or advanced laboratories, the value of a specialty gas cylinder often lies not in the gas itself, but in whether the “invisible channel” from the cylinder valve to the process tool is absolutely clean and absolutely leak-tight. A seemingly inconspicuous cylinder connection is the starting point of that channel. Any micro-leak or release of a single particle is enough to scrap an entire batch of wafers or cause a safety incident in the laboratory.

Ordinary industrial fittings rely on “tightening” to seal, but when dealing with ultra-high-purity (UHP) gases or toxic and corrosive specialty gases, “tightening” is far from sufficient. This is precisely why CGA/DISS fittings exist.

The Error-Proofing Logic of CGA/DISS: Misconnection Is More Dangerous Than Leakage

One of the core principles of the CGA (Compressed Gas Association) fitting system is non-interchangeability. The cylinder valve outlets for different gases are deliberately designed to be mutually incompatible in thread specification, diameter, handedness, or nipple dimensions. This physically eliminates the catastrophic error of installing an oxygen regulator onto a hydrogen cylinder.

DISS (Diameter Index Safety System) is a strengthened version developed specifically for ultra-high-purity applications within the CGA framework. Its name reveals the principle: different gases are distinguished by a precise diameter index, further narrowing the possibility of misconnection. CGA/DISS fittings are typically used for the direct connection between semiconductor/high-purity gas cylinder valve outlets and regulators or pigtails, and are recognized as the “ultra-high-integrity service” interface on the UHP gas delivery chain.

The Essence of Sealing: Not “Plugging” but “Compressing a Precision Gasket”

Ordinary threaded connections rely on thread fillers or thread seal tape to stop leaks, but CGA/DISS takes a completely different route. Its sealing mechanism is a face seal: a precision-machined gasket is clamped between a pair of polished annular ridges (toroids)—one on the cylinder valve outlet and the other on the fitting nipple. When tightened, the metal or polymer gasket undergoes controlled deformation along this tiny annular contact band, forming a sealing line.

This explains a design detail in the manual that is easily overlooked: “no ‘effective thread’ area.” Sealing does not occur on the threads but between the end-face annular ridges and the gasket. Therefore, the threaded region exists only to provide clamping force, and its precision and condition must serve the integrity of the end-face seal.

The choice of gasket directly determines the temperature limit and application scenario. The data in the manual is very clear: nickel gaskets can be used up to 315°C, PTFE up to 250°C, while PCTFE and PVDF stop at 125°C and 170°C, respectively. In semiconductor high-temperature processes or scenarios requiring bake-out and degassing, nickel gaskets are almost the only choice; in room-temperature corrosive gas applications, PCTFE or PVDF provides a more economical chemically inert solution.

From Micro-Roughness to Macro Safety: The Engineering Intent Behind the Parameters

The Ra ≤ 0.125 μm marked on the internal surface of the fitting body is not a decorative specification. In ultra-high-purity gas lines, surface roughness is directly related to two issues: particle entrapment and gas adsorption/desorption. The smoother the flow-path surface, the less likely particles are to remain, and the less likely the surface is to “trap” residual molecules from the previous gas during purge and changeover. The microelectronics industry has specific standards for the cleanliness and particle-free nature of cylinder valve connections (such as the ISO 10692 series), precisely to control such microscopic contamination below acceptable thresholds.

Material selection follows the same principle of “introducing no variables.” 316L stainless steel is the baseline option, while 316L VAR (vacuum arc remelted) further reduces internal impurities and porosity. When extreme cleanliness or corrosive environments are required, VAR-grade bodies and nuts provide higher metallurgical cleanliness.

Regarding pressure ratings, the manual states that all values conform to ASME code pressure piping calculations, and that the working pressure rating is ultimately determined by the gasket material. This is a key engineering logic: the strength of the fitting body may allow higher pressures, but the physical and chemical resistance of the gasket is the actual “weakest link” in the system pressure limit. When determining the main-pipeline pressure rating according to ASME B31.1, the psig nominal value must also be multiplied by a 0.94 derating factor. This reminds designers that they cannot simply equate the numbers in a catalog with actual allowable service conditions.

The Overlooked “Plating Defense Line” and Installation Taboos

The warning at the end of the manual about plating is the root cause of many field problems. The silver plating on the female nut of the cylinder connection serves to prevent galling during repeated assembly and disassembly of stainless steel threads—when stainless steel rubs directly against stainless steel under high pressure and high torque, cold welding can easily occur, causing the fitting to “seize” onto the valve outlet and ultimately damaging the valve or the fitting itself.

Therefore, any operation that would erode or damage the silver plating must be strictly prohibited: electropolishing, harsh acid cleaning, and improper passivation can all cause the threads to lose this solid-lubricant defense line. Once the plating is damaged, the risk of thread wear during the next installation rises sharply, and sealing reliability collapses with it.

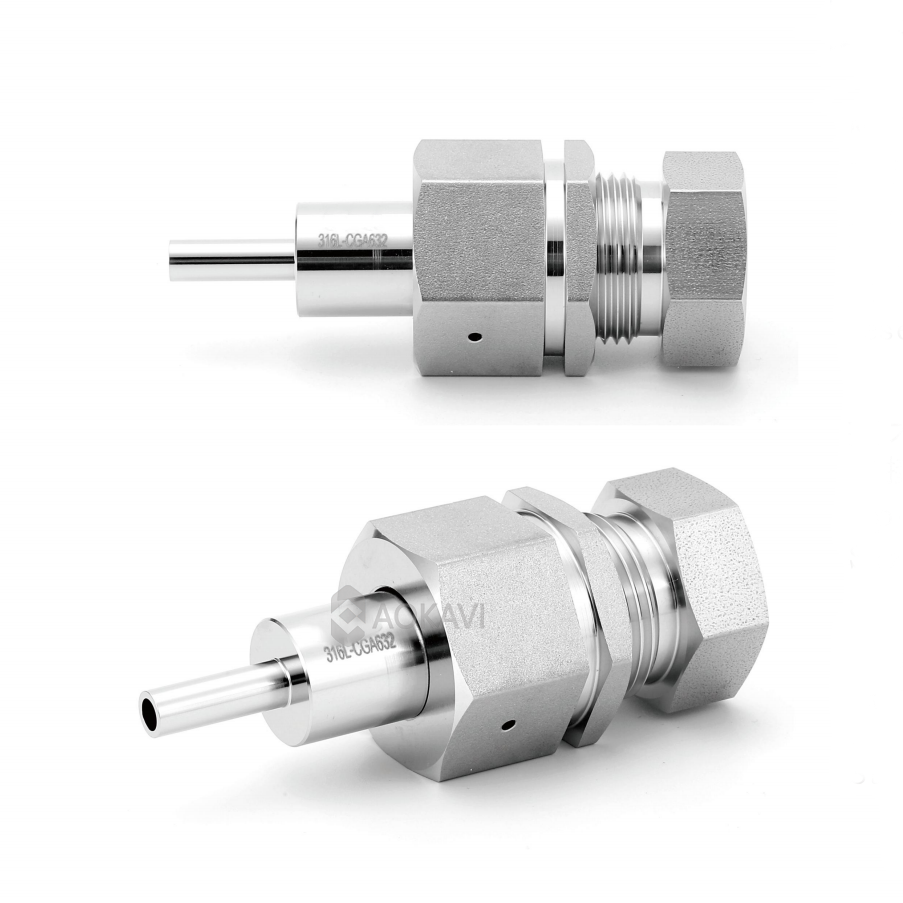

Equally important as plating protection is the single-use principle for gaskets. Take the DISS/CGA 632 connection commonly used for silane cylinders as an example. A field report from SEMATECH documented a recurring lesson: if a newly installed connection leaks, do not continue to tighten it in place. Continued torque application only over-work-hardens the nickel gasket and may even damage the precision annular ridge on the valve outlet, turning a small problem into permanent damage. The correct approach is to disassemble, replace with a new gasket, and reassemble according to the specified torque.

Torque itself must also be taken seriously. The same report noted that one cause of early silane leaks was “failure to use a torque wrench”: insufficient torque leads to inadequate sealing, while excessive torque crushes the annular ridge or causes gasket failure. Another widely emphasized prohibition is that PTFE thread seal tape must never be used on CGA and DISS fittings. Fragments of thread seal tape can enter the flow path and become a source of particle contamination. More seriously, it can make the installer mistake the “rough feel” of the threads for sealing, thereby stopping tightening before the end faces are properly compressed—leaving a connection that looks “very tight” but is actually micro-leaking.

Conclusion

The design philosophy of CGA/DISS high-purity cylinder connections is to replace human judgment with physical error-proofing, replace thread fillers with precision end-face sealing, and control microscopic contamination through the discipline of materials and surface engineering. For the engineers and technicians who use them, understanding “why thread seal tape cannot be used,” “why a leaking connection cannot simply be retightened,” and “why the plating must not be damaged” is more fundamental than memorizing a particular torque value. A fitting is only a few centimeters long, but what it protects is the first—and often most fragile—integrity boundary of the entire gas supply chain, from the cylinder to the process chamber.
