If you have ever seen a concrete pump truck on a construction site, you are surely impressed by its long boom. It can deliver concrete continuously to heights of dozens or even over a hundred meters, pouring it into steel reinforcement frameworks. But have you ever wondered how concrete — a material that is heavy, sticky, and full of gravel and sand — is actually "pushed" up into the sky?

The answer lies inside the pump truck, in a component that looks inconspicuous but is absolutely critical: the delivery cylinder. If we compare a concrete pump truck to the human circulatory system, then the delivery cylinder is its "heart." Every contraction and expansion pumps the "blood" of concrete toward its destination.

1. What Is a Delivery Cylinder?

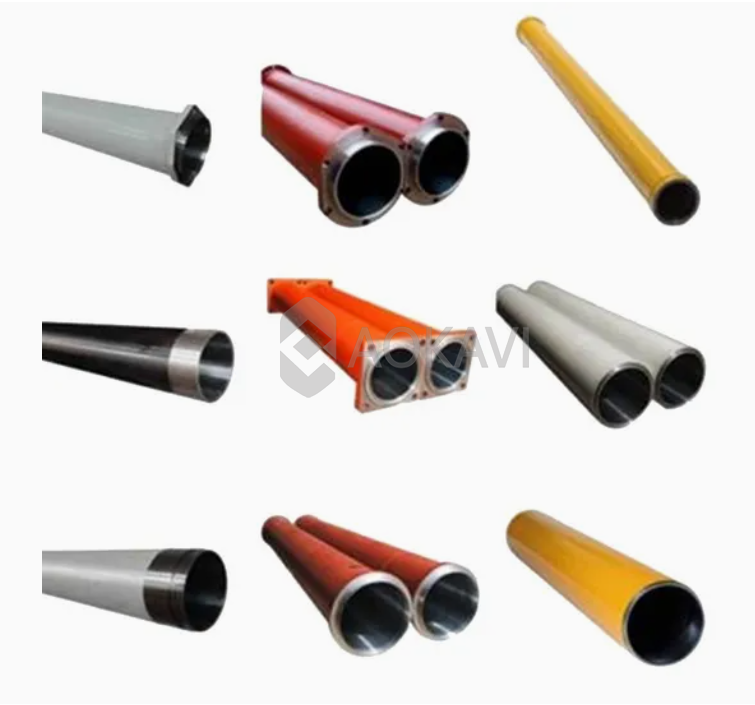

Simply put, a delivery cylinder is a metal tube — usually used in pairs — with a piston that moves back and forth inside. Its task is very clear:

Draw concrete in → Push concrete out

That sounds simple, but it is not easy in practice. Concrete is not water or oil. It is viscous, rough, and contains a large amount of hard aggregate, which causes extreme wear on the inner walls of the equipment. Therefore, a delivery cylinder must not only withstand enormous pressure but also be highly wear-resistant and corrosion-resistant, while maintaining sealing and stability under long hours of high-load operation.

A typical concrete pump truck is usually equipped with two delivery cylinders. They are mounted side by side and work alternately: while one cylinder is drawing material in, the other is pushing material out. In this way, concrete flows through the pipeline almost continuously, rather than in a stop-and-go manner as with a single cylinder.

2. How Does It Work?

To understand how a delivery cylinder works, we can think of it as a giant syringe.

• The syringe barrel = the cylinder body of the delivery cylinder

• The syringe plunger = the concrete piston inside the delivery cylinder

• The inlet and outlet = the distribution valve connected to the hopper and the delivery pipe (commonly an S-valve)

The working cycle goes roughly like this:

1. Suction stroke
   The piston moves backward, creating negative pressure inside the cylinder, and the concrete in the hopper is "drawn" into the cylinder body. At this time, the opening of the distribution valve is aligned with the hopper, allowing the concrete to enter smoothly.

2. Switching
   When the cylinder is full, the distribution valve rotates or shifts so that the cylinder outlet is connected to the delivery pipeline instead. At the same time, the distribution valve of the other delivery cylinder switches to the suction position.

3. Pushing stroke
   The piston moves forward with strong force, pushing the concrete out of the cylinder, through the distribution valve, into the delivery pipeline, and then along the boom to the pouring point.

The two delivery cylinders work alternately — one drawing in while the other pushes out — just like the left and right ventricles of a heart, achieving continuous concrete pumping. The distribution valve (S-valve) acts like the heart's valves, ensuring that concrete flows in only one direction and does not flow backward or mix between cylinders.

The core power of this system comes from the hydraulic system. Hydraulic oil drives the piston rod of the main hydraulic cylinder, which in turn drives the concrete piston inside the delivery cylinder. Because the hydraulic system can provide extremely large thrust, the pump truck is able to send heavy concrete to heights of over a hundred meters and distances of several hundred meters.

3. Why Is It So "Tough"?

The working environment of a delivery cylinder is extremely harsh:

• High pressure: During pumping, the pressure inside the cylinder can reach dozens of megapascals, equivalent to several hundred atmospheres.

• High wear: The sand, gravel, and cement slurry in the concrete constantly rub against the inner wall of the cylinder and the piston.

• Corrosiveness: Cement slurry is alkaline and has a certain corrosive effect on metals.

• Long working hours: Construction sites often require continuous operation for several hours or even longer.

For these reasons, the material and manufacturing process of delivery cylinders are highly demanding.

Traditional delivery cylinders are often made of high-strength alloy steel as the base material, with the inner wall subjected to surface treatments such as quenching and hard chrome plating to improve hardness and wear resistance. The chrome-plated layer can significantly extend the life of the cylinder body, but once the plating wears through, the base material will wear out much faster.

In recent years, ceramic-lined delivery cylinders have become increasingly common. A layer of wear-resistant ceramic material (such as alumina or silicon carbide) is bonded to the inner wall of the metal cylinder body. The ceramic is extremely hard and far more wear-resistant than chrome plating, often lasting several times longer. However, the ceramic layer is relatively brittle and requires more demanding processing and operating conditions.

In addition, the concrete piston that works together with the delivery cylinder is equally critical. It is usually made of elastic materials such as polyurethane or rubber, so that it can fit tightly against the cylinder wall to prevent leakage, while also being easy to replace after wear. The piston is a consumable part and needs to be inspected and replaced regularly.

4. Common Problems and Maintenance

1. Cylinder body scoring or wear

If concrete contains oversized aggregate or metal debris, or if lubrication is poor, the inner wall of the cylinder may develop scratches or scoring. Minor wear can cause internal leakage and pressure drop; in severe cases, concrete will leak from behind the piston, and pumping efficiency will drop noticeably.

Maintenance tips:

• Strictly control the aggregate size and mix proportion of the concrete.

• Ensure the lubrication system is working properly and add grease regularly.

• Address any scoring on the inner wall promptly, and replace the cylinder body or carry out remanufacturing repairs when necessary.

2. Piston wear

The concrete piston is in direct contact with both the cylinder wall and the concrete, making it one of the fastest-wearing components. When worn, it can cause poor sealing, insufficient suction, and weak pumping.

Maintenance tips:

• Regularly check piston wear and replace it in time once the wear limit is reached.

• Choose reliable quality pistons and select the appropriate material according to the concrete characteristics.

3. Abnormal noise or switching impact

If the two delivery cylinders are not working in coordination, or if the hydraulic system pressure fluctuates greatly, abnormal noise and vibration may occur. This is usually related to the distribution valve, hydraulic directional valve, or electrical control, but it can also be caused by internal leakage in the delivery cylinder.

Maintenance tips:

• Regularly inspect the hydraulic system pressure and switching logic.

• Keep the concrete level in the hopper stable to avoid drawing in air.

4. Insufficient lubrication

Good lubrication is needed between the delivery cylinder and the piston. Otherwise, friction increases, temperature rises, and wear accelerates rapidly. Modern pump trucks are usually equipped with an automatic lubrication system, but manual inspection and replenishment are still required.

5. Development Trends of Delivery Cylinders

As the demand for super high-rise buildings and long-distance pumping continues to grow, delivery cylinders are also being upgraded:

• More wear-resistant materials: From chrome plating to ceramics, and further to nanocomposite coatings and gradient alloys, service life is becoming longer and longer.

• Lightweight design: While ensuring strength, optimizing structures and materials helps reduce overall weight and improve vehicle stability.

• Intelligent monitoring: Sensors can monitor pressure, temperature, and wear conditions inside the cylinder in real time, providing early warnings of failures and enabling preventive maintenance.

• Remanufacturing technology: Worn delivery cylinders can be restored through inner-wall remelting, re-plating, and other methods, reducing operating costs.

Conclusion

Although the delivery cylinder is hidden inside the pump truck and seldom noticed in daily life, it is a key component that determines pumping efficiency, reliability, and cost. It is this pair of "metal hearts" that tirelessly moves back and forth, enabling concrete to overcome gravity and flow to every corner of the city.

The next time you pass a construction site and see a pump truck boom stretching into the air while concrete pours out of the pipe, perhaps you can think about this: behind that deafening roar, there is a pair of tough delivery cylinders, repeating the simple action of "draw in — push out" again and again, supporting the rise of one skyscraper after another.
