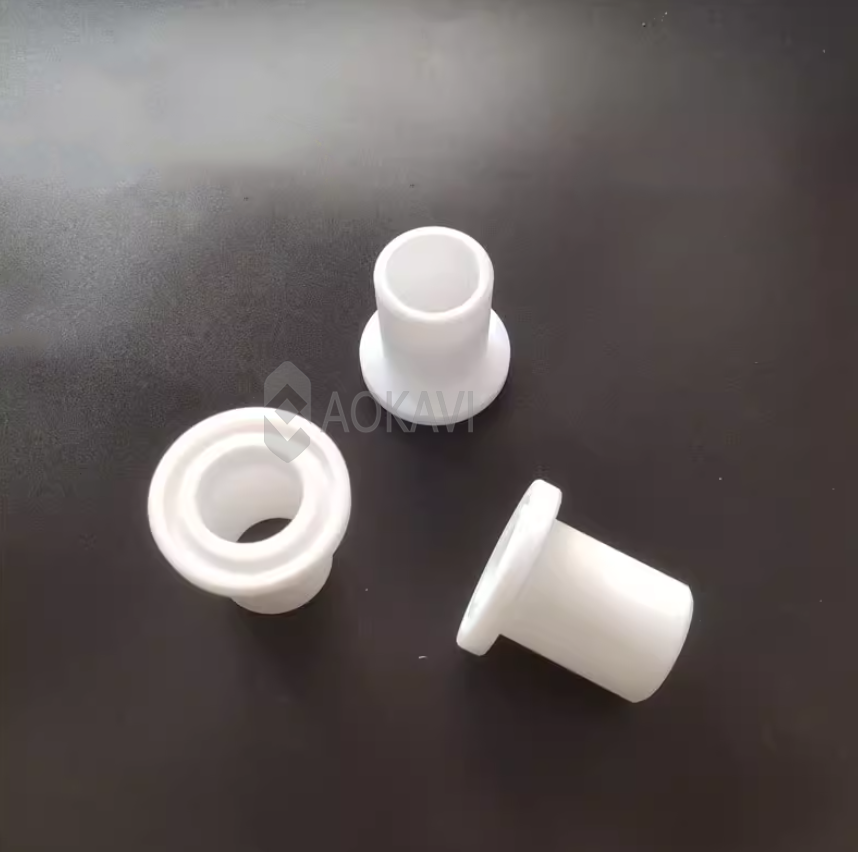

The Lubrication Master That Runs Without Oil: The Science Behind PTFE Bushings

1. From Nonstick Pans to the Heart of Industry: Getting to Know PTFE

If you’ve ever used a nonstick frying pan, you’ve probably heard the name “Teflon.” Its technical name is polytetrafluoroethylene, or PTFE for short – a plastic material that was discovered by accident in 1938. That accidental discovery went on to become an indispensable “lubrication master” in modern industry.

PTFE’s most impressive property is its extremely low coefficient of friction – it ranks among the lowest of any known solid material. Imagine the slipperiness of ice on ice; PTFE sliding against a metal surface has even less resistance. On top of that, it boasts a remarkable set of other abilities: it can withstand temperatures from -200°C to 260°C, resists attack by almost any acid, alkali, or organic solvent, and nothing sticks to its surface.

These impressive properties have made PTFE a star in aerospace, chemical piping, electrical insulation, and many other fields. But there is one application you might easily overlook – bushings (also called plain bearings or sleeve bearings).

2. What Is a Bushing, and Why Does It Matter?

Think about the wheel on your bicycle – the wheel spins around the axle. If the axle and the wheel hub were to rub directly against each other, they would wear out quickly. A bushing is the “buffer layer” placed between them. Its job is simple: make rotation smoother and reduce wear.

Traditional bushings are often made of bronze or copper. They are strong, but they have a major drawback – they must be constantly lubricated with oil or grease. In factory machinery or automotive components, every bushing needs regular maintenance. If you forget to oil one, it can seize up or wear out rapidly, causing equipment downtime.

PTFE bushings changed the game entirely.

3. The Three‑Layer Construction: A Masterpiece of Engineering

Most PTFE bushings on the market are not simply solid pieces of PTFE plastic. They typically have a three‑layer composite structure:

• Outer layer (backing): usually low‑carbon steel or stainless steel, providing strength and rigidity to carry loads.

• Intermediate layer: sintered spherical bronze powder, about 0.2–0.3 mm thick. This enhances wear resistance and helps conduct frictional heat away from the sliding surface.

• Inner layer (working surface): an ultra‑thin PTFE compound, only 0.01–0.03 mm thick – thinner than a sheet of paper.

It is this wafer‑thin PTFE layer that gives the bushing its “soul.”

4. The Secret to Running Without Oil: Self‑Lubricating Transfer Film

The most fascinating feature of PTFE bushings is that they need no external oil supply to work properly. The secret lies in a mechanism called the “transfer film.”

As the shaft rotates inside the PTFE bushing, a microscopic amount of the PTFE layer transfers onto the shaft surface, forming a solid lubricant film just a few micrometres thick. This film acts like a “slippery coat” on the shaft – so the shaft and bushing are no longer metal‑on‑plastic, but lubricating film sliding on lubricating film, with minimal friction.

How good is this self‑lubricating effect? The dry‑running coefficient of friction of a PTFE bushing typically falls between 0.04 and 0.20. For comparison, steel‑on‑steel dry friction is about 0.8. In other words, PTFE bushings have several to more than a dozen times less friction than traditional metal bushings.

What’s more, the transfer film continuously self‑repairs – as it wears away, the PTFE layer replenishes it. As long as the PTFE layer is not completely exhausted, the lubrication effect persists.

5. Four Key Advantages of PTFE Bushings

1. Maintenance‑free – save time and effort

Traditional bushings require regular oiling and oil changes. Once a PTFE bushing is installed, you can practically forget about it. This is especially valuable in hard‑to‑reach locations, such as bushings sealed inside machinery.

2. Reliable in extreme environments

PTFE bushings operate over a wide temperature range, from -195°C to +280°C. Whether in the bitter cold of the Arctic or the high heat of an engine compartment, they perform reliably. And because PTFE resists almost all chemicals, they also last long in corrosive environments like chemical plants and marine equipment.

3. Quiet, smooth, and anti‑seizure

PTFE’s low friction makes for quieter and smoother operation. More importantly, it eliminates the “seizure” problem common in metal bushings that run dry – where the shaft and bushing lock together solidly.

4. Lightweight and compact

PTFE bushings can be made with very thin wall sections, helping reduce overall equipment size and weight.

6. Where Are They Used? More Widely Than You Think

PTFE bushings are used in an incredibly broad range of applications:

• Home appliances: air‑conditioner compressors, for example, use PTFE self‑lubricating bushings to solve crankshaft wear issues.

• Automotive: shock absorbers, door hinges, power steering pumps, brake calipers, and more.

• Industrial machinery: printing presses, textile machines, hydraulic pallet trucks, gear pumps – all of these rely on PTFE bushings to keep running day after day.

• Agricultural and construction equipment: tractors, harvesters, drill spindles, and similar heavy machinery.

• Special environments: marine stern tube bushings, which operate continuously in seawater, perform reliably; heavy‑duty truck self‑lubricating bushings withstand huge loads and harsh road conditions.

Even the copier or printer in your office may contain tiny PTFE bushings.

7. Not Perfect: PTFE Bushings Have Their Limitations Too

Of course, PTFE bushings are not a panacea. Pure PTFE has a few inherent weaknesses: it is relatively soft, prone to creep (gradual deformation under long‑term load), and has poor thermal conductivity. Engineers have overcome these issues in two ways:

First, adding fillers – carbon fibre, graphite, polybenzimidazole, and other materials are mixed into the PTFE to significantly improve wear resistance and creep resistance.

Second, using a metal backing – steel or bronze provides the strength, while PTFE handles the lubrication. This “best‑of‑both‑worlds” design allows PTFE bushings to carry heavy loads while maintaining excellent self‑lubricating performance.

8. Conclusion

From an accidental plastic discovery to an essential engineering material, PTFE has come a long way. And the PTFE bushing is one of its quietest yet brightest successes – it needs no oil, yet inside countless machines it tirelessly reduces friction, cuts wear, and extends service life.

Next time you turn on your air conditioner, start your car, or use any rotating equipment, think about this: inside that unassuming bushing, a layer of PTFE thinner than paper might be saving you fuel, electricity, and hassle. That is the beauty of materials – sometimes the smallest presence carries the biggest responsibility.
