The Industrial Revolution of the "Plastic King": How PTFE Rollers Solve Problems of Adhesion, Wear, and Corrosion

Have you ever wondered why your non‑stick frying pan at home can fry eggs without sticking? Or why the rollers on factory assembly lines don't get gummed up with glue or ink? Behind all this lies a miraculous material –polytetrafluoroethylene (PTFE), better known by its brand name Teflon. When this material is made into rollers, its range of applications is far broader than you might imagine.

What is PTFE? The Legend of the "Plastic King"

PTFE is a high‑molecular polymer formed by the polymerisation of tetrafluoroethylene monomers. It is called the "Plastic King" because it possesses several almost "superpower‑like" physical and chemical properties:

• Extremely low coefficient of friction –PTFE has one of the lowest coefficients of friction among solid materials, with a dynamic coefficient as low as 0.01–0.04. This means it is incredibly "slippery", allowing objects to glide over its surface with ease.

• Excellent non‑stick properties –Its surface tension is so low that almost nothing can firmly adhere to it. Whether it is glue, ink, resin, or food paste, it is very difficult for anything to "stick around".

• Superior corrosion resistance –PTFE can withstand virtually all strong acids, strong alkalis, and organic solvents, earning it the reputation of being "one of the best corrosion‑resistant materials".

• Broad operating temperature range – It can work stably for long periods in extreme temperatures from ‑180°C to +260°C, unfazed by either severe cold or high heat.

It is these extraordinary characteristics that have made PTFE rollers a "star product" in many industrial fields.

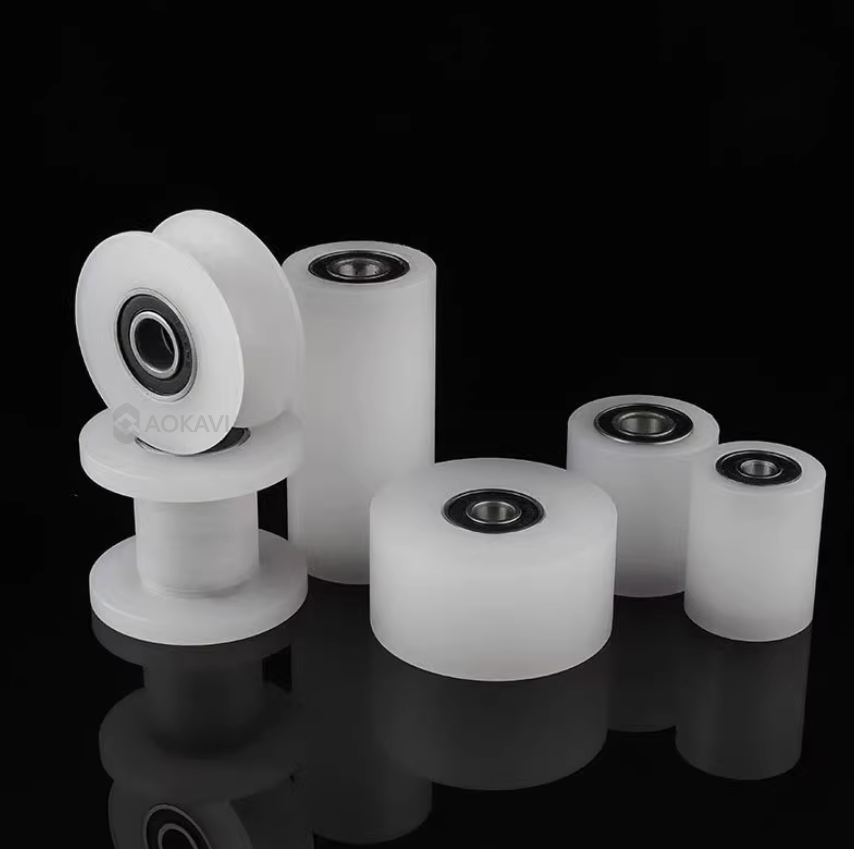

Core Advantages of PTFE Rollers

So, what makes rollers made of PTFE so exceptional?

• Self‑cleaning and non‑sticking –The surface of a PTFE roller is highly hydrophobic and oleophobic, effectively preventing material adhesion. This allows the roller to achieve a near‑"self‑cleaning" effect during operation, greatly reducing downtime for manual cleaning.

• Self‑lubricating and maintenance‑free –Thanks to its extremely low friction coefficient, PTFE rollers have excellent self‑lubricating properties. In many scenarios, they can run without oil lubrication, not only saving the trouble of frequent re‑oiling but also avoiding product contamination by lubricants, while significantly reducing wear on mechanical parts.

• Wear‑resistant, corrosion‑resistant, and long‑lasting – PTFE rollers can withstand various corrosive chemicals and maintain stable performance even in harsh environments such as high temperatures, giving them a service life far longer than that of ordinary rollers.

Ubiquitous Presence: Application Areas of PTFE Rollers

With these advantages, PTFE rollers can be found in a wide array of industries.

Electronics and New Energy

On lithium‑battery separator coating machines, PTFE rollers prevent slurry from drying and caking on the guide rollers. In semiconductor manufacturing, they are used as guide wheels and rollers for handling panels or wafers, where their low abrasion and low contamination properties are critical. For special requirements, anti‑static PTFE rollers are also available for applications in electronics and optoelectronics.

Printing and Packaging

On flexographic printing presses and laminating machines, PTFE rollers effectively prevent ink contamination, reducing the time spent on frequent roller cleaning. On adhesive tape and protective film production lines, they come into contact with the adhesive side without leaving any residue, ensuring product purity and continuous production.

Food and Pharmaceutical Industries

On food baking conveyor lines, PTFE rollers can directly contact dough, confectionery, and other foodstuffs, providing non‑stick performance that meets food‑contact standards. Their anti‑adhesion properties prevent material buildup, ensuring smooth automated conveying. Similarly, in the pharmaceutical industry, they are used in conveying sections that require high cleanliness and non‑stick performance.

Textile and Papermaking

In textile printing and dyeing equipment, PTFE rollers are used for fabric anti‑wrinkle and conveying applications, ensuring that materials remain flat and uncrumpled even under high‑temperature slurry dyeing conditions. In the papermaking industry, they also play a key role in various rollers, providing non‑stick and wear‑resistant performance.

Other Important Fields

• Transportation –Applying PTFE materials to guide rollers and tension rollers in motorcycle synchronous transmission belts can greatly reduce noise and improve wear resistance.

• Elevator equipment –In modern elevator roller guides, adding a PTFE layer takes advantage of its low friction and wear resistance to effectively reduce vibration and noise during elevator operation.

• Chemical and metallurgical industries –In highly corrosive environments such as petroleum, chemical, and metallurgical machinery, PTFE rollers are almost an irreplaceable choice.

Not Perfect: Challenges and the Future of PTFE Rollers

Of course, PTFE is not without its flaws. It has inherent drawbacks, such as relatively low mechanical strength, susceptibility to creep (deformation under long‑term load), and limited wear resistance, especially at high speeds where its wear resistance noticeably declines.

However, materials scientists have been working hard on solutions. Currently, filler modification is the mainstream approach –for example, adding glass fibres, graphite, or other fillers, or developing PTFE composite materials – to compensate for these weaknesses and further broaden its application horizon.

Conclusion

From a seemingly simple industrial roller to safeguarding the production of everyday consumer goods, PTFE material plays an indispensable role behind the scenes with its ultimate "non‑stick" and "smooth" properties. The next time you see a factory production line running efficiently or hold a clean, unblemished printed product, you might spare a thought for the humble PTFE roller that contributed to its making.
