PVDF Pipes: The "High-Strength Guardian" in Industrial Piping – How to Build a Reliable Defense Line in Harsh Environments?

Flushing strong corrosive electrolytes on lithium battery foil production lines, conveying hot water up to 90°C in ultrapure water systems, or enduring day-to-day challenges in corrosive exhaust gas ducts at semiconductor plants—in these fields that place triple stringent demands on material strength, purity, and corrosion resistance, PVDF piping systems have become the preferred, unshakable solution due to their excellent comprehensive performance. It is not as "soft and versatile" as PTFE, nor as "economical and conventional" as PP. Instead, with its outstanding mechanical strength, high purity, and broad chemical resistance, it plays the role of an indestructible "High-Strength Guardian" in piping systems. So, where exactly does the strength of PVDF pipes lie? And how should we select the appropriate size and specifications for them based on complex operating conditions?

I. PVDF: The "Resolute Pillar" in the Fluoropolymer Family

PVDF, the full name being Polyvinylidene Fluoride, is a partially fluorinated fluoropolymer. Compared to fully fluorinated PTFE/PFA, the hydrogen atoms retained in its molecular structure create a unique balance of properties, making it stand out in the fluoropolymer family:

• Exceptional Mechanical Strength and Creep Resistance: PVDF's tensile strength, compressive strength, and stiffness are far higher than those of similar materials like PTFE and PFA, closer to metals. It is less prone to cold flow deformation, can reliably support itself, and is suitable for long-distance overhead installation.

• Excellent Chemical Resistance and High Purity: It offers outstanding resistance to halogens, strong acids, strong alkalis, oxidizers, and organic solvents. At the same time, its leachables are extremely low, meeting the strict standards of high-purity industries such as semiconductors, pharmaceuticals, and food.

• Broad Temperature Range: The conventional service temperature range is -40°C to +140°C, with short-term tolerance up to 150°C. It can handle high-temperature process fluids while maintaining good toughness at low temperatures.

• Superior Radiation and Aging Resistance: Strong resistance to ultraviolet light and gamma rays, stable performance for long-term outdoor use, and not prone to aging.

• Good Flame Retardancy: Inherently flame retardant, self-extinguishing, with low smoke emission.

• Convenient Thermal Fusion Weldability: Allows for strong, seamless, leak-free permanent connections via butt fusion or socket welding, resulting in extremely high system integrity.

Based on these characteristics, PVDF piping systems have become core infrastructure in fields such as lithium battery manufacturing, semiconductor wet processes, high-purity chemical transfer, pharmaceutical process piping, food and beverage, environmental waste gas treatment, and high-end laboratories.

II. Common Forms and Connection Methods for PVDF Pipes

According to application needs, PVDF pipes mainly come in the following forms:

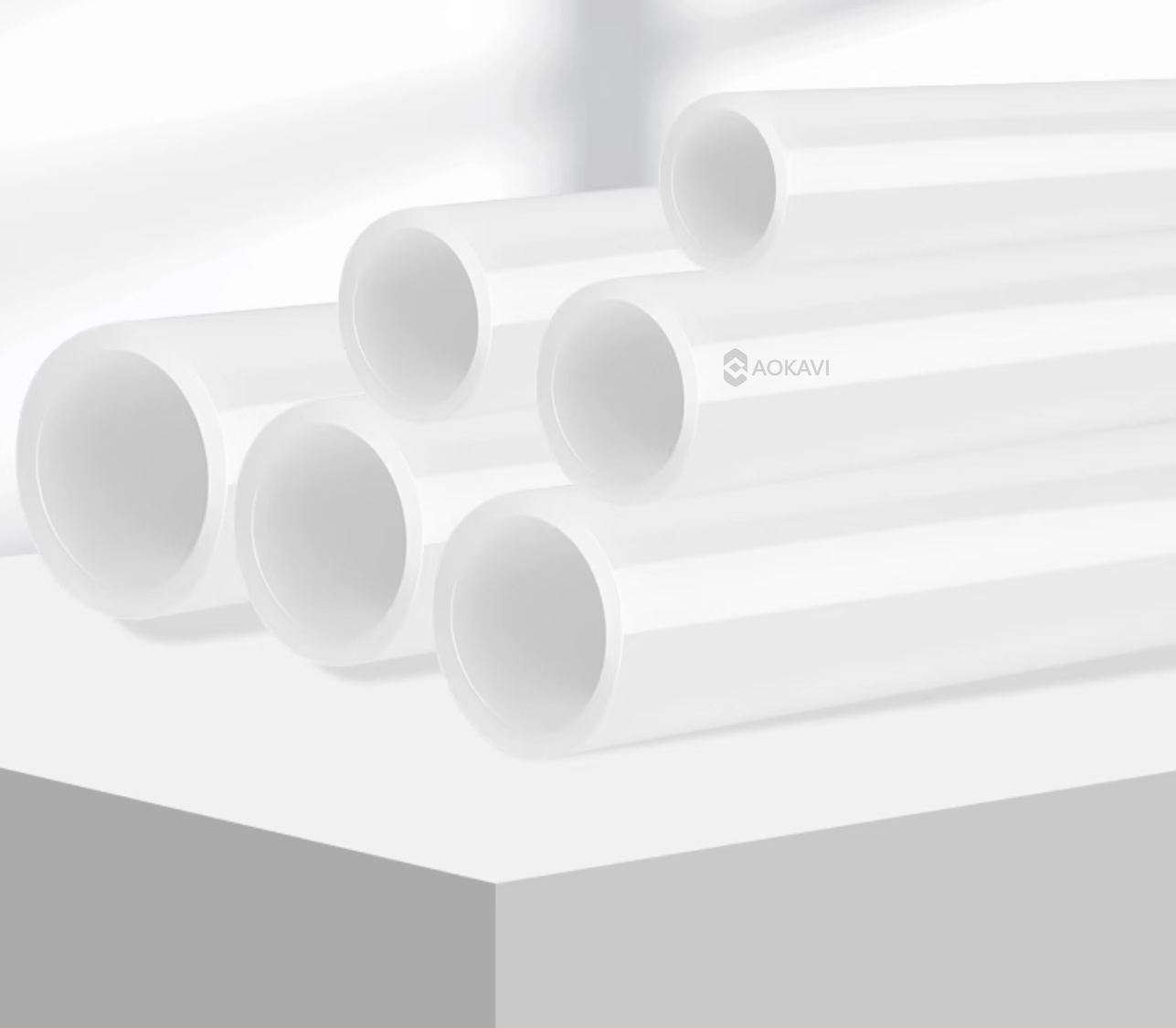

1. Solid-Wall Pure PVDF Pipes: The most universal form, used for most pressurized fluid transfer and exhaust lines. Divided into different pressure ratings based on wall thickness.

2. PVDF Piping Systems (Including Fittings): Provide complete system solutions, including elbows, tees, valves, flanges, reducers, etc., all made of PVDF material, forming an integrated network through thermal fusion welding.

3. PVDF-Lined Steel Pipes: A layer of PVDF is lined inside a carbon steel pipe, combining the mechanical strength of steel with the corrosion resistance of PVDF, suitable for higher pressure applications or where external protection is needed.

III. Core Parameter Analysis: Conventional Sizes and Pressure Ratings for PVDF Pipes

The sizing system for PVDF pipes typically uses metric outer diameter (e.g., dn series) or imperial (e.g., inches) and combines Standard Dimension Ratio (SDR) or Schedule (SCH) wall thickness series to define their pressure-bearing capacity.

Reference Table for Conventional Size Ranges

Key Selection Tips:

• Relationship between SDR and SCH: SDR Value = Outer Diameter / Wall Thickness. A smaller SDR value indicates a thicker wall and higher pressure resistance. The SCH series follows a fixed wall thickness table; a cross-reference is needed. For example, for a 2-inch pipe, the wall thickness of SCH 80 is much greater than that of SCH 40.

• Temperature-Pressure Derating: The pressure-bearing capacity of PVDF decreases significantly as temperature rises. For instance, at 60°C, its long-term strength might be only 50% of that at 20°C. Selection must include pressure derating calculations based on the maximum operating temperature.

• Certification Requirements: In the semiconductor industry, compliance with SEMI F57 standard is needed; in food and pharmaceutical fields, certifications such as FDA, USP Class VI are required.

IV. Practical Selection Guide: Four Steps to Secure a Safe and Reliable PVDF Piping System

When facing complex operating conditions, following these steps enables a scientific selection:

1. Operating Condition Analysis: Clearly define the medium composition, concentration, temperature (max/min), continuous working pressure, and presence of solid particles. Note that PVDF has limited resistance to some strong polar solvents (e.g., ketones, esters), which requires special verification.

2. Determine Size and Wall Thickness:

   • Determine Pipe Diameter by Flow Rate: Calculate the required inner diameter based on the flow rate to preliminarily select the nominal diameter.

   • Determine Wall Thickness by Pressure & Temperature: Based on the maximum operating temperature and pressure, and with reference to the manufacturer's "Temperature-Pressure Derating Curve," determine the required SDR value or SCH rating.

3. Choose Connection Method: Thermal fusion welding is highly recommended to ensure a leak-free, dead-leg-free system. For points requiring disassembly, PVDF flange connections (paired with PFA/EPDM gaskets) can be used.

4. Verify Qualifications and Standards: Confirm that the product complies with relevant national/industry standards (e.g., GB/T, ISO, ASTM) and possesses the necessary compliance certifications for the target application field.

V. Conclusion

PVDF pipes, with their excellent balance among strength, purity, corrosion resistance, and weldability, play a fundamental and critical role in modern high-end industries. They are not merely pipes for conveying corrosive media but are core engineering materials that ensure production safety, improve product yield, and achieve long-term stable operation.

Understanding its position as a "High-Strength Guardian" and mastering the complete chain of knowledge—from medium compatibility analysis, to SDR/SCH selection under specific temperature and pressure, and finally to system welding integration—allows you to build the most reliable defense line for your harsh operating conditions. Choosing PVDF pipes means choosing a steadfast commitment to system integrity and production safety in the face of long-term extreme environments.
