PFA Hose: The "Flexible Jewel" on the Fluoropolymer Crown – How Does It Illuminate the Pathway for High-Purity Fluids?

In the silent flow of ultrapure water systems, within the precise chemical reactions of semiconductor etching tools, or in the contamination-free flow paths of high-end analytical instruments, a material that combines ultimate purity with excellent flexibility—PFA hose—is becoming an irreplaceable key component. It is hailed as the "Flexible Jewel" of the fluoropolymer family, offering unparalleled transparency and processability while inheriting outstanding chemical stability. So, why does PFA hose stand out in demanding applications? And how do we match it with the right size to illuminate the transmission pathway for high-purity fluids?

1. PFA: Why Is It Called "Melt-Processable PTFE"?

PFA, the full name being Perfluoroalkoxy Alkane, is a crucial member of the polytetrafluoroethylene (PTFE) family. You can think of it as introducing partially "flexibly rotating joints" (alkoxy side chains) into the perfectly chemically inert "skeleton" of PTFE. This ingenious molecular design brings two revolutionary improvements with almost no sacrifice to PTFE's exceptional properties:

• Excellent Thermoplastic Processability: PFA can be continuously produced into hose via melt extrusion, just like ordinary plastics. This enables the manufacture of longer continuous lengths, more complex structures (e.g., multi-lumen tubes), and easy fusion welding with various fittings, achieving seamless, smooth connections.

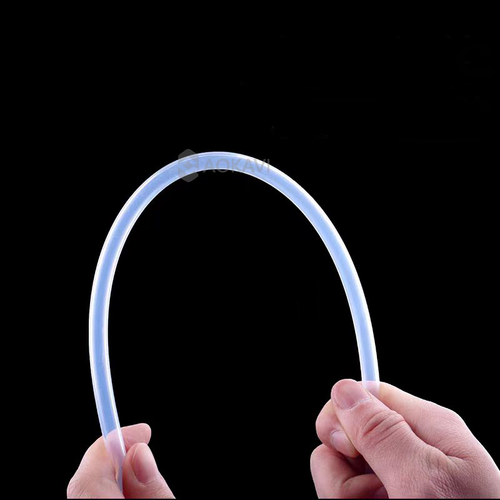

• Outstanding Transparency and Flexibility: PFA hose is typically highly transparent, allowing direct observation of fluid status and bubbles. It is also softer than PTFE with a smaller bending radius, making routing within equipment spaces much more flexible and convenient.

Of course, it fully retains all the ace properties of the PTFE family:

• Top-Tier Chemical Inertness: Resistant to almost all strong acids, bases, organic solvents, and oxidizers, nearly identical to PTFE.

• Broad Temperature Window: Continuous service temperature range from -200°C to +260°C, with short-term tolerance for even higher temperatures.

• Extremely High Surface Purity: Extremely low leachables and extractables, does not contaminate fluids, making it the cornerstone for semiconductor, pharmaceutical, and biotechnology high-purity applications.

• Non-Stick, Low Friction: The inner wall is smooth as a mirror, preventing material adhesion, and is easy to clean and sterilize.

2. Common Structural Forms of PFA Hoses

Based on application needs, PFA hoses mainly come in the following forms:

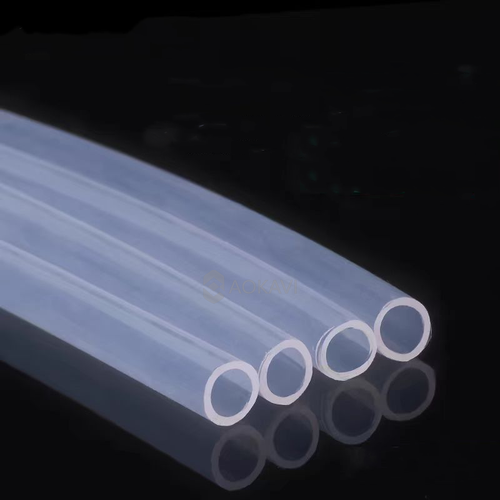

1. Pure PFA Hose: Made from 100% PFA material via extrusion. This is the most common form, featuring high transparency and good flexibility, widely used for transferring high-purity chemicals, analytical instrument flow paths, and sample lines.

2. Reinforced PFA Lined Hose: To meet higher pressure requirements, the inner PFA tube is reinforced on the outside by braiding or winding stainless steel wire, polyester fiber, or aramid fiber. This structure significantly enhances the pressure resistance and tensile strength of the hose body while maintaining the chemical purity of the inner wall.

3. Conductive/Anti-Static PFA Hose: Made by adding conductive carbon powder or similar materials to the raw compound, used to safely dissipate static electricity when transferring flammable and explosive solvents, preventing hazardous buildup.

3. Clarifying Specifications: Conventional Size Range for PFA Hoses

Selecting the correct size PFA hose for your system is key to ensuring flow rate, pressure, and safety. Its core dimensional parameters are shown in the table below:

Key Notes:

• Certifications are Crucial: For semiconductor or pharmaceutical industries, ensure the hose complies with specific industry standards such as SEMI F57 (semiconductor), USP Class VI (pharmaceutical), FDA (food contact), or 3A (dairy).

• Integrated Fittings: The most reliable connection method for PFA hose is using PFA core tube injection-molded fittings, which can achieve threadless, dead-leg-free sterile connections, significantly reducing leakage and contamination risks.

4. Selection Guide: Four Steps to Lock in the Most Suitable PFA Hose

When facing choices, following these four steps leads to precise decision-making:

1. Identify Medium and Compatibility: Although PFA resists almost everything, still confirm whether the specific chemical's concentration and temperature combination falls within the safe range.

2. Define Operating Parameters: Determine the system's maximum/minimum operating temperature, maximum working pressure, and whether vacuum is involved. When selecting a pressure rating, it's recommended to have a safety factor of 1.5x or more.

3. Calculate Flow Rate and Determine Size: Calculate the minimum inner diameter based on the required flow rate. Also consider equipment port sizes to determine the hose's inner and outer diameters, ensuring correct assembly with fittings.

4. Verify Standards and Certifications: Based on end-industry requirements, select products holding the corresponding authoritative certifications. This is a mandatory threshold for ensuring system compliance and final product quality.

5. Conclusion

PFA hose, with its unique transparency, flexibility, and impeccable chemical purity, plays the role of an "invisible champion" in modern high-end manufacturing and scientific research. It is not just a conduit for fluids but a core component guaranteeing product yield, experimental accuracy, and production safety.

Understanding its essence as "melt-processable Teflon" and mastering the selection logic from inner diameter and wall thickness to industry certifications allows this "Flexible Jewel" to deliver maximum value in your system, ensuring every drop of high-purity fluid arrives precisely via a safe and clean pathway.
