PTFE Gaskets: The Unsung Heroes of Modern Industry

Inside many machines and devices around us, a seemingly simple yet critical component works silently to prevent leaks of liquids and gases, ensuring the safety and purity of industrial processes. This component is the PTFE gasket. This article provides an introduction to gaskets made from this remarkable material.

What is PTFE?

First, let's understand PTFE. Its full name is Polytetrafluoroethylene. You might know it better by another name—Teflon®—a coating commonly found on non-stick cookware. PTFE is a fully synthetic, high-performance plastic renowned for its extremely stable chemical properties.

Key Properties of PTFE Gaskets

Gaskets made from PTFE inherit numerous advantages of the material, making them stand out among many sealing solutions.

1. Exceptional Chemical Inertness: This is PTFE's most prominent advantage. It is almost entirely unreactive with any known chemical, be it strong acids, strong bases, or various organic solvents. This makes PTFE gaskets the preferred choice in industries handling corrosive substances, such as chemical processing, pharmaceuticals, and electroplating.

2. Broad Temperature Tolerance: PTFE maintains its properties across very low and very high temperatures. Its continuous service temperature range is approximately from -200°C to +260°C. This means PTFE gaskets perform equally well in the extreme cold of freezing equipment and the heat of high-temperature steam lines.

3. Very Low Coefficient of Friction: PTFE has one of the lowest coefficients of friction of any solid. Its surface is very smooth and non-stick. This property prevents the gasket from bonding to flange surfaces, facilitating easier maintenance and replacement later. It also makes these gaskets suitable for the food and pharmaceutical industries, where materials won't stick to them, allowing for easy cleaning and meeting hygiene standards.

4. Good Flexibility and Compressibility: PTFE material is somewhat soft and can be easily compressed to fill minor imperfections on flange surfaces, creating a tight seal.

Applications of PTFE Gaskets

Due to their unique combination of properties, PTFE gaskets are widely used in:

• Chemical Processing Industry: Sealing reactors, pipes, valves, and pumps.

• Pharmaceutical and Food Industries: Production lines requiring high cleanliness and no contamination.

• Semiconductor Manufacturing: Environments demanding ultra-high purity and resistance to harsh chemicals.

• Automotive and Aerospace: Sealing various fluid systems.

Important Considerations

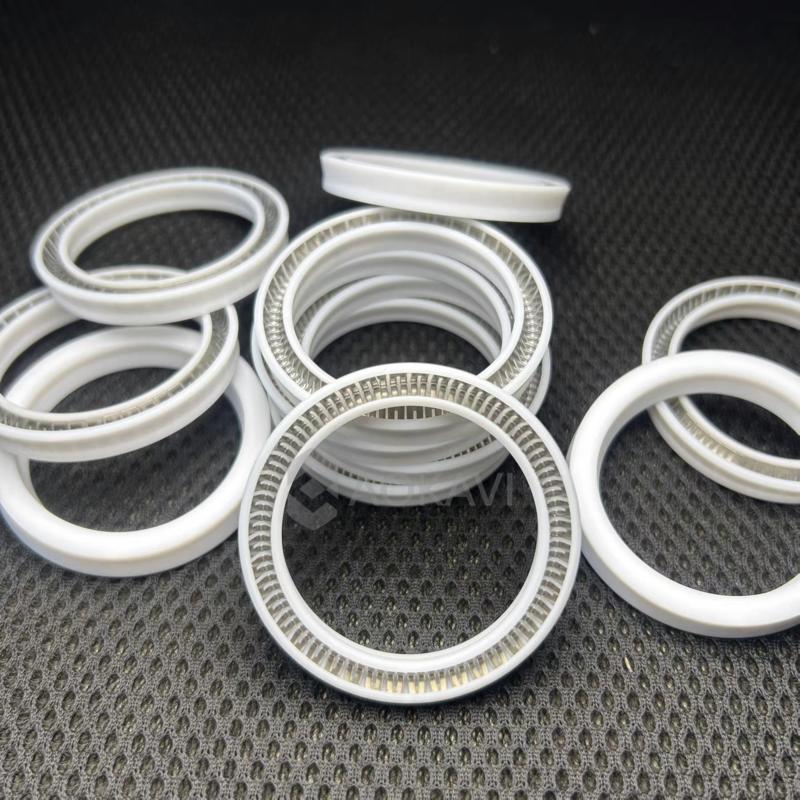

No material is perfect, and PTFE is no exception. A key consideration is its tendency to 'cold flow' or creep under sustained high pressure. This means under high bolt load, the gasket may slowly deform over time, potentially leading to a loss of sealing pressure. To address this, engineers have developed PTFE gaskets reinforced with internal metal or other materials, significantly improving their resistance to pressure and creep.

Conclusion

The PTFE gasket is a versatile, high-performance sealing solution. Like a loyal guardian, it uses its superior chemical resistance, temperature tolerance, and non-stick properties to silently protect the integrity and safety of countless industrial processes. While its behavior under high pressure must be considered, modern engineering solutions make it a reliable choice for tackling even the most demanding sealing challenges.
