Polytetrafluoroethylene (PTFE) Carriers: The Unsung Hero in Semiconductor Manufacturing

In the highly precise and complex process of semiconductor manufacturing, every detail matters. Among these, polytetrafluoroethylene (PTFE) wafer carriers play a critical role as handling tools. While not directly involved in chip production, they are indispensable for ensuring high production yield and equipment safety.

What is a PTFE Wafer Carrier?

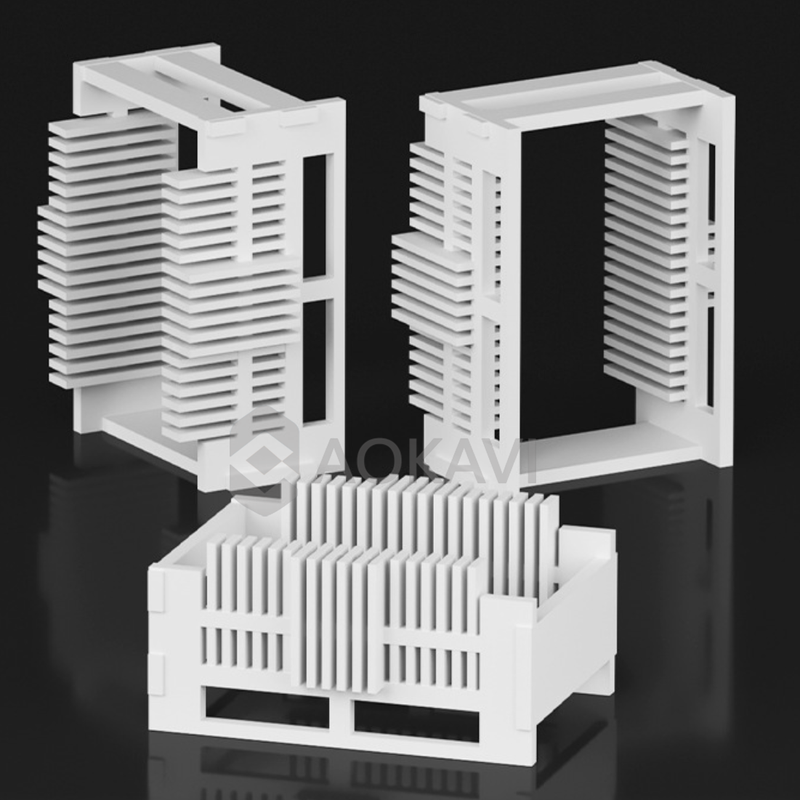

A PTFE wafer carrier is a support device used to hold, transport, and store silicon wafers. It is made primarily from polytetrafluoroethylene (PTFE), a specialty plastic known for its exceptional chemical stability, high purity, and resistance to extreme temperatures. The carrier is designed with multiple precision slots to securely hold wafers without causing surface damage.

Why is PTFE Essential in the Semiconductor Industry?

1. Exceptional Chemical Inertness
   Semiconductor manufacturing involves strong acids, alkalis, and organic solvents (e.g., hydrofluoric acid, sulfuric acid, acetone). PTFE is resistant to almost all chemicals, making it ideal for long-term use in corrosive environments without risking wafer contamination.

2. High Purity and Low Contamination
   PTFE does not release particles or ions, meeting the stringent cleanliness standards of semiconductor cleanrooms (e.g., ISO Class 1-5). This prevents micro-contamination on wafer surfaces.

3. Excellent Temperature Resistance
   PTFE can operate stably within a temperature range of -200°C to +260°C, making it suitable for high-temperature processes such as oxidation and annealing. It does not deform due to thermal expansion or contraction, ensuring precise wafer positioning.

4. Anti-Static Properties
   PTFE is naturally insulating. Through modified treatments, it can be made anti-static to prevent electrostatic discharge from damaging delicate circuits.

Practical Applications

• Wet Cleaning and Etching: Holds wafers during immersion processes, resisting corrosive chemicals.

• High-Temperature Furnaces: Serves as a boat to transport wafers into diffusion furnaces, withstanding prolonged high temperatures.

• Automated Handling: Works with robotic arms to enable precise transfer of wafers between equipment.

Future Trends

As chip processes advance to 3nm and beyond, performance requirements for wafer carriers are increasing. Future enhancements to PTFE materials include:

• Surface modifications to reduce micro-particle adhesion.

• Composite materials to improve mechanical strength.

• Smart designs with integrated RFID tags for full traceability.

Conclusion

Though a seemingly minor component in the semiconductor supply chain, PTFE wafer carriers are foundational to ensuring high yields in advanced chip manufacturing. They exemplify the industry’s relentless pursuit of material science excellence—where innovation thrives in the smallest details, guarding the path of technological progress.
