A Million Times Purer Than Bottled Water: How PFA Ultra-Pure Piping Systems Protect Every Drop of “Industrial Blood”

If you think bottled purified water is already “clean” enough, consider this: in some high-tech factories, the liquids flowing through pipes may need to be millions of times purer. A single invisible metal ion, dead bacterium, or even an organic molecule can ruin an entire silicon wafer or render a batch of anticancer drugs useless.

These liquids, which demand near-impossible levels of cleanliness, are called ultra-pure water or high-purity chemicals. The systems responsible for transporting them are built from PFA valves, fittings, and filters—a quiet network of “blood vessels” that keeps modern industry alive. Let’s take a closer look at how this unassuming piping system works.

Why Must Ultra-Pure Piping Be Made of PFA?

PFA stands for perfluoroalkoxy alkane, a high-performance fluoropolymer. You can think of it as an upgraded cousin of Teflon.

Ordinary metal pipes, such as stainless steel, are strong but can slowly release trace amounts of iron, chromium, and nickel ions when exposed to acids, bases, or ultra-pure water over time. These ions are harmless in everyday water, but in semiconductor cleaning processes, they are enough to cause defects on a wafer surface. Standard plastics, on the other hand, often have poor temperature resistance and tend to leach additives—also unsuitable.

PFA happens to combine several critical advantages:

• Virtually no leaching: PFA’s molecular structure is extremely stable, so it does not release metal ions or organic compounds into the fluid.

• Outstanding chemical resistance: It withstands nearly all chemicals except molten alkali metals and a few specialized fluorides.

• Very smooth surface: The inner wall has low friction, making it difficult for particles and microorganisms to adhere or linger.

• Wide temperature range: It can be used continuously from -200°C to 260°C, handling both cold liquids and hot streams.

That is why PFA has become the material of choice for ultra-pure fluid transport in the semiconductor, biopharmaceutical, and photovoltaic industries.

The “Three Musketeers” of an Ultra-Pure Piping System

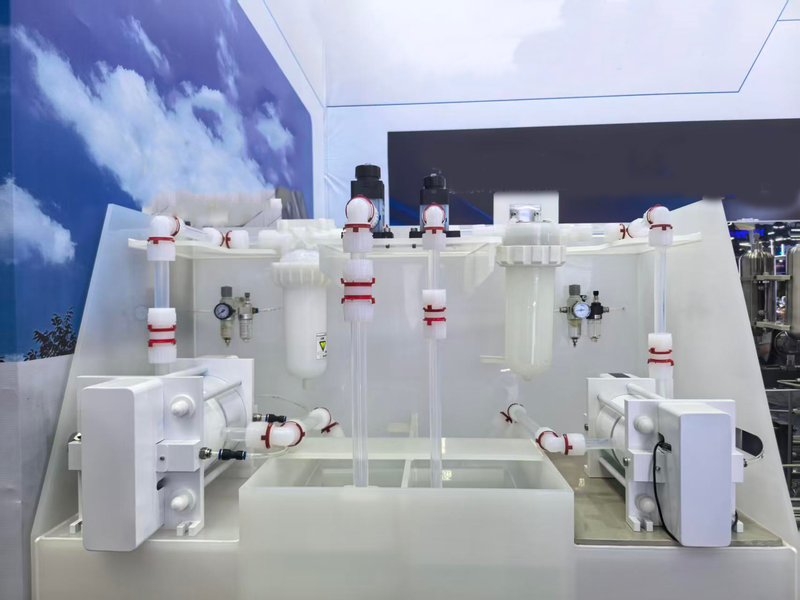

A complete ultra-pure piping system is far more than just a few pieces of tubing. Among its many parts, valves, fittings, and filters are the three core components that determine overall cleanliness and reliability.

1. PFA Valves: Precise Control with Zero Dead Legs

Valves control the on/off flow, flow rate, and direction of the fluid. In an ultra-pure system, PFA valves must not only be made from high-purity materials but also achieve a “zero dead leg” design.

What is a dead leg? It is any tiny space inside a valve where fluid moves very slowly or becomes stagnant. When liquid remains trapped in these areas, bacteria can grow or particles can accumulate, turning the spot into a contamination source. For this reason, high-purity PFA valves commonly use diaphragm or bellows designs with smooth flow paths that are fully open when in use and completely drainable when closed.

2. PFA Fittings: Where Leaks and Traps Are the Enemy

A piping system always needs elbows, tees, reducers, and connectors. Traditional metal fittings rely on threads or compression sleeves, which can leave tiny gaps. PFA fittings, in contrast, typically use heat fusion welding or specialized flare connections, making the fitting’s inner wall nearly seamless with the pipe itself.

As a result, there are no leaks and no steps or grooves at the joints—fluid can flow through smoothly. Especially at equipment connections that require frequent disassembly, high-quality PFA fittings can withstand many connect/disconnect cycles without generating particles.

3. PFA Filters: The Final Purification Barrier

Even if the water or chemical at the source is already extremely pure, a very small number of particles may still be generated during transport by pumps, valve movements, or gradual pipe aging. Filters act as the system’s gatekeepers.

Ultra-pure piping commonly uses capsule filters or cartridge filters made of PFA, with internal membranes often made of PTFE (polytetrafluoroethylene) or PES (polyethersulfone). These can trap particles as small as 0.05 microns or even smaller—for reference, a human hair is about 70 microns in diameter.

Filters are usually installed just before the inlet of critical equipment to ensure that the fluid reaching the tool meets its final cleanliness requirements.

Typical Applications of Ultra-Pure Piping Systems

Semiconductor and Chip Manufacturing

This is the field with the most extreme demands on ultra-pure piping. Wet cleaning, etching, and developing steps in chip manufacturing require massive amounts of ultra-pure water and electronic-grade chemicals. For example, when cleaning a 12-inch wafer, even a few parts per billion of metal ions in the water can reduce yield.

Here, PFA piping systems transport ultra-pure water from treatment equipment to cleaning stations, while also carrying highly corrosive chemicals such as hydrofluoric acid, hydrogen peroxide, and ammonia. The zero-dead-leg design of valves and fittings minimizes particle generation and chemical residue.

Biopharmaceuticals and Vaccine Production

In bioreactors, chromatography purification, and solution preparation systems, fluids may be cell culture media, buffers, or protein solutions. These liquids must never come into contact with materials that could release endotoxins or metal ions. PFA piping combined with sterile filters ensures both fluid purity and tolerance for the high temperatures of in-line steam sterilization.

Laboratories and High-End Analytical Instruments

Instruments such as high-performance liquid chromatography (HPLC), mass spectrometry, and trace element analysis demand extremely clean mobile phases and samples. PFA fittings and tubing prevent contamination from being introduced inside the instrument, ensuring accurate results.

Photovoltaics and New Energy

Solar cell manufacturing also requires large volumes of ultra-pure water and corrosive chemicals for texturing, etching, and cleaning. PFA piping systems help lower production costs and improve cell conversion efficiency.

How Do We Make “Ultra-Pure” More Than a Slogan?

To make a PFA piping system truly meet ultra-pure standards, material selection alone is not enough. Several practices are essential:

• Construction in a cleanroom: Cutting, welding, and assembling of tubing must be done in a cleanroom or clean booth to keep dust out of the pipes.

• Heat fusion welding instead of adhesive bonding: PFA pipe connections are typically made by specialized infrared or hot-air welding. The weld is smooth and introduces no organic contaminants such as glue.

• Strict flushing and validation: After installation, the system must be flushed with ultra-pure water or chemical agents for an extended period, and the outlet must be tested for particle counts, TOC (total organic carbon), metal ions, and other indicators until specifications are met.

• Regular filter replacement: Filters are consumables. They need to be replaced based on pressure differential and flow changes to prevent membrane damage or clogging.

Conclusion

The ultra-pure piping system made of PFA valves, fittings, and filters may be invisible in daily life, but it is the unsung “vascular network” behind chips, medicines, and high-end instruments. With extreme material purity and precision engineering, it protects every drop of “industrial blood” that is often more valuable than gold.

Next time you use a smartphone or a computer, or receive a vaccine, spare a thought for the hidden PFA piping somewhere in the production chain—quietly carrying out the world’s cleanest delivery mission.
