The Invisible "White Shield": Exploring the Application of Custom PTFE Battery End Caps and Locking Nuts in High-Pressure Chemical Environments

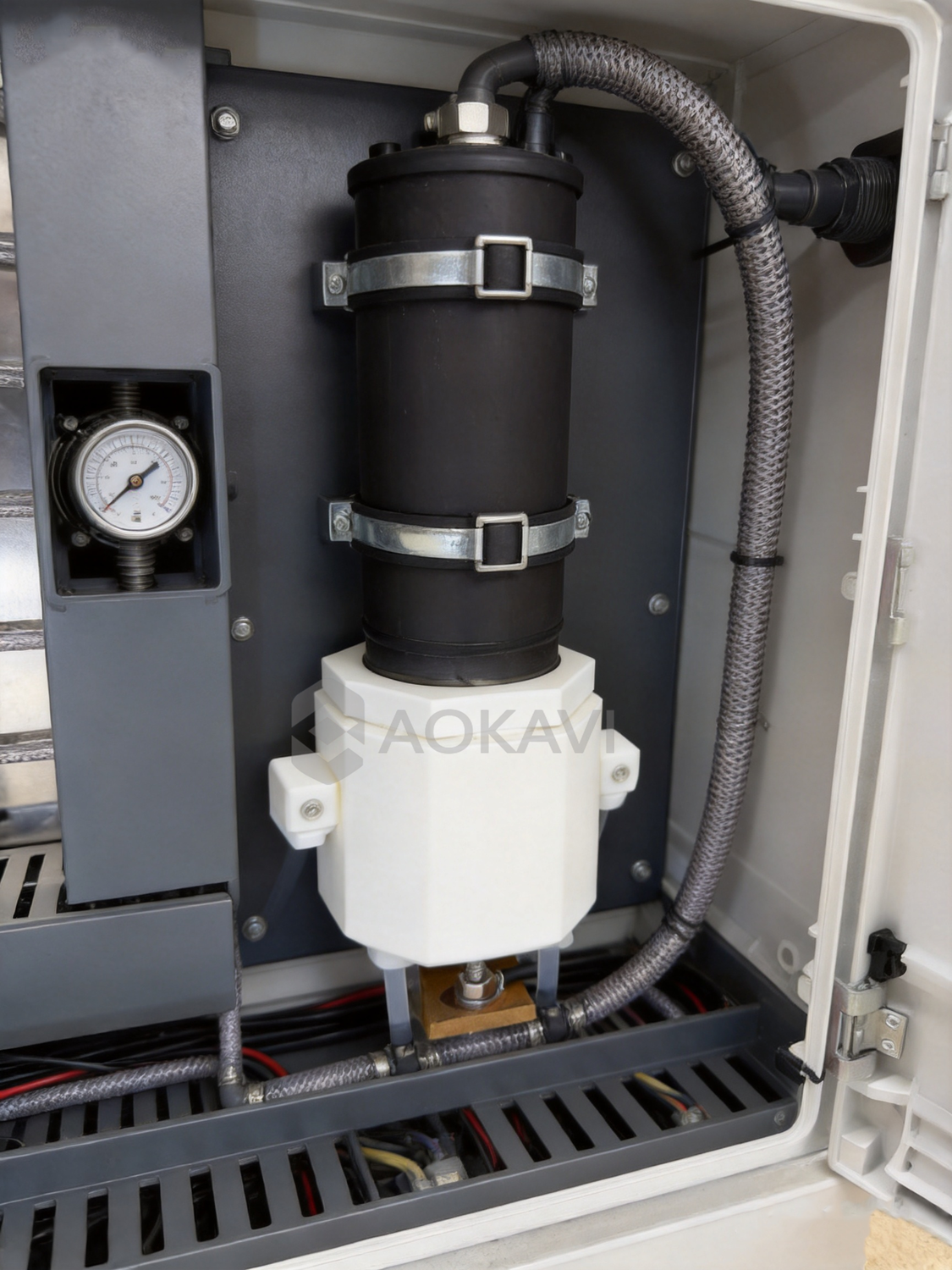

If you open the cabinet of a highperformance energy storage device (as shown in the image), the first thing that catches your eye is often the cold, industrial metal casing, the black pressure vessel, the thick braided hoses, and the mechanical pressure gauge on the left. However, beneath these rugged industrial elements lies an inconspicuous white component—the custom PTFE (Polytetrafluoroethylene) battery end cap and locking nut at the bottom of the unit.

Don't underestimate this white plastic part; in the harsh electrochemical environment of batteries, it acts as the "invisible shield" ensuring the safe and stable operation of the entire system. Let's explore why this custom component is so crucial.

1. Why PTFE? The "King of Plastics" and Its Hardcore Capabilities

The interior of a battery (especially flow batteries or high-pressure electrolyzers) is often filled with strong acids, alkalis, and electrolytes, accompanied by high temperatures and pressures. Ordinary metal parts are highly susceptible to corrosion and rust, contaminating the electrolyte; ordinary rubber parts tend to age and swell, leading to seal failure. PTFE, however, possesses four "trump cards":

1. Superior Corrosion Resistance: It is virtually insoluble in almost all strong acids, strong alkalis, and organic solvents, and even "Aqua Regia" cannot harm it. It perfectly isolates the electrolyte, ensuring the internal purity of the battery.

2. Excellent Electrical Insulation: As a battery end cap, it provides excellent electrical isolation, preventing leakage and short circuits.

3. Wide Temperature Range: It remains stable from -200°C to +260°C, perfectly adapting to the severe temperature differences generated during battery charging and discharging.

4. Ultra-Low Coefficient of Friction: This is the most crucial feature for the "locking nut." The low friction allows the nut to tighten smoothly and prevents it from rusting or "seizing" (galling) over time, while also providing excellent inherent self-lubrication for sealing.

2. Why "Custom" Instead of Standard Parts?

The end cap in the image is not a simple flat disc; it features a complex flange structure, multiple bolt holes, and dedicated interfaces at the bottom designed to connect with hose fittings. This custom design is essential:

• Perfect Fit: Due to the confined space inside the cabinet and the varying structures of battery modules, standard off-the-shelf parts cannot fit perfectly. Through custom manufacturing (typically using compression molding or precision CNC machining), the end cap can precisely interlock with the black cylinder (such as an electrolyte tank or battery stack), forming a highly sealed high-pressure chamber.

• Stress Distribution: The custom shape effectively disperses the mechanical pressure generated during tightening, protecting the fragile internal O-rings and extending the overall service life.

3. The "Ultimate Mission" of the Locking Nut: Leak Prevention

While PTFE has outstanding properties, it is relatively soft and exhibits a "cold flow" characteristic (it tends to deform slowly under long-term high pressure). Therefore, it must be used in conjunction with a locking nut. The primary function of the locking nut is to provide continuous clamping force, pressing the PTFE end cap tightly against the tank body, thereby compressing the internal O-ring seal to achieve perfect high-pressure sealing.

Furthermore, the threads of the custom locking nut are optimized to prevent loosening caused by high-frequency vibrations during machine operation, ensuring the battery remains completely leak-proof ("watertight") over years of operation.

Conclusion

From the image, the equipment appears sophisticated and heavily industrialized, and the white AOKAVI custom PTFE end cap and locking nut act as the "joint" of the entire high-pressure system. Through extreme chemical "inertness" and physical "toughness," it silently guards the safe operation of the battery. This also reflects a profound truth in modern industry: It is often these specialized materials hidden in the details that dictate the upper limit of high-end equipment performance.
