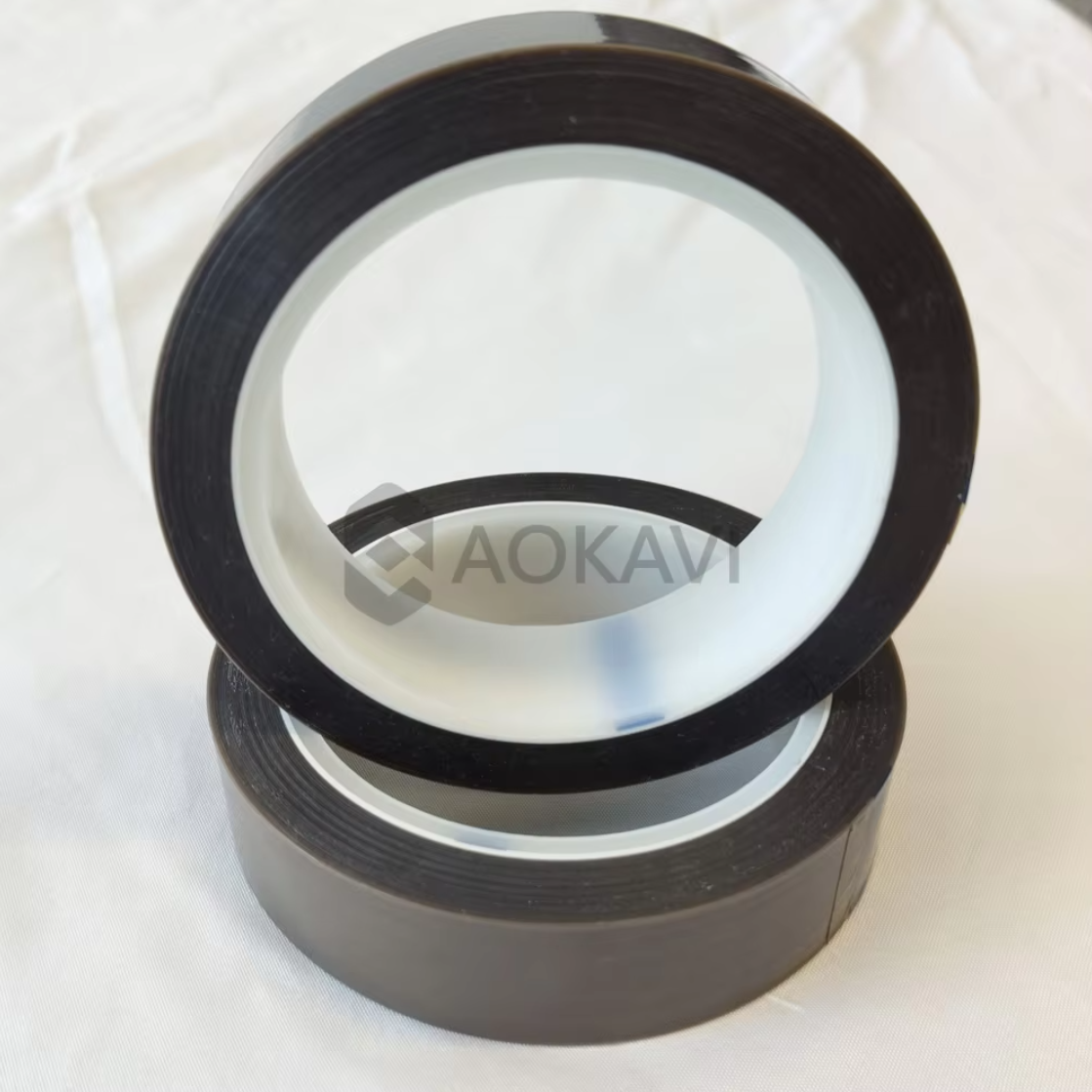

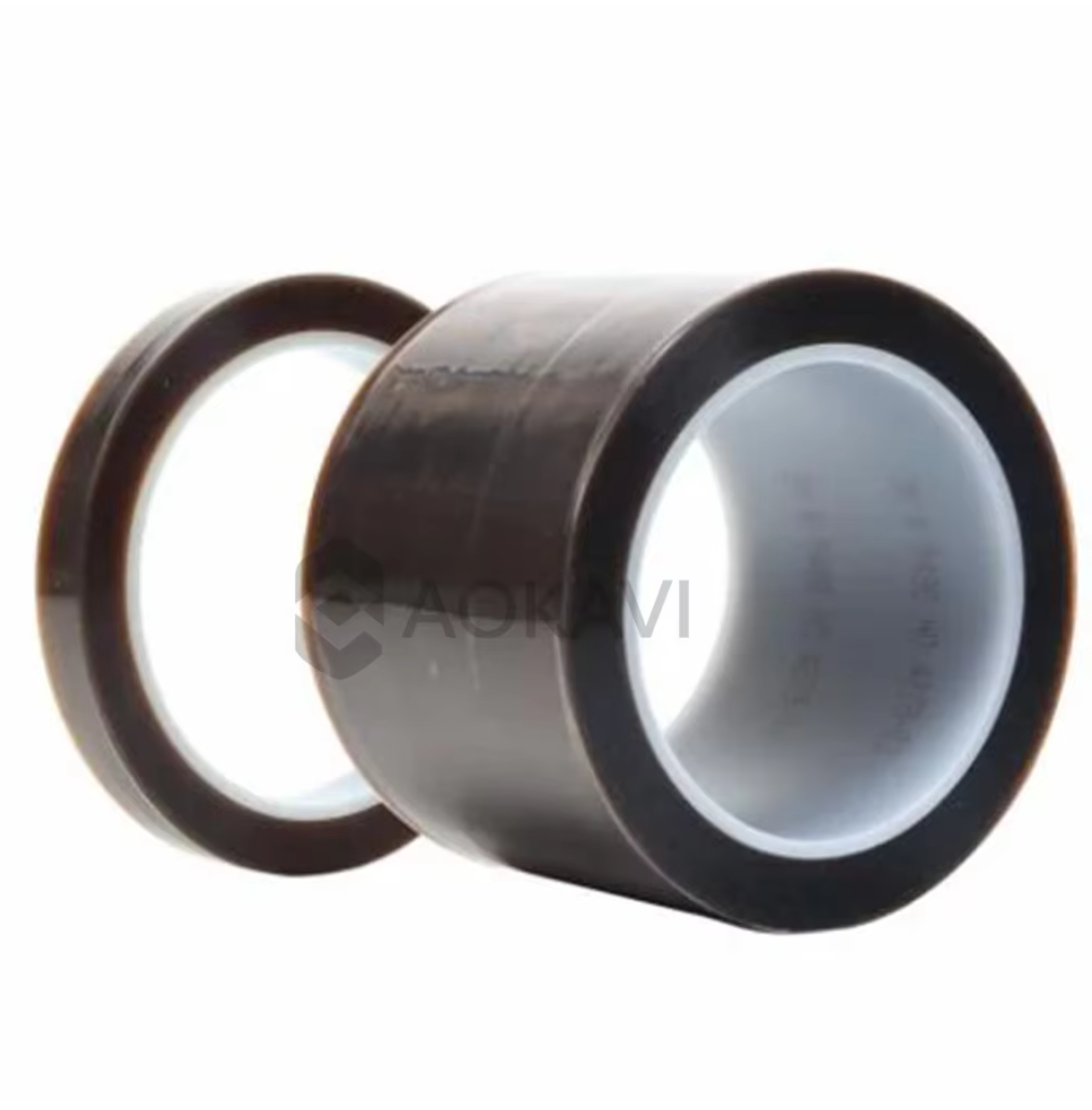

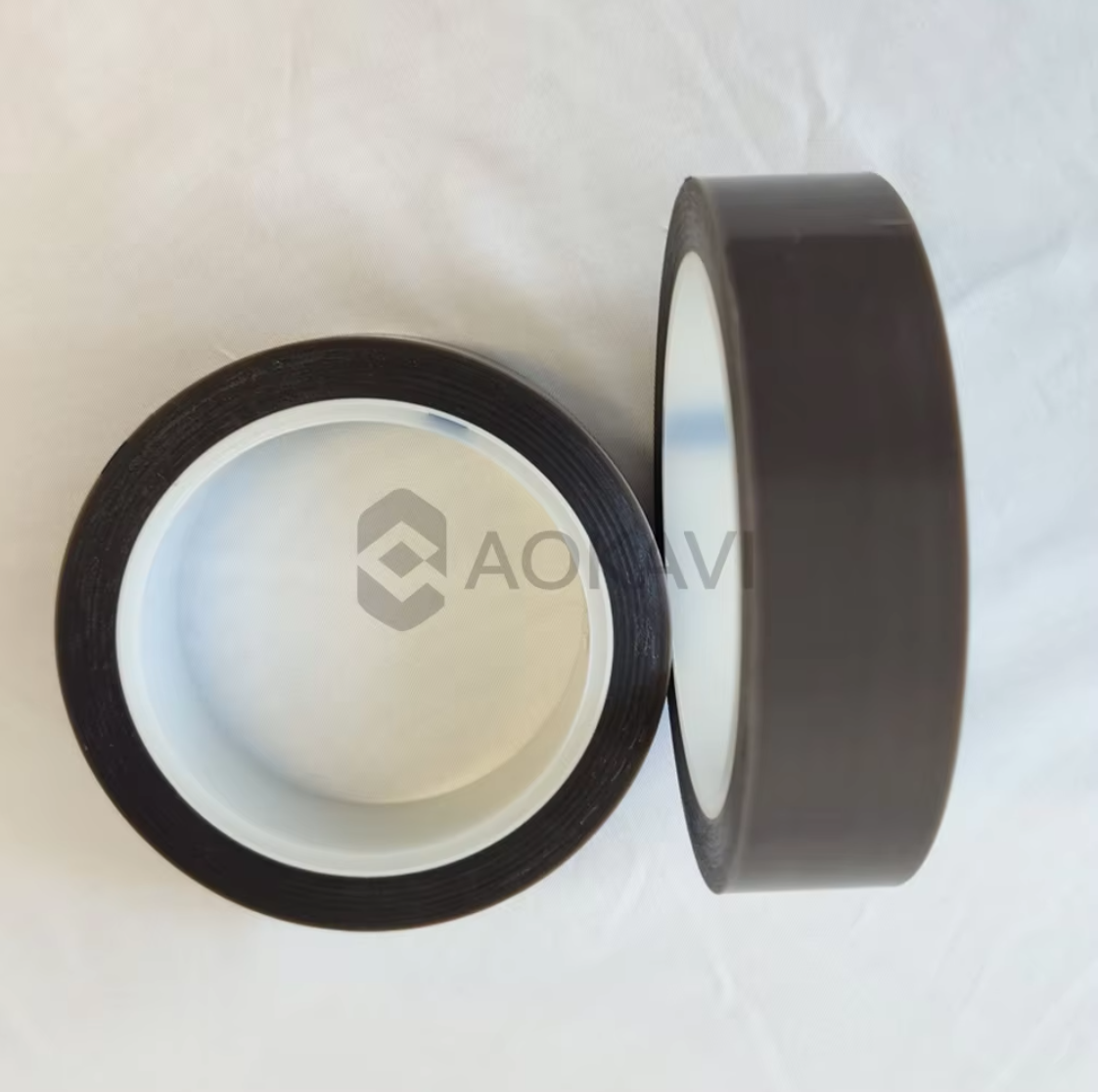

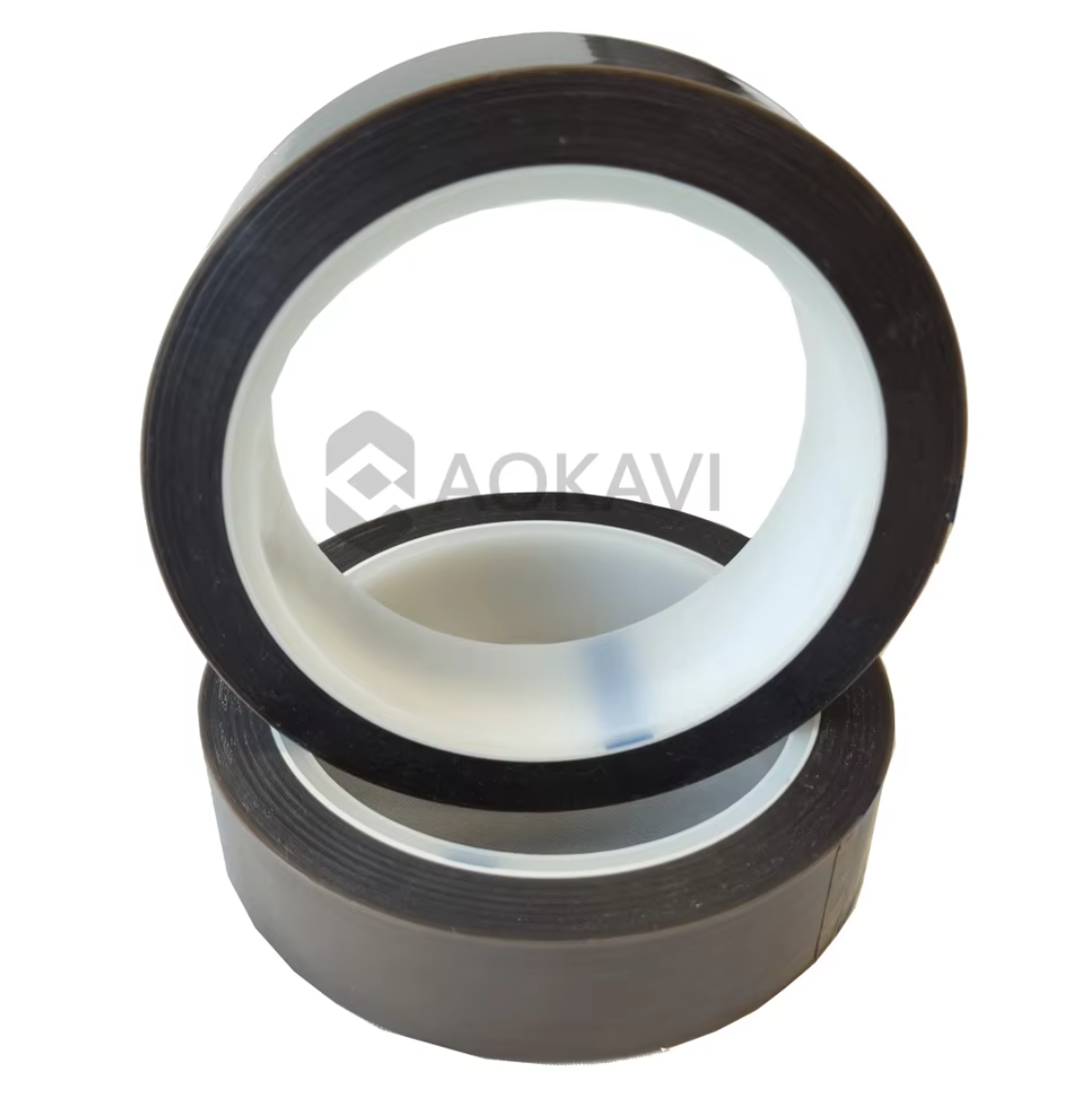

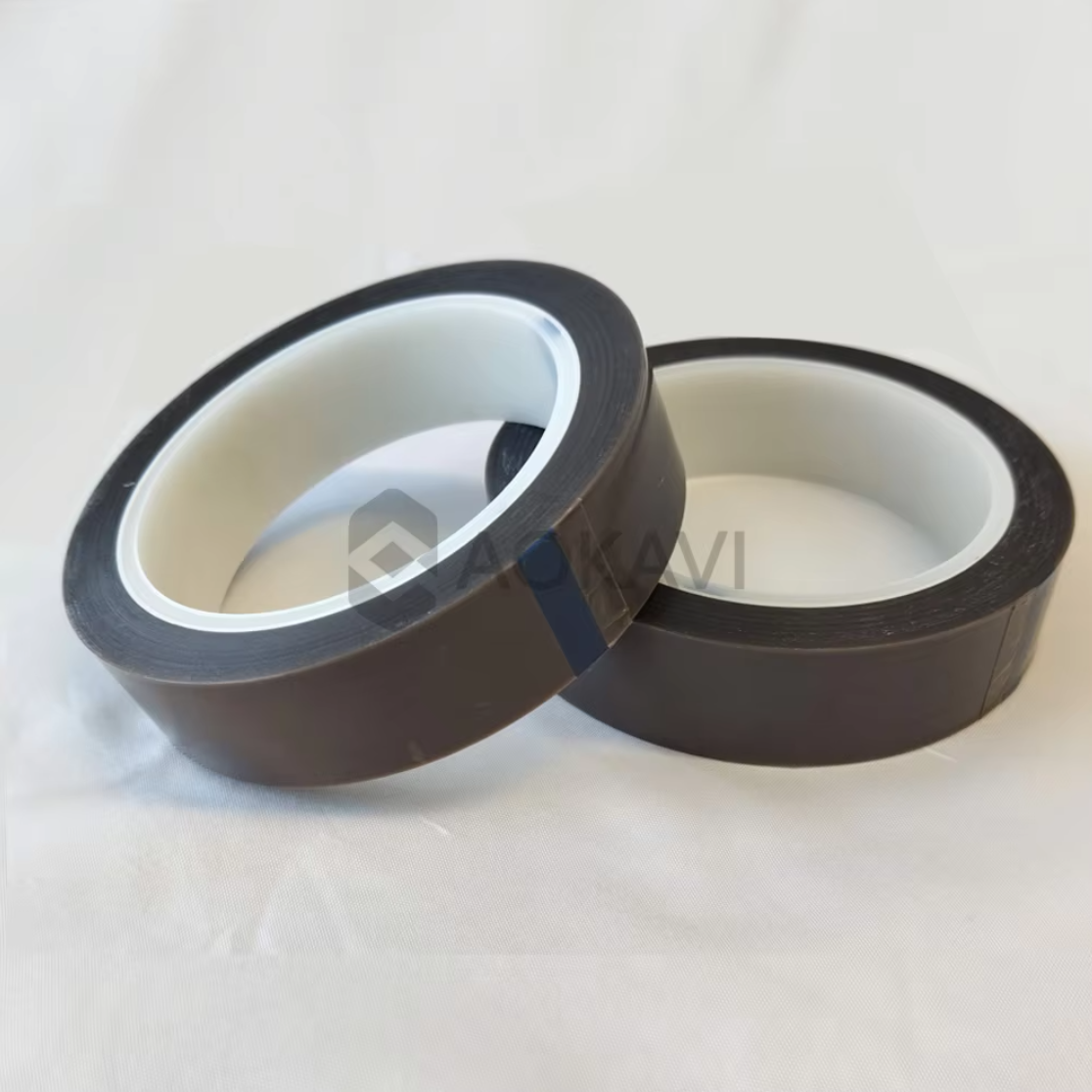

PTFE Multi-Purpose 3M Alternative Tape
——High-Performance Insulation & Corrosion Resistance Solution
Product Positioning
An industrial-grade PTFE (Polytetrafluoroethylene) multi-purpose tape designed as a comprehensive alternative to 3M-brand counterparts (e.g., 3M™ 60#, 61# tapes). It delivers high-temperature resistance, superior insulation, and chemical corrosion resistance at a more competitive cost, ideal for demanding applications in oilfields, electronics, and machinery.
Key Features
Exceptional Temperature Resistance:
Withstands continuous temperatures up to 180°C and short-term exposure to 260°C, maintaining stable physical and electrical properties in extreme environments.
PTFE or FEP (Fluorinated Ethylene Propylene) base material offers low surface friction (elongation <5%), excellent non-stick properties, and easy cleanup of oil/chemical residues.
Premium Electrical Insulation:
Breakdown voltage up to 12kV (at 180°C) and insulation resistance exceeding 1×10⁶ MΩ. UL 510 flame-retardant certified for reliable protection of high-voltage cables, motor coils, and critical components.
Chemical & Mechanical Durability:
Highly resistant to oil, water, acids, alkalis, and organic solvents. Tensile strength: 35N/10mm, elongation: 200%. Tear-resistant and abrasion-proof, extending equipment lifespan in corrosive environments (e.g., petrochemical, mining).
Typical Applications
Oil & Energy: Insulation wrapping and sealing for submersible motor cables, pump connections, and oil well heating cables.
Electronics: Layer insulation for H-class transformers, welding machine stator coils, capacitors; protection for high-temperature wire cores.
Industrial Equipment: Anti-corrosion coating for chemical pipelines, low-friction surfaces for dryer conveyors/rollers.
Specifications & Customization
Standard sizes (e.g., width: 25mm/125mm; length: 10yd/36yd). Custom thicknesses available (0.10mm, 0.18mm, etc.).
Transparent/white/brown color options. Pressure-sensitive adhesive (silicone or acrylic) or adhesive-free pure-film versions for varied bonding needs.
Why Choose This Alternative?
Matches 3M’s performance benchmarks (breakdown voltage, temperature ratings) while reducing costs through localized production. Backed by equivalent UL certification – the cost-efficient choice for industrial maintenance and manufacturing.
